Set Up
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start fires around dry vegetation.
A spark arrestor may be required.
The operator should contact local fire agencies for laws or regulations
relating to fire prevention requirements.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Power Switch
of the equipment to its “OFF” position, wait for the engine to cool, and unplug the spark
plug wire(s) before assembling or making any adjustments to the equipment.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagrams near the end of this manual.

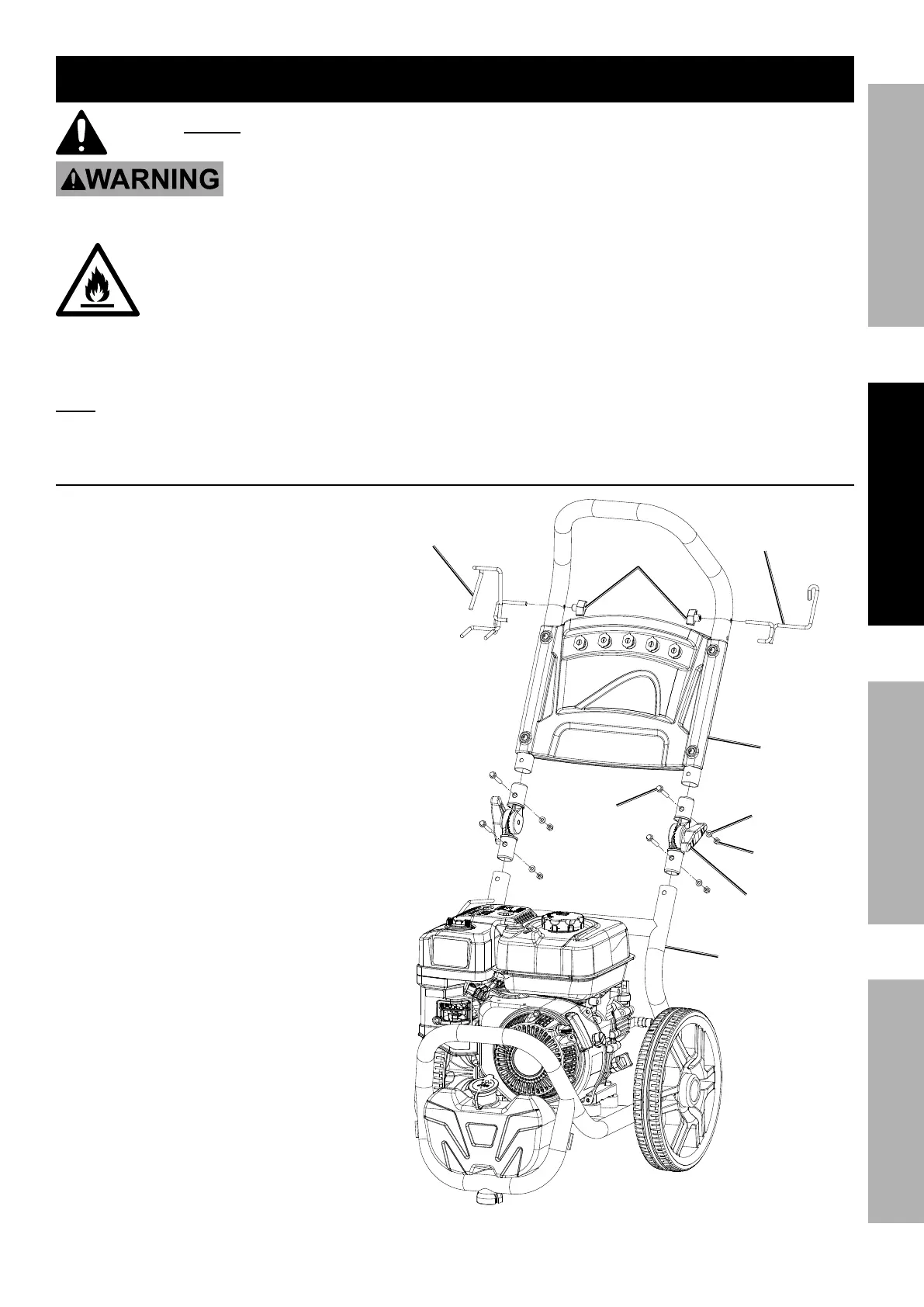

Assembly
1. Attach Knob Assemblies
to Frame using Bolts (19),
Washers (20) and Nuts (21).
2. Attach Handle to Knob Assemblies
using Bolts (19), Washers
(20) and Nuts (21).
3. Attach Spray Gun Holder
using Knob (38).
4. Attach Pressure Hose Hook
using Knob (38).
Spray Gun
Holder
Pressure
Hose Hook
Handle
Knobs
(38)
Bolt
(19)
Washer
(20)
Knob
Assembly
Frame
Nut
(21)
