Predator 63404 - Component Maintenance

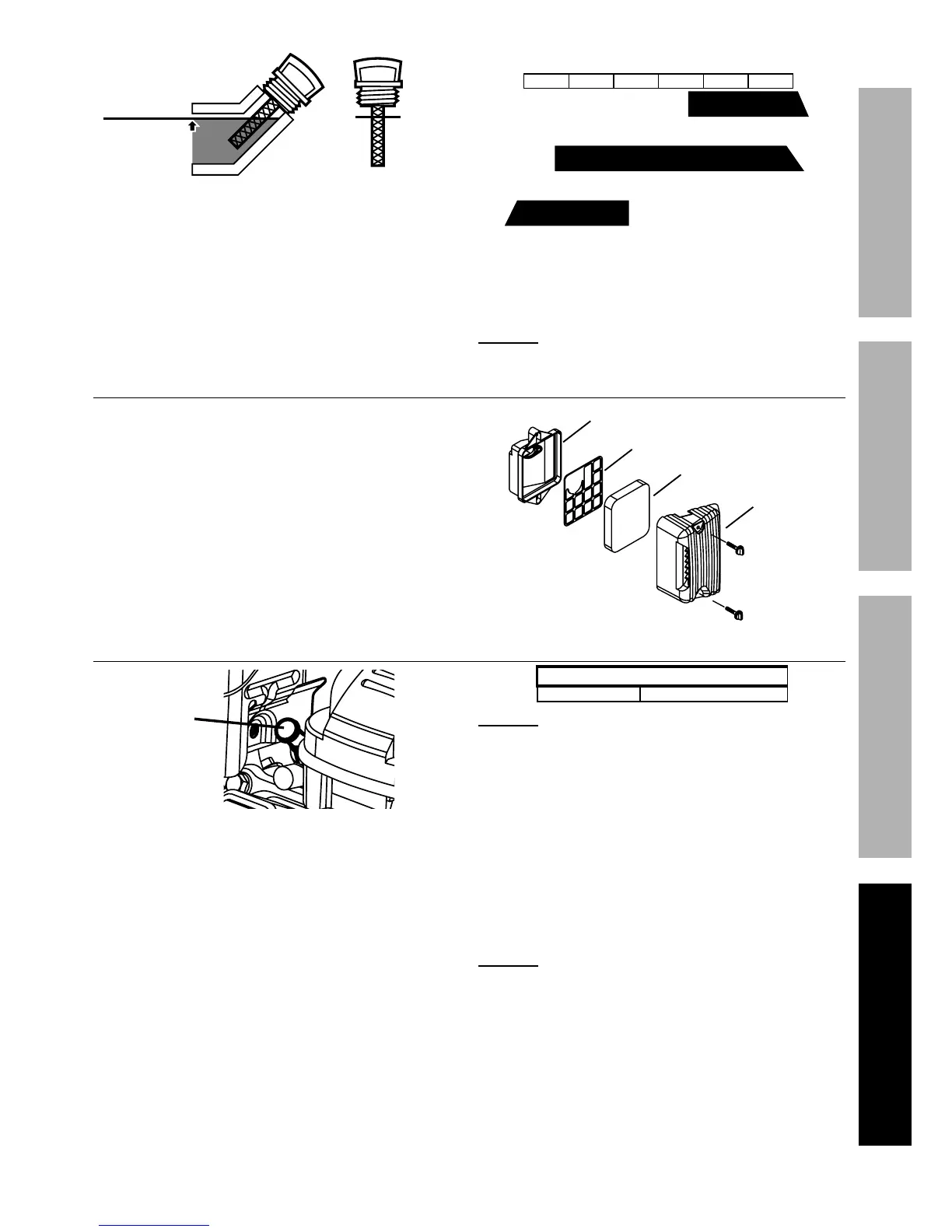

Page 15F*+&<(=:$#='B&T;("<#*$"E&@B('"(&='BB&NOPPPOPRROUVSV8ITEM 63404
7-F6523[6D-503.4-0.56.-.,6 765![
Full level
Full level
7. Add the appropriate type of oil until the oil level is at
the full level. SAE 10W-30 oil is recommended for
general use.
The SAE Viscosity Grade chart shows other
viscosities to use in different average temperatures.
Ng\Ofg
fg
U\Ofg
-20 0 20 40 60 80 100°F
7-6&C#"=*"#<A&X+')("
-J(+'%(&*;<)**+&<(?@(+'<;+(
8. Thread the dipstick back in clockwise.
.350,6K&&H*&$*<&+;$&<:(&($%#$(&G#<:&<**&B#<<B(&*#B8
6$%#$(&G#BB&$*<&"<'+<&G#<:&B*G&*+&$*&($%#$(&*#B8
-#+&F#B<(+&6B(?($<&4'#$<($'$=(
1. Remove the air filter cover and the air filter elements
and check for dirt. Clean as described below.
2. Wash the element in warm water and mild
detergent several times. Rinse. Squeeze out
excess water and allow it to dry completely.
Soak the filter in lightweight oil briefly,
then squeeze out the excess oil.
3. Install the cleaned filter. Secure the
Air Filter Cover before use.
Filter Cover
Base of Filter Casing
Screen
Filter
7@'+d&[B;%&4'#$<($'$=(
1.
7@'+d&
[B;%&
,'@
Disconnect spark plug cap from end of plug.
Clean out debris from around spark plug.
2. Using a spark plug wrench, remove the spark plug.
3. Inspect the spark plug:
If the electrode is oily, clean it using a clean, dry rag.
If the electrode has deposits on it, polish it using
emery paper. If the white insulator is cracked or
chipped, the spark plug needs to be replaced.
D(=*??($)()&7@'+d&[B;%
TORCH
®
E4RC
.350,6K Using an incorrect spark plug
may damage the engine.
4. When installing a new spark plug, adjust
the plug’s gap to the specification on the
Specifications chart. Do not pry against the
electrode, the spark plug can be damaged.
5. Install the new spark plug or the cleaned spark plug
into the engine. Gasket-style: Finger-tighten until
the gasket contacts the cylinder head, then tighten
about 1/2-2/3 turn more.
Non-gasket-style: Finger-tighten until
the plug contacts the head, then
tighten about 1/16 turn more.
.350,6K Tighten the spark plug properly.
If loose, the spark plug will cause the engine to
overheat.
If overtightened, the threads in the
engine block will be damaged.
6. Apply dielectric spark plug boot protector
(not included) to the end of the spark
plug and reattach the wire securely.
