Page 7For equipment technical questions, please call 1-888-866-5797.ITEM 64931
SAFETYSETUPOPERATIONMAINTENANCE
Set Up
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY: Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start fires around dry vegetation.
A spark arrestor may be required.
The operator should contact local fire agencies for laws or regulations
relating to fire prevention requirements.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Power Switch
of the equipment to its “OFF” position, wait for the engine to cool, and unplug the spark
plug wire(s) before assembling or making any adjustments to the equipment.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagrams near the end of this manual.

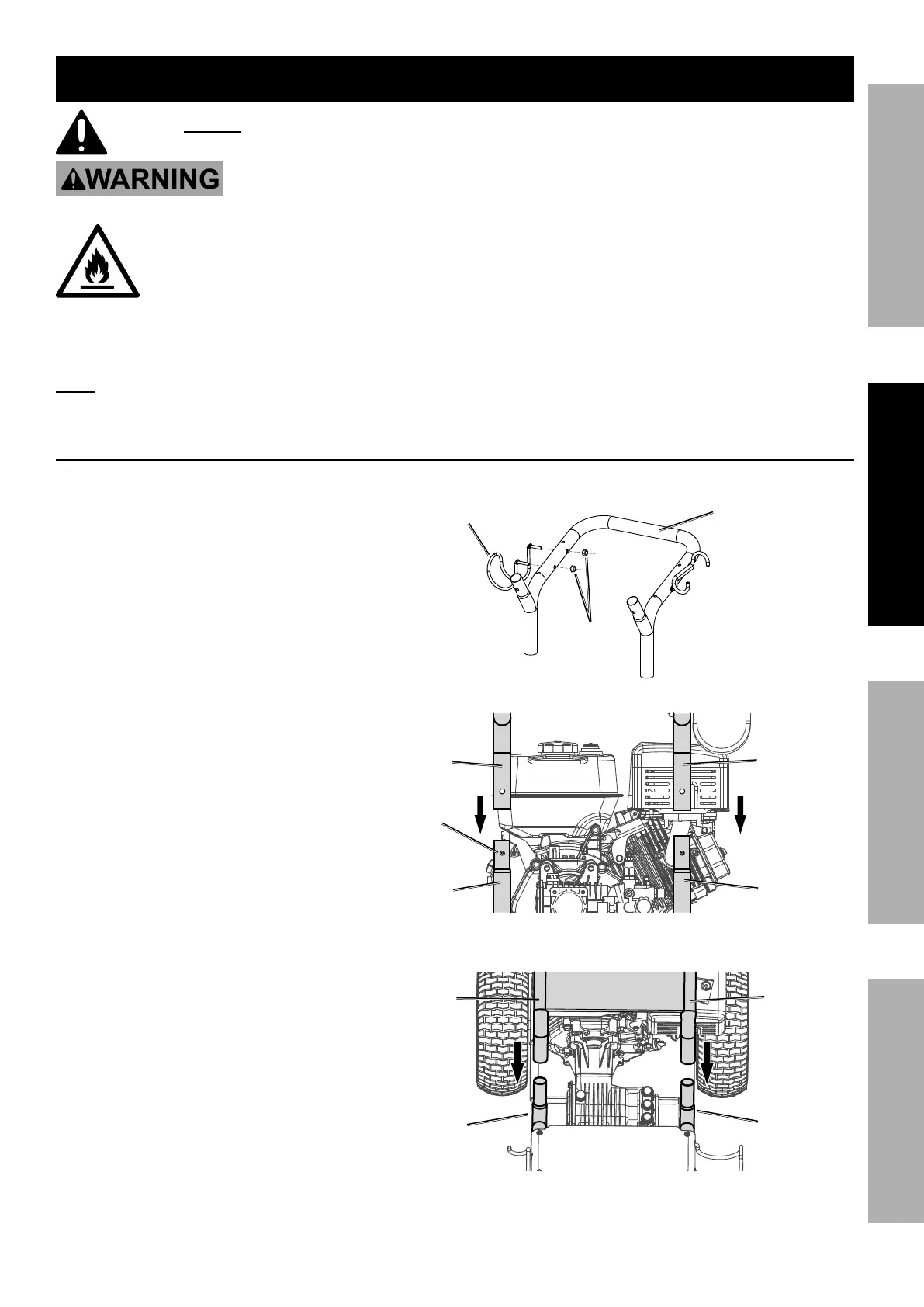

Assembly
1. Attach the High Pressure Hose
Hanger (15) to the Upper Frame
Handle (14) using two Lock
Nuts (13). Tighten securely.
2. Slide the Upper Frame Handle (14)
over the two upright tubes on
the Frame (2) and press down
until Handle is seated and two
Detent Pins snap into place.
3. Slide the Front Frame Handle (20)
over the two angled tubes on the
Upper Frame Handle and press
down until Handle is seated and
two Detent Pins snap into place.
Upper
Frame
Handle
Upper
Frame
Handle
Front
Frame
Handle
Front
Frame
Handle
Detent
Pin
Upper
Frame
Handle
Upright
Frame
Tube
Upper
Frame
Handle
Upright
Frame
Tube
Upper Frame
Handle
High Pressure
Hose Hanger
Lock
Nut
To Next Page
