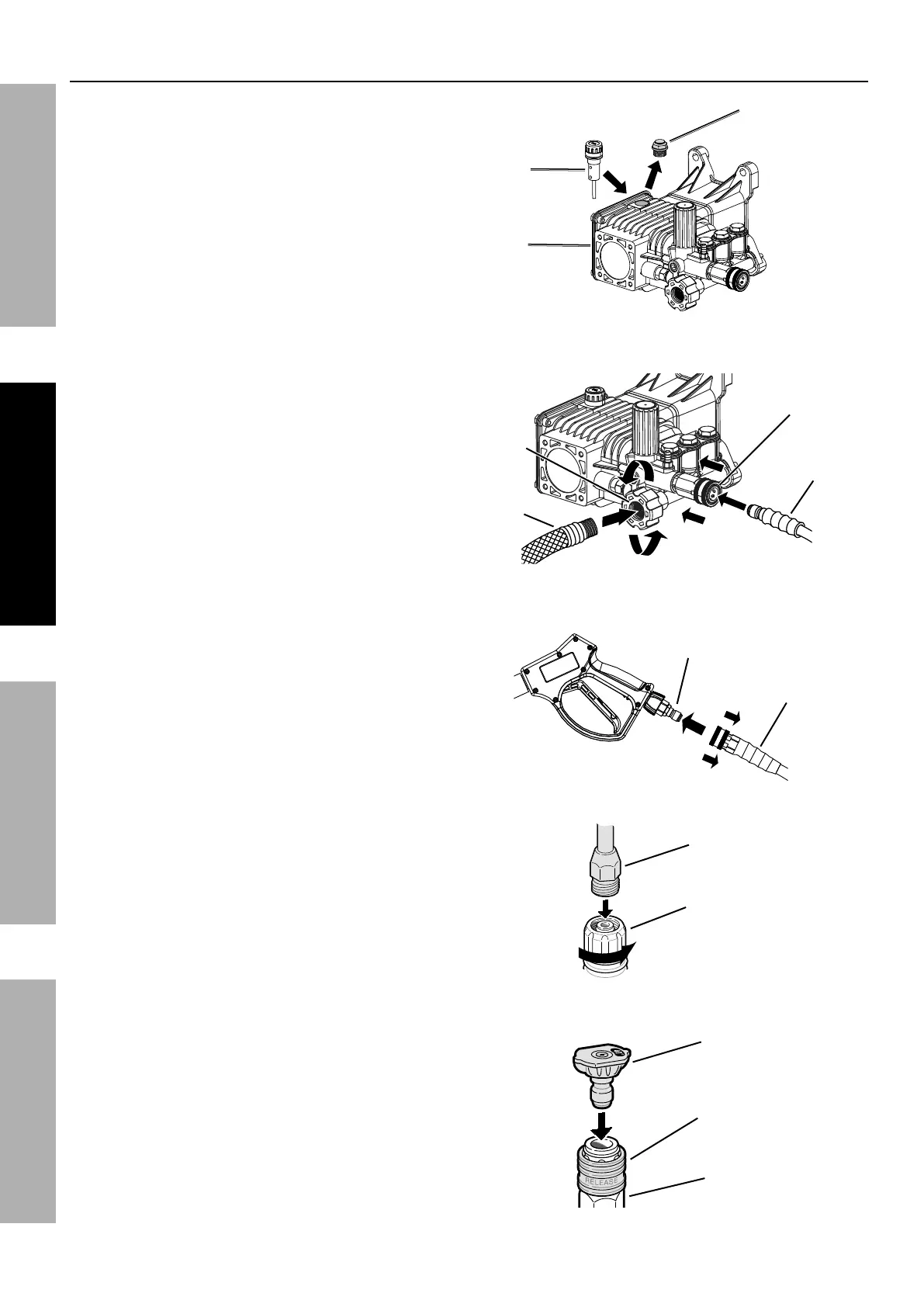

4. Remove the red shipping plug
from the Pump (22) and replace
with the included Pump Dipstick.
5. Connect the Pressure Hose (26) to the
Outlet Fitting on the Pump (22) by pulling back
the quick connect collar and pushing the Hose
into the fitting. Connect the water supply hose
to the water inlet connection on the Pump
and hand-tighten the Inlet Fitting. The water
source must be able to provide a minimum of
five gallons of clean, cold water per minute
at 40 PSI. Only use a 5/8″ inner diameter (or
larger) hose that is rated to meet this capacity.
6. Connect the Pressure Hose to the handle of
the Spray Gun (25) by pulling back the quick
connect collar on the Hose and pushing the Hose
onto the handle fitting. Squeeze the Trigger
for one minute to purge air from the system.
7. Remove the protective cap on the Wand (24)
inlet. Insert the Wand into the Spray Gun
tip and firmly hand-tighten the nut.
8. Attach the desired Nozzle to the Wand by pulling
back the quick connect collar and pushing the
Nozzle onto the end of the Wand. Make sure the
quick connect collar locks the Nozzle in place.
Pump
Dipstick
Pump
Shipping Plug
Inlet
Fitting
Outlet
Fitting
Water
Supply
Hose
Pressure
Hose
Handle
Fitting
Pressure
Hose
Spray
Gun Tip
Wand
Quick Connect
Collar
Wand
Nozzle
Assembly (continued)
To Next Page
