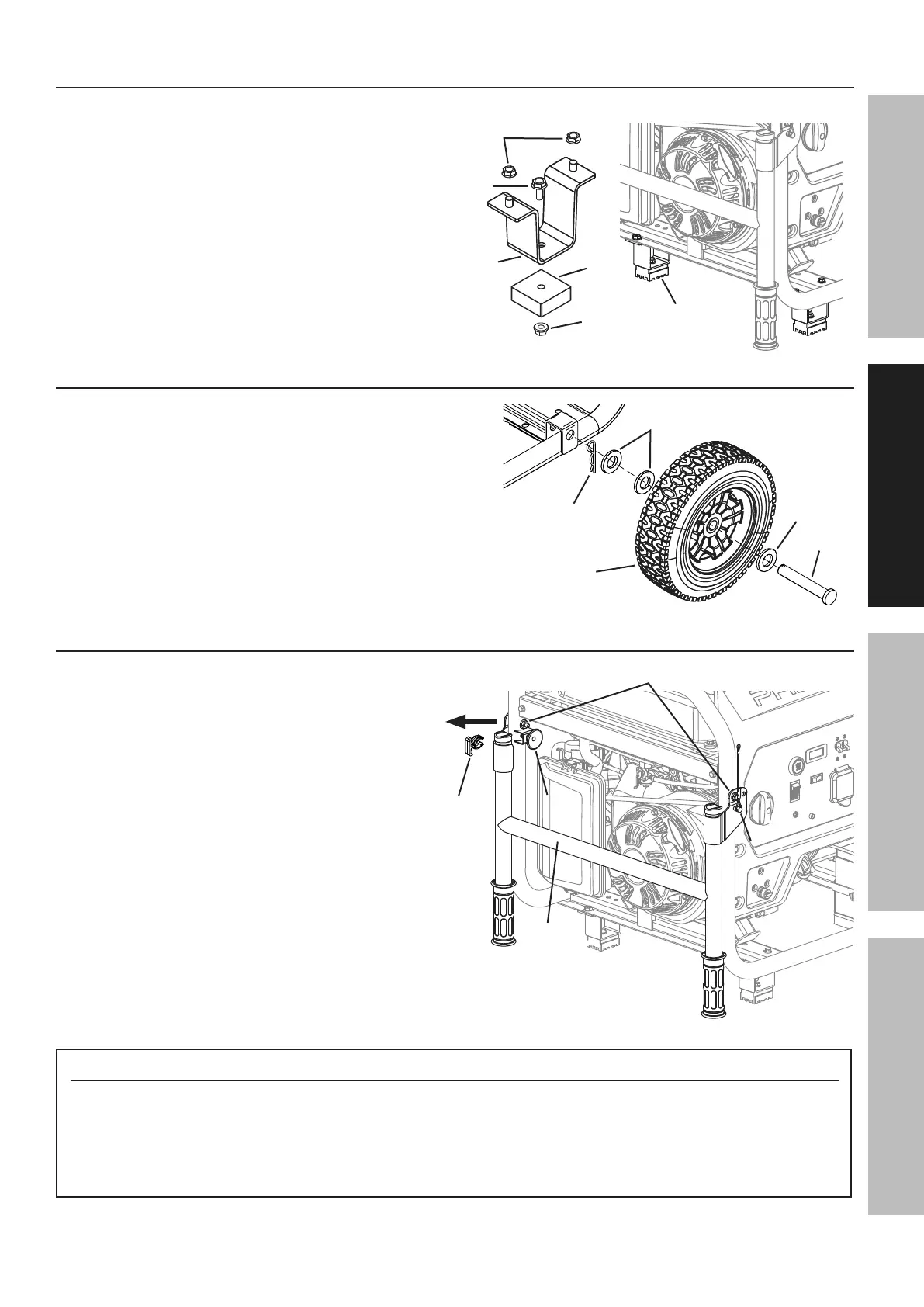

Foot Assembly
The Feet are installed on the air filter side of the Generator.
1. Prepare a set of 4 x 4 blocks on level ground. With
assistance, place the Generator on the blocks.
2. Secure one Foot (168) onto a Foot Bracket (169)
using a Hex Bolt (171) and Hex Flange
Nut (158). Repeat for other Foot and Bracket.
3. Align studs on Foot Bracket assembly with
holes on bottom of Generator frame and secure
in place with two Hex Flange Nuts (170).
Repeat for other Foot Bracket assembly.
Wheel Assembly
1. Slide one Wheel (174) and two Flat Washers (173)
onto a Wheel Axle (172), one Washer on each side
of Wheel.
2. Insert the Wheel Axle through the bracket on
the bottom of the Generator frame. Place
a third Flat Washer onto the Axle and
secure all in place with an R-Clip (175).
3. Repeat steps 1 and 2 for other Wheel assembly.
Handle Assembly
The Handle is installed on the air filter side of the Generator.
1. Align the holes in the brackets on
the Handle (177) with the holes
on the Generator frame.
2. Fasten in place using a Step Bolt (180)
and Flange Lock Nut (181), one
set on each side of Handle.
3. Remove and discard the yellow shipping clip
located on the Handle Release Pin (178).
4. Insert the Locking Pin (183) into the hole on the right
side of the Generator frame.
183183
177
178178
180, 181
177177
Shipping
Clip
168
171
169
170
158
Foot
Assembly
in place
174
173
173
172
175
Handle Operation
1. To unfold the Handle for use, first remove the
Locking Pin, then pull out the Handle Release
Pin and lift the Handle up. With the Handle lifted
into position, release the Handle Release Pin,
then insert the Locking Pin back into place.
2. To fold the Handle down after use, first remove
the Locking Pin, then pull out the Handle Release
Pin and push the Handle down. With the Handle
in position, release the Handle Release Pin,
then insert the Locking Pin back into place.
