Disassembly Procedures 1-19
USB Board Removal 0
Prerequisite:
SSD Modules Removal
1. Disconnect the eDP cable from the mainboard connector (A) (Figure 1-23).

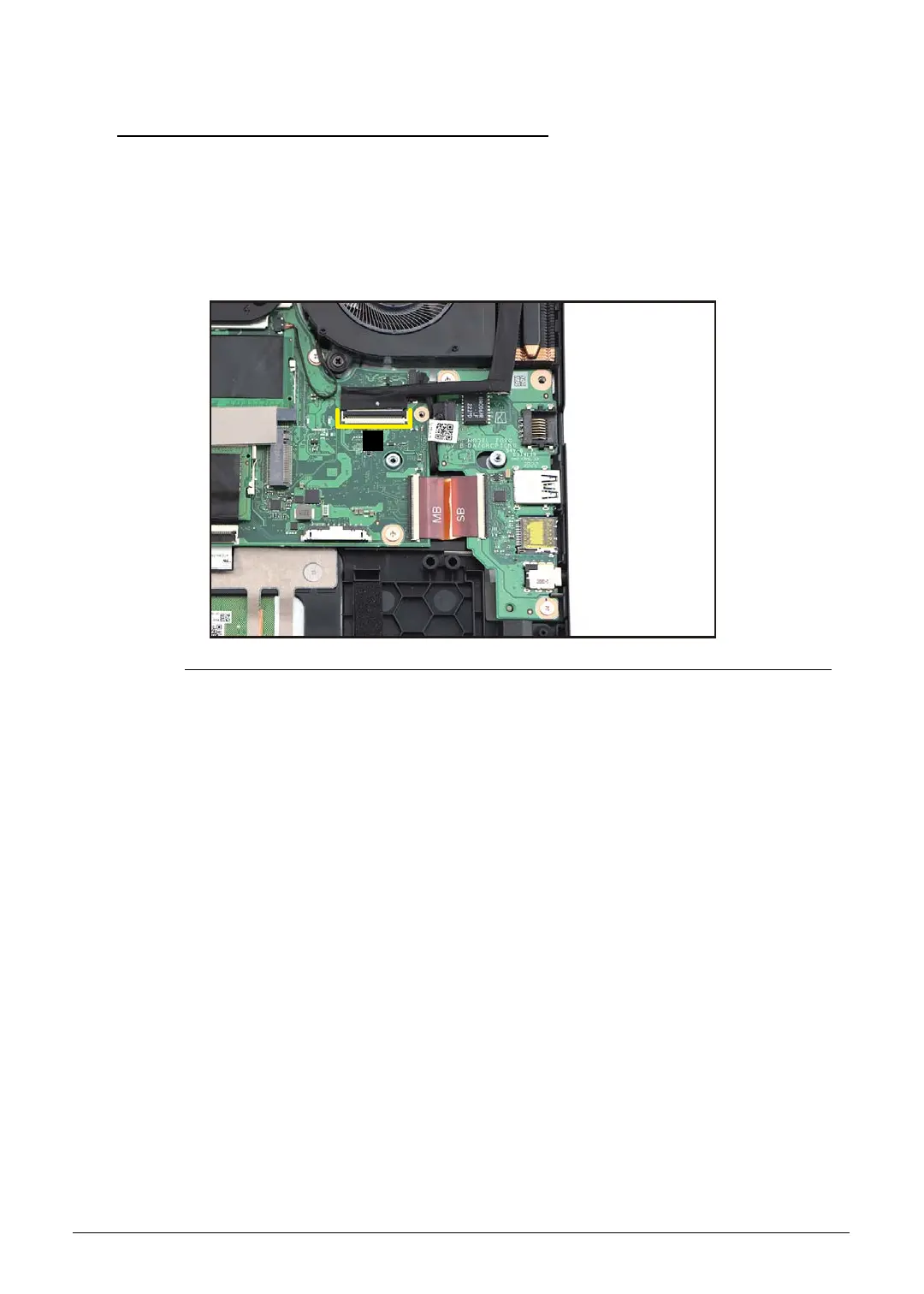

Figure 1-23. USB Board Removal
2. Disconnect the USB power cable (B) from the mainboard and USB board connectors.
Then carefully unroute the cable from the gap between the mainboard and USB
board (Figure 1-24). Then remove the IO power cable.
3. Disconnect the USB board FPC (C) from the mainboard and USB board connectors
(Figure 1-24). Then remove the FPC.
To Next Page
