Disassembly Procedures 1-27
4. Using the screwdriver, push the guide pin (C) firmly to release it from the top
assembly (Figure 1-35).
5. Slide the touchpad module slightly to disengage it from the bottom latches (D), and
then remove the touchpad module (E) from the top assembly (Figure 1-35).

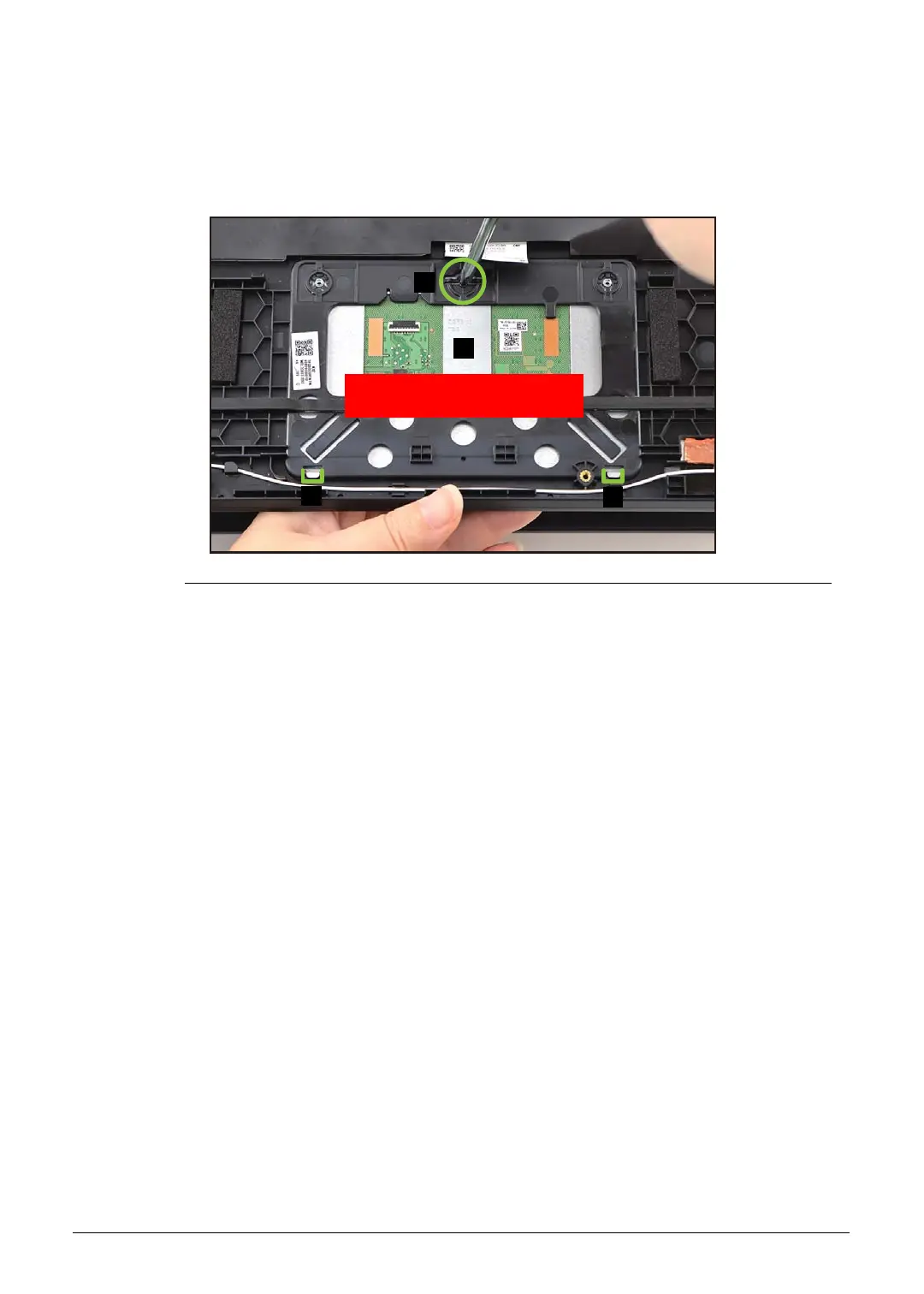

Figure 1-35. Touchpad Module Removal
E
C
D
D
WEEE Annex VII Component:
Touchpad Module
