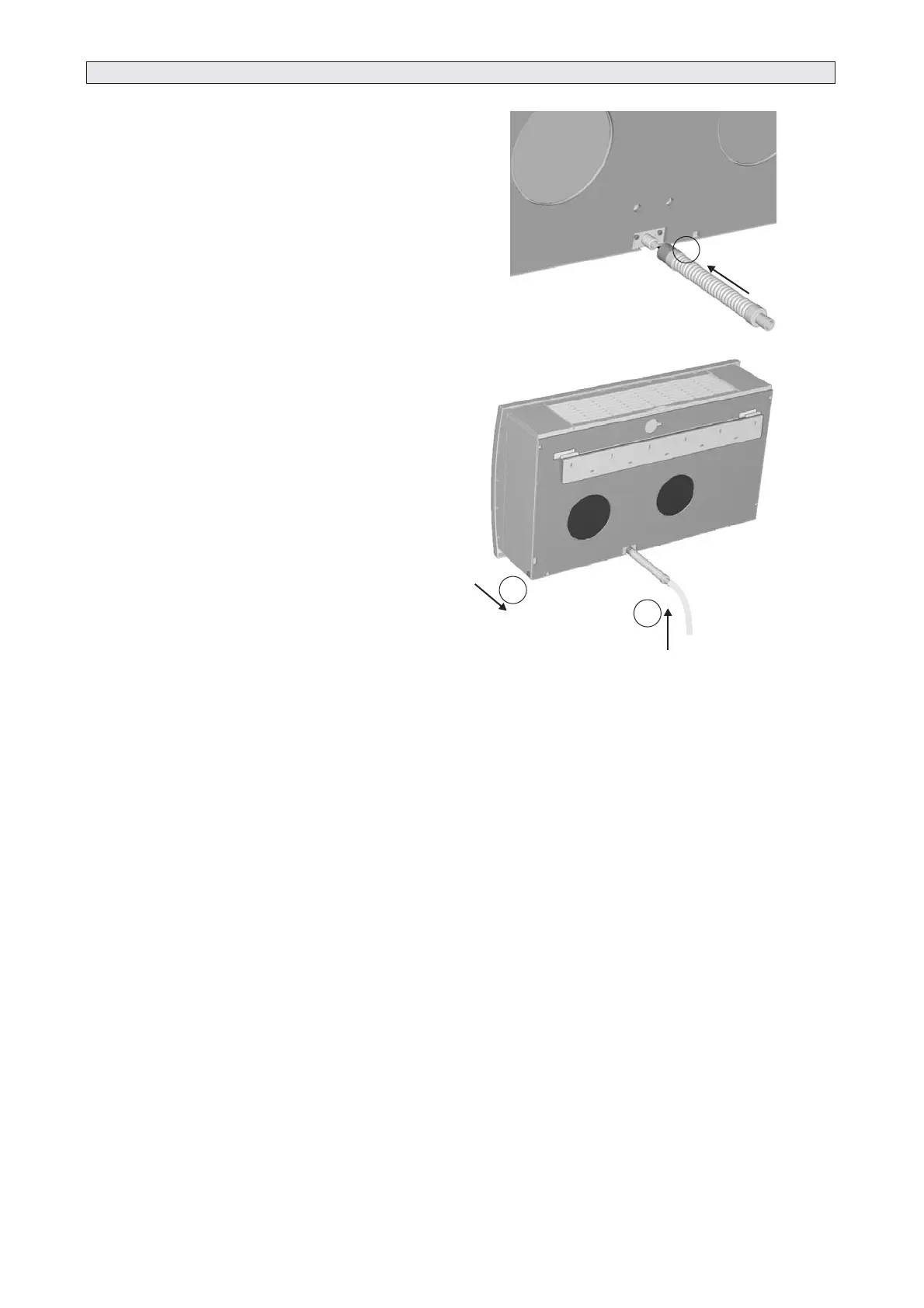

2.8 DRAINAGE LINE
To complete the drainage line fit the drainage pipe on
the drainage hole and push firmly into place (C).
A further extension pipe (D) with an
internal diameter of 16 mm can be fitted if necessary.
If the line drains into a vessel
(tank or other recipient), this container
should not be sealed and the drainpipe
should not remain immersed in the water.
Install the extension drain condensate(D) as required.
The drain should flow in a downwards
direction, as this is a gravity flow (E).
D
E
12
