Premier Mounts RTM-L - Optional Mounting Configurations

RTM-L
Installation Instructions Page 7

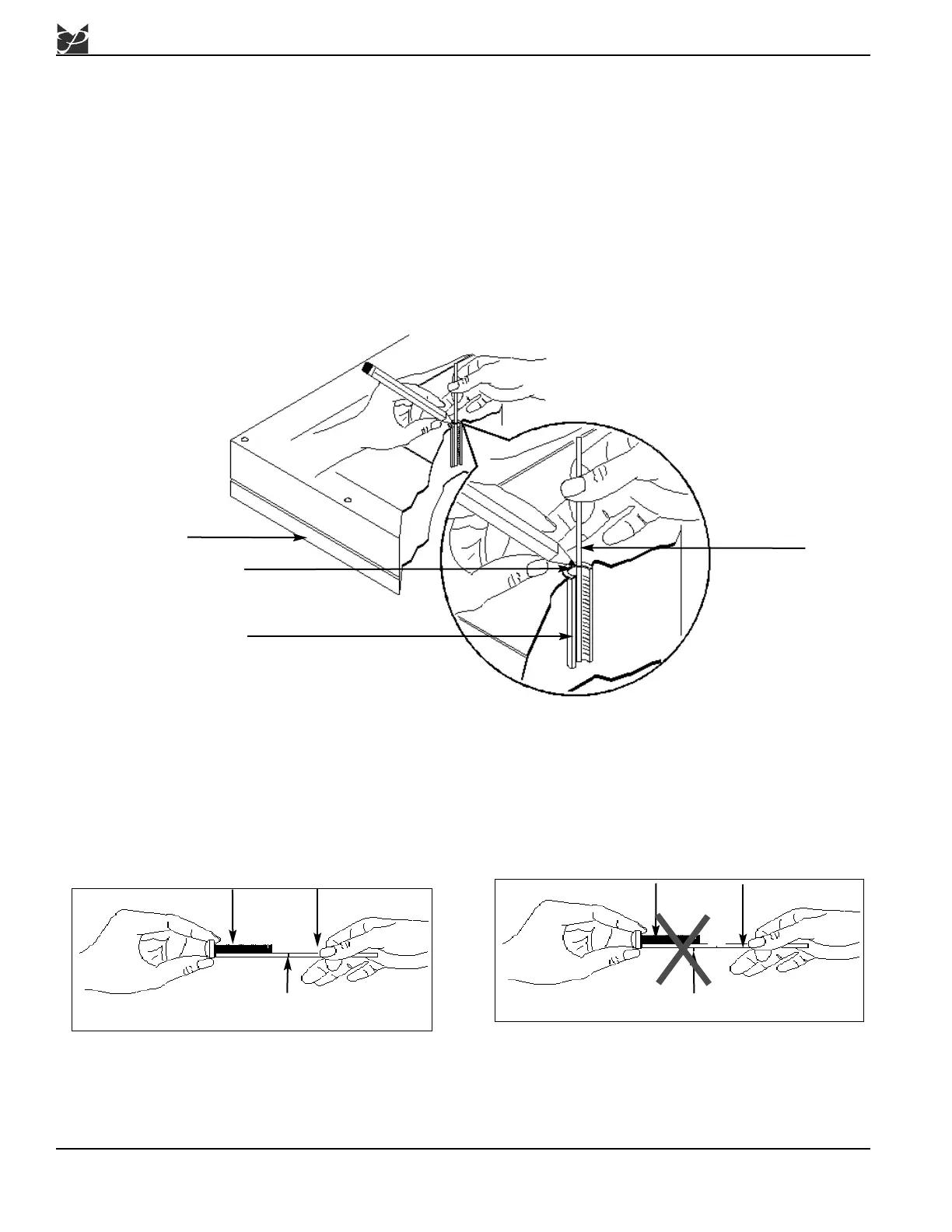

Thread Depth Indicator
1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel
to make sure the inserts measure the same full depth and mark it (Figure 1).
2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
3. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find
one that comes closest to your mark without going past.
4. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
Inverted Flat Panel
Display
Marking the Depth
Thread
Depth
Indicator
Threaded Insert
Figure 1
Screw
Thread Depth
Indicator
Marking
Screw
Thread Depth
Indicator
Marking
Figure 2 Figure 3
