2.4 Installing the unit (Continued)
PAGE
7
Installation
GUIDE
Step 2:(Continued)

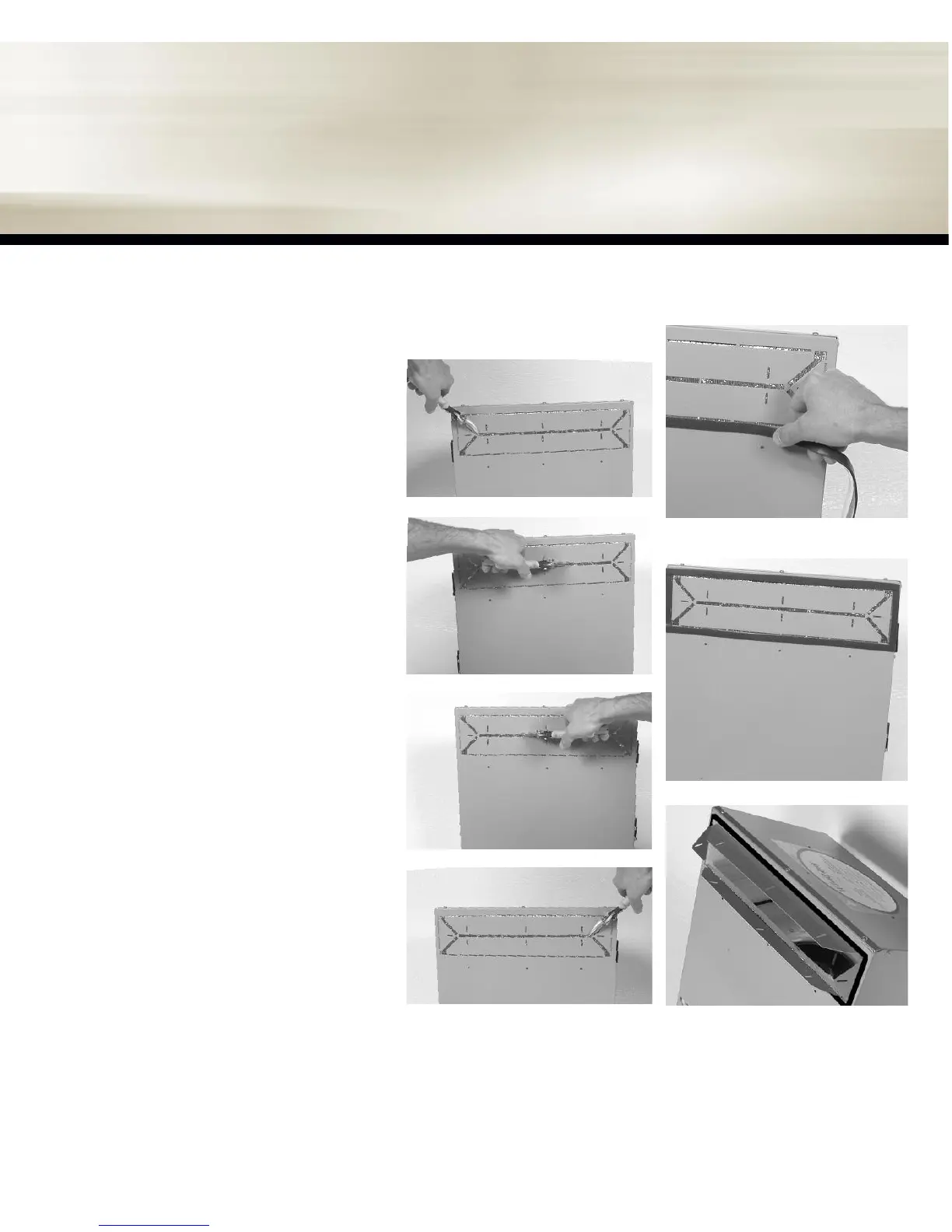

Cut the four metal tabs to release the
mounting flairs for the inlet and outlet ports.
figure 2.2j-
Bend tabs outward approxima te ly
90 degrees.
figure 2.2h -
Apply plenum seal tape all
around both openings on the back of the unit.
figure 2.2i
Step 2:(Continued)
figure 2.2d
figure 2.2e
figure 2.2f
figure 2.2g
Tips
to installer
Interlocking the HEPA filtration unit with the
forced air heating / cooling system is possi-
ble using an auxiliary relay. Refer to page 11
of this guide for example.
Please consult local authorities to find out
whether the installation of electrical
products requires the services of a certified
technician or electrician.
