Premier WP-2 LCV - System Diagram and Parts List; Filtration System Components

Page 7

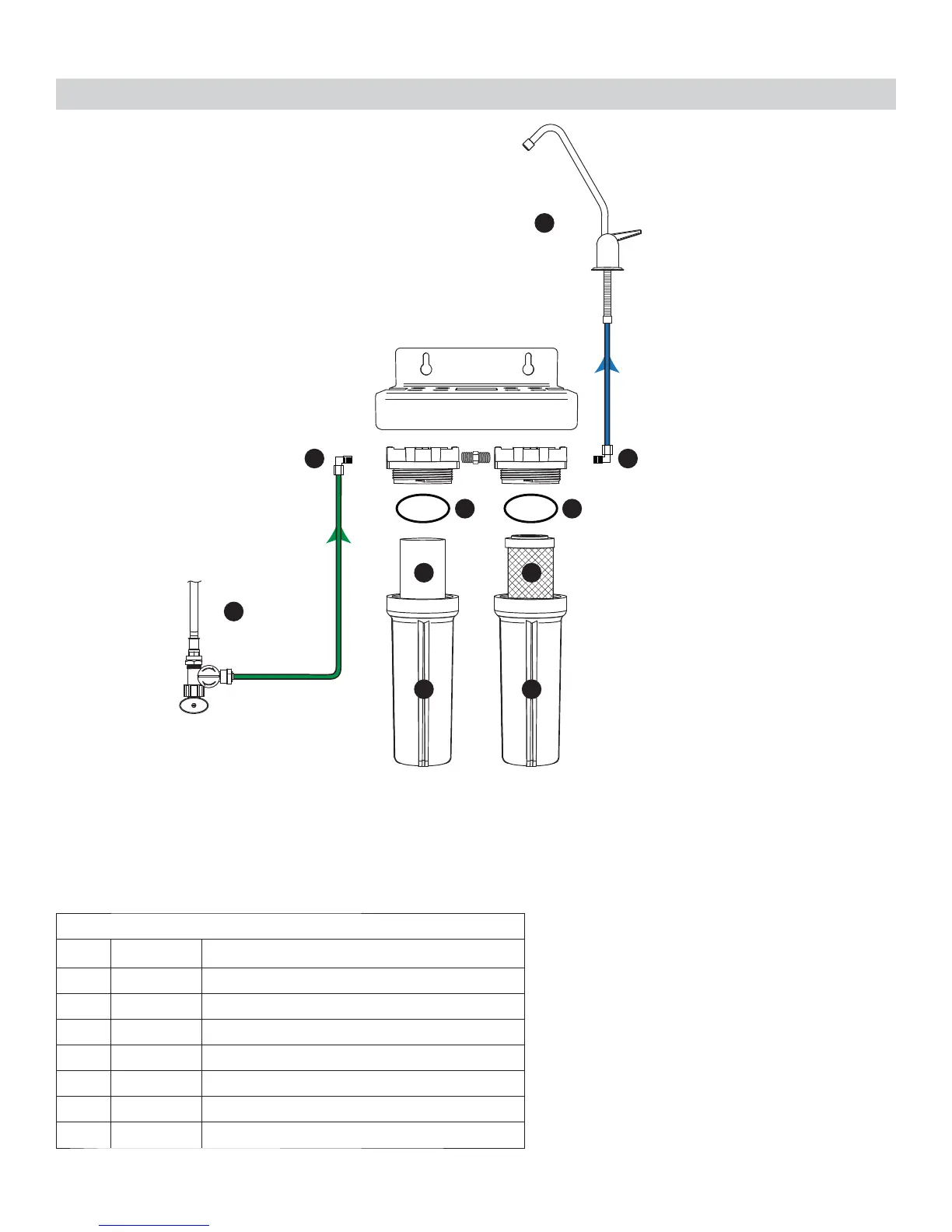

System Diagram
COLD WATER
ANGLE-STOP
(SUPPLY)
ADAPT
-A-
VALVE
A
SEDIMENT
FILTER
CARBON
BLOCK
FF
1/4” GREEN
TUBE
1/4” BLUE
TUBE
FAUCET
D
G G
E E
CB
Parts List
Item Part# Description
A WP560080 ADAPT-A-VALVE
B WP104017 SEDIMENT FILTER
C WP101014 LCV CARBON BLOCK FILTER
D WP116023 CHROME NON AIR-GAP FAUCET
E WP500017 FILTER HOUSING ASSEMBLY(LID & BOWL)
F WP113029 O-RING
G WP125034 1/4”C X 1/4”MPT ELBOW
