Premium PPA9004J - Parts Identification; Front Side Components; Back Side Components

5
WARNING
Length of exhaust pipe according to the machine features, please don’t replace or lengthen it
freely, otherwise errors will be easily caused.
NOTE: extreme length of unfolding exhaust pipe is 1500mm, please shorten the length as
much as possible and keep it level as much as possible when installing
PARTS NAME

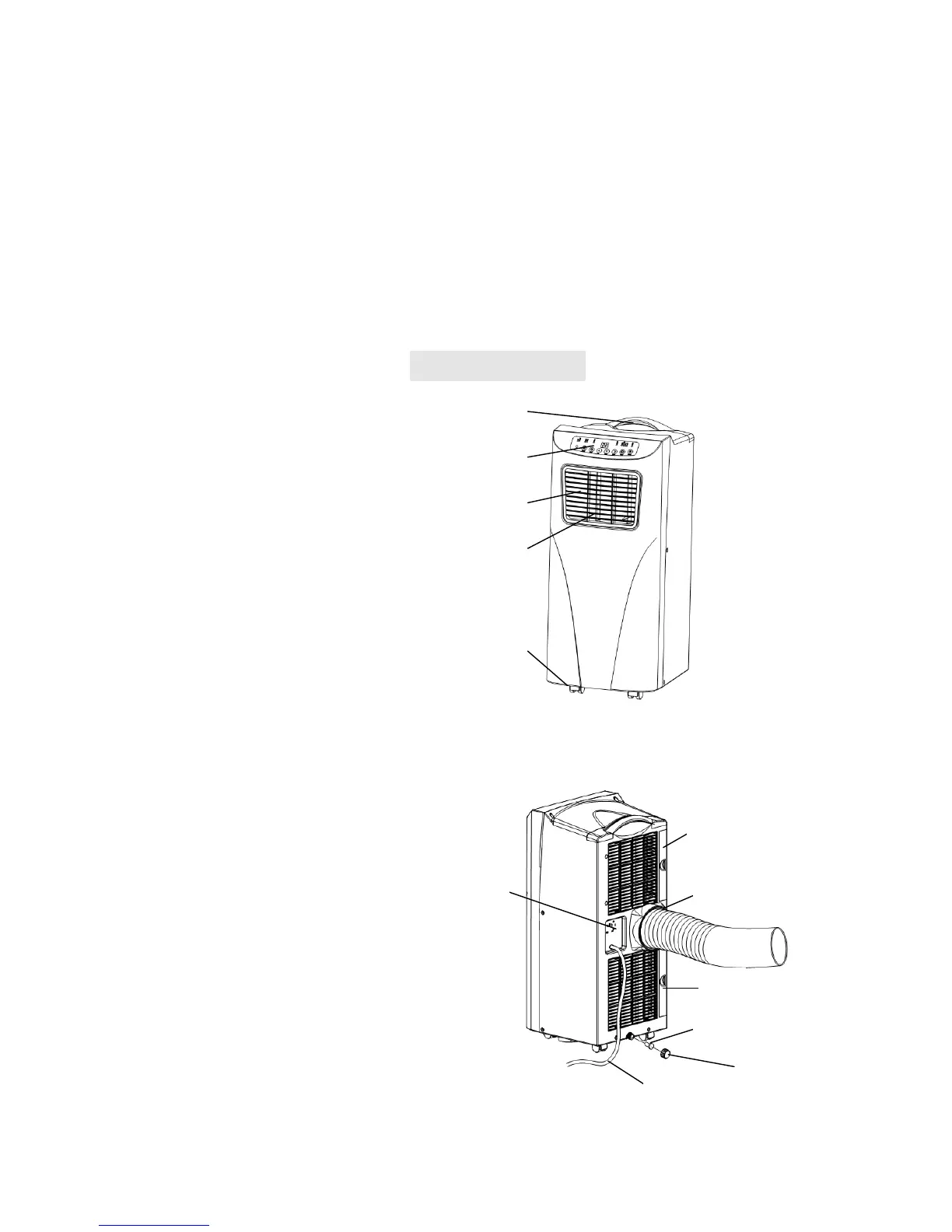

FRONT SIDE(fig.5)
1. Handle
2. Control Panel
3. Air-outlet
4. Fan blade
5. Castor
BACK SIDE(fig.6)
6. Filter frame upper
7. Exhaust Connector
8. Power Cord Location
9. Filter frame lower
10. Rubber plug
11. Plug cap
12.Power Cord
1
3
2
fig.5
6
7
8
9
10
11
12
4
5
