Hookup
Back Panel Connections
Quantum-series
Owner’sManual
请注意：
与任何音频输入设备一样，插入麦克风或乐器，或者打开或关
闭幻象电源，都会在
Quantum
系列音频接口的音频输出中，产生一个瞬
间的峰值。正因为如此，我们强烈建议，你在改变连接或打开或关闭幻
象电源之前，调低
channel trim
。这个简单的步骤，会使你的音频设备寿
命延长几年。

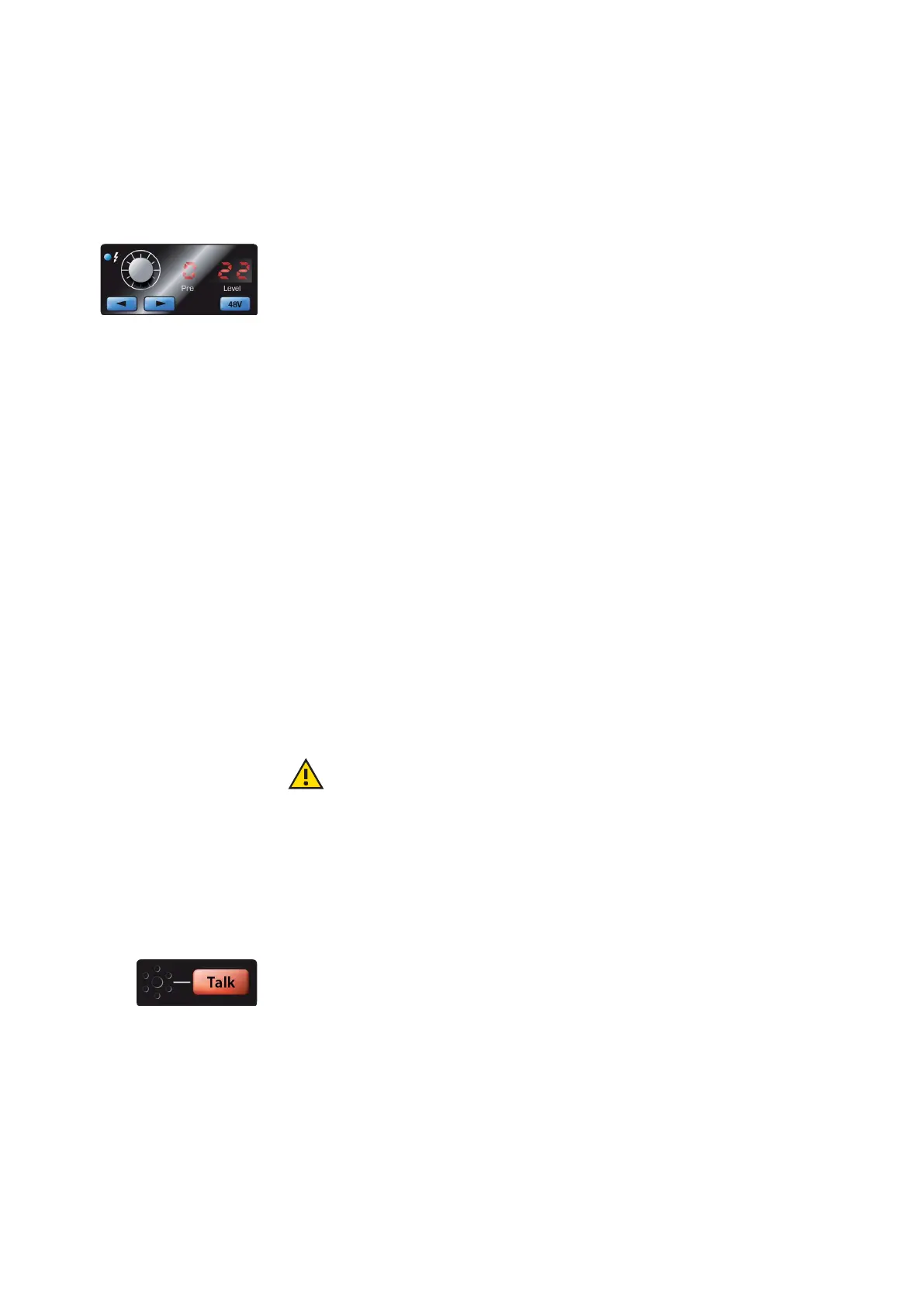

Preamp controls. These controls allow you to adjust the gain and enable phantom
power for every onboard microphone and instrument preamp.
Preamp controls.
这些控制允许你调整增益，并为每个板载的麦克风和乐器
前置放大器启用幻象电源。
•
Preamp Gain:
Use this control to adjust the level of microphone preamps
1-8/4 and instrument preamps 1 and 2. The display to the far right will show the
current trim level. This encoder is also used to change from +4dbu to -10dbv
when a line-level TRS jack is connected.
•
Next / Prev: Use these buttons to select the microphone preamp you wish to
control. The display to the right of the trim control will show which preamp is
currently being controlled.
•
48V: The Quantum-series interfaces provide 48V phantom power for each
microphone preamp. This feature can be individually enabled for each channel,
using this button. When 48V is active, the blue LED at the top of that channel’s
meters will illuminate.
•
Preamp Gain:
使用这个控制来调整
1-8/4
前置放大器电平，以及
1
和
2
麦
克风前置放大器。最右边的显示屏将显示当前的
trim
电平。当连接线级
TRS
接口时，这个编码器也用来从
+4dbu
变为
-10dbv
。
•
Next / Prev：使用这些按钮，选择你想控制的麦克风前置放大器。微调
控制右边的显示屏，将显示当前正在控制的前置放大器。
•
48V
：
Quantum
系列音频接口，为每个麦克风前置放大器提供
48V
幻象电
源。这个功能可以通过这个按钮，为每个通道单独启用。当48V激活时，
该通道仪表顶部的蓝色LED灯将亮起。
Warning:
Phantompoweris only requiredforcondensermicrophones and
canseverelydamage dynamic mics,especially ribbon mics.Therefore,switch
phantom power off for all channels where it is not required.
警示：幻象电源只对电容式麦克风有要求，会严重损坏动圈麦克风，特别是带状
麦克风。 因此，请关闭所有不需要幻象电源的通道的幻象电源。
XLR connectorwiring forphantompower:
幻象电源的
XLR
连接器接线：
Pin 1
= GND
Pin 2
= +48V
Pin 3
= +48V
Talkbackmicandcontrols(Quantum).Quantumfeaturesan onboardtalkback
microphone. Press the Talk button to patch the signal to the selected mixes. To
control the level of the onboard Talkback mic, select the “c”(Comm) channel in the
preamp control section and use the encoder to adjust the level.
PowerUser Tip: Talkback routing for Quantum is handled inside your DAW. It will show
up as an input stream in your DAWI/O set-up.
Talkbackmicandcontrols(Quantum). Quantum
具有一个板载的对讲麦克风。
按下 "Talk" 按钮，可以将信号接入到所选的混音中。要控制板载对讲麦克风
的电平，请在前置放大器控制部分选择
"c"
（
Comm
）通道，并使用编码器来
调整电平。
