Jazzy Elite Series www.pridemobility.com 15
HARDWARE
FOOT
PLATFORM
BRACKET
ANGLE
ADJUSTMENT
SCREW
V. COMFORT ADJUSTMENTS

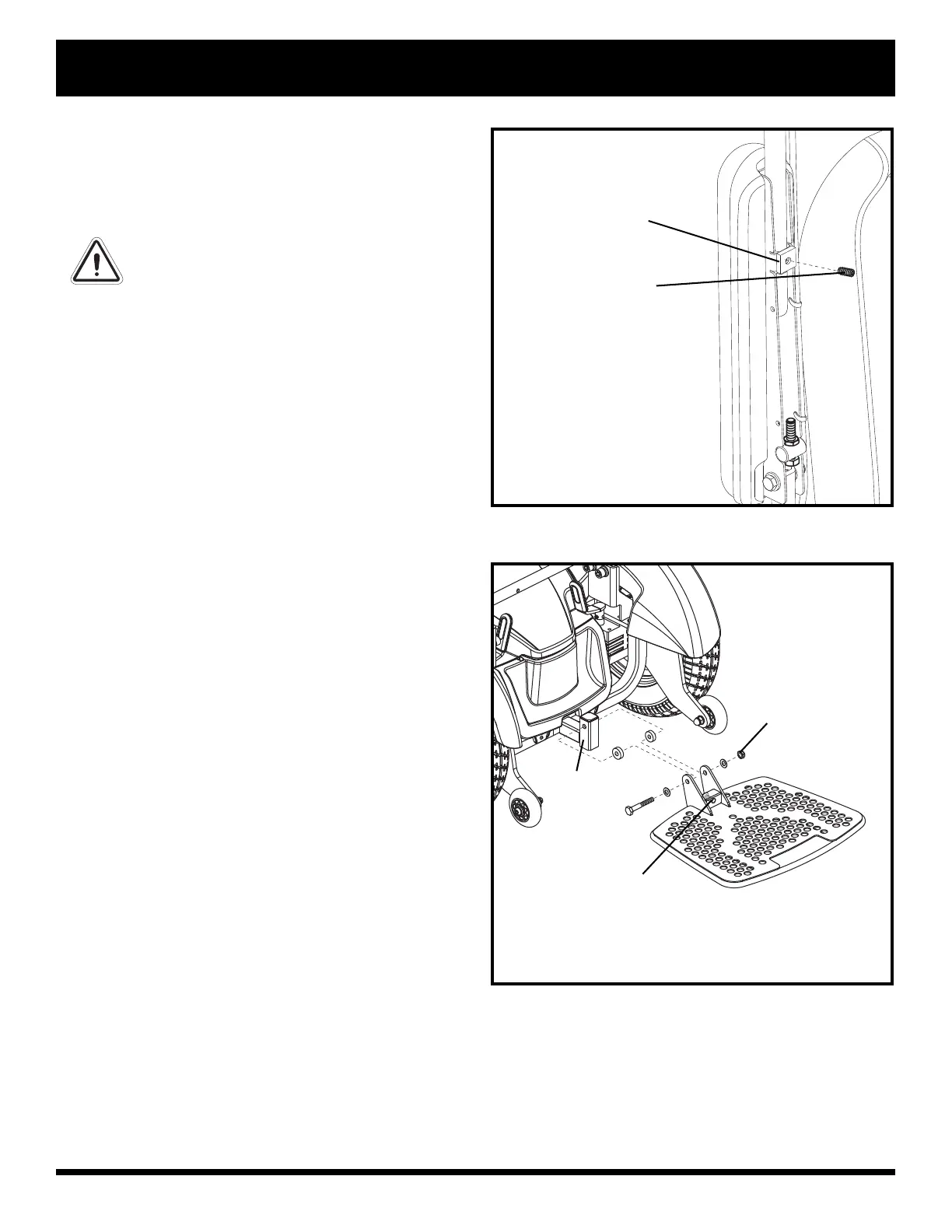

Figure 11. Underside of Armrest
Controller Position
You can move the controller in toward or out away
from the armrest, or change the position of the control-
ler for either left-hand or right-hand use.
WARNING! Do not place the controller
harness so that it can be pinched in
the seat frame or the power base
frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the
floor.
2. Loosen the setscrew on the controller bracket, if
equipped. See figure 11.
3. Slide the controller into or out of the armrest to the
desired position.
4. Tighten the setscrew to secure the controller.
To change the controller position:
1. Turn off the power to the controller.
2. Unplug the controller harness from the power base.
3. Cut the wire tie(s) that secure the controller harness
to the armrest and seat.
4. Flip up the armrest so it is perpendicular to the
floor.
5. Loosen the setscrew on the controller bracket.
6. Slide the controller out of the armrest.
7. Loosen the setscrew in the other armrest.
8. Place the controller in the other armrest.
9. Tighten the setscrew to secure the controller.
10. Route the controller harness along the seat frame
and secure with wire ties. See figure 7.
11. Plug the controller connector into the power base.
See figure 2.
Foot Platform Position
You can adjust the angle of the foot platform.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the angle
adjustment screw. See figure 12.
2. Turn the angle adjustment screw to raise or lower
the front of the foot platform.
Figure 12. Foot Platform Adjustment
CONTROLLER
BRACKET
SETSCREW
