16 www.pridemobility.com US Jazzy 1113/Rev I/Feb03
IV. THE JAZZY 1113

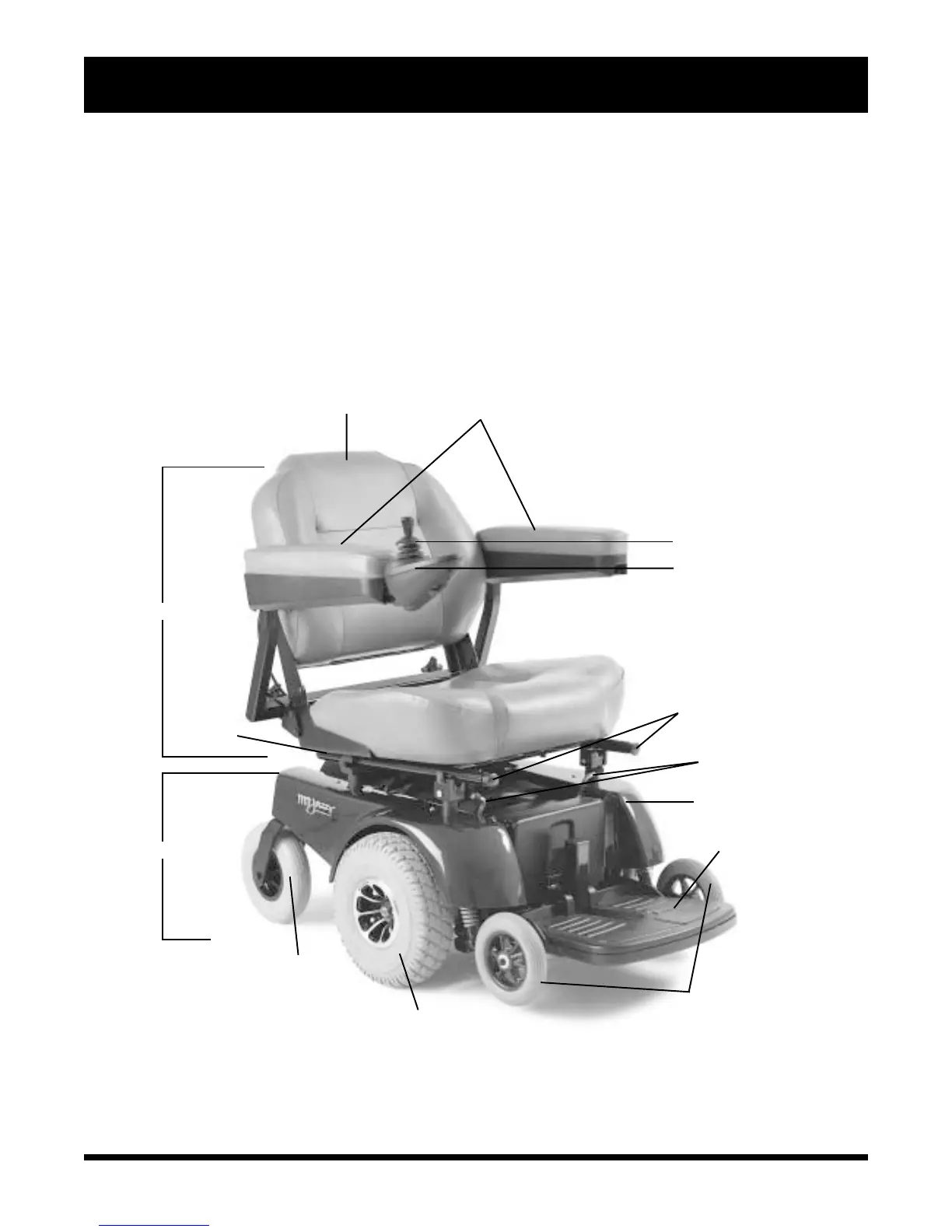

Figure 1b. The Jazzy 1113
SEAT
CONTROLLER
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
FOOTREST
CASTER WHEEL
DRIVE WHEEL
SEAT
FRAME
SEAT RELEASE BUTTONS
JOYSTICK
POWER BASE ASSEMBLY
SEAT ASSEMBLY
FREEWHEEL LEVERS
Your Jazzy has two main assemblies: the seat and the power base. See figure 1b. There are a variety of seating
options that are designed to accommodate most users. Typically, the seating system includes the armrests, the
seatback, the seat base, and the controller. Your Jazzy seat may also have some optional accessories attached to
it such as a basket, a cane/crutch holder, or a cup holder. See XI. Optional Accessories in this manual.
The power base is the heart of the Jazzy 1113. The power base assembly includes two drive wheels, two anti-tip
wheels, two caster wheels and harness connectors. See figures 1b, 2, and 3.
