3. Remove the ball detent pin that secures the foot plat-
form to the frame. See figure 25.
4. Lift off the foot platform.
5. Locate the battery quick disconnects on the frame
and disconnect both of them. See figure 34.
6. Remove the batteries from the power base.
7. Disconnect the wiring harness from each battery.
8. Reinstall the wiring harnesses on each battery. Make
sure that you connect the red wire to the positive (+)
battery terminal and the black wire to the negative (-)
battery terminal.
WARNING! Make sure you tighten the
fasteners so that the connections are
secure.
9. Place the batteries back into the power base.
10. Connect the battery quick disconnects according the
to battery wiring diagram label. See figure 35.
11. Reinstall the foot platform.
When to See Your Authorised Pride Dealer for
Service
The following symptoms could indicate a serious prob-
lem with your power chair. If necessary, contact your
authorised Pride Dealer. When calling, have the model
number, serial number, nature of the problem and the
trouble code if available.
Motor noise
Frayed harnesses
Cracked or broken connectors
Uneven wear on any of the tyres
Jerky motion
Pulling to one side
Bent or broken wheel assemblies
Does not power up
Powers up, but does not move
VII. CARE AND MAINTENANCE

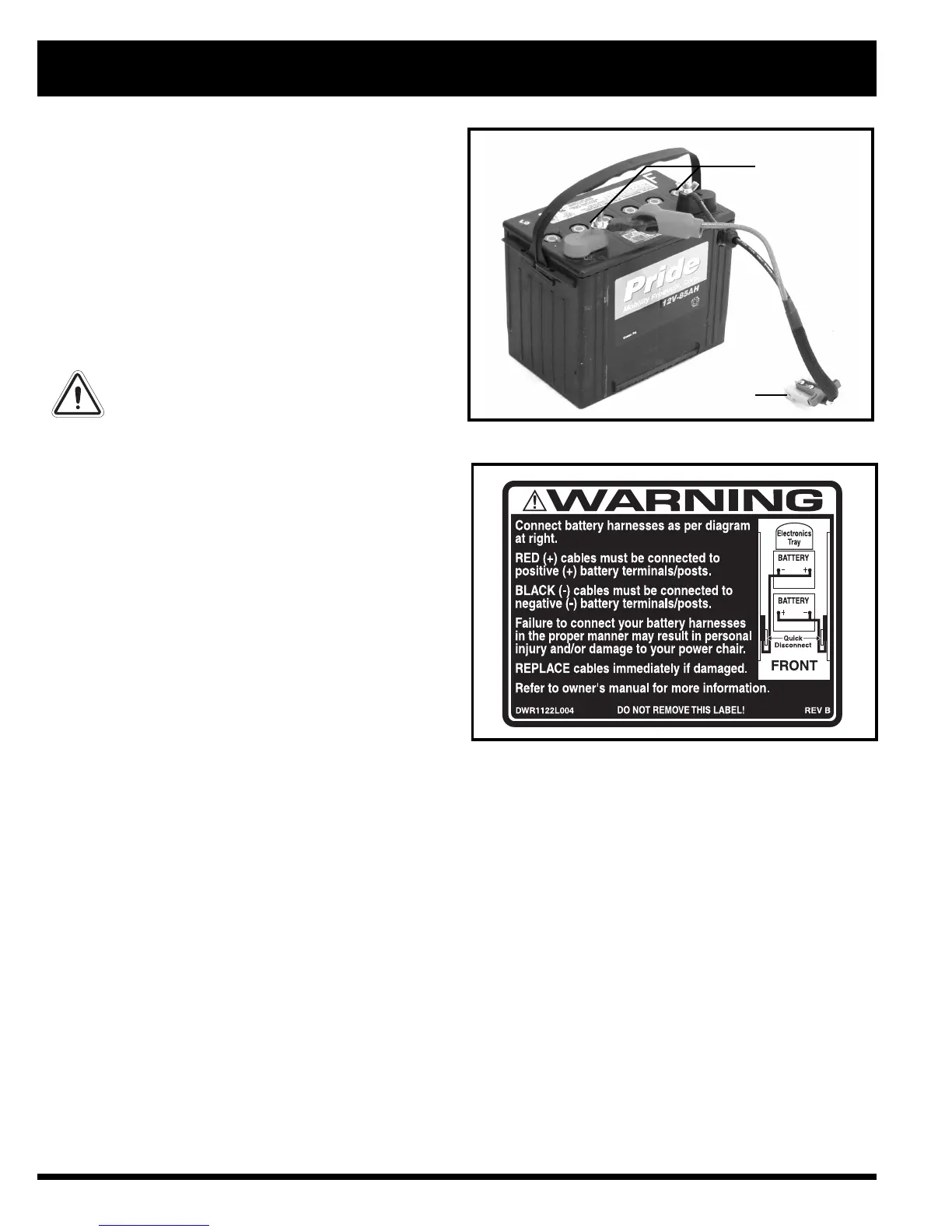

Figure 35. 1121 Battery Wiring Diagram Label
Figure 34. Battery and Harness
Corrective Maintenance
If the battery condition meter does not light up when you turn on the power:
Check the harness connections. Make sure they are tight.
Check the circuit breaker. Reset it if necessary.
Check the battery connections.
If the above conditions prove normal, you can load test the batteries with a battery load tester. These testers are
available at automotive parts stores. Disconnect both batteries before load testing and follow the directions that
come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair
still does not power up, contact your authorised Pride Dealer.
