20 www.pridemobility.com Jazzy 600
IV. YOUR POWER CHAIR
Battery Connector (VSI Only): This is where the controller connects to the batteries.
Charger Inhibit Connector (VSI Only): The charger inhibit enables the onboard battery charger to disable the controller
during charging. See VIII. Operation.
Controller Connector (Remote Plus/FLIGHT Only): This is where the controller connects to the power module.

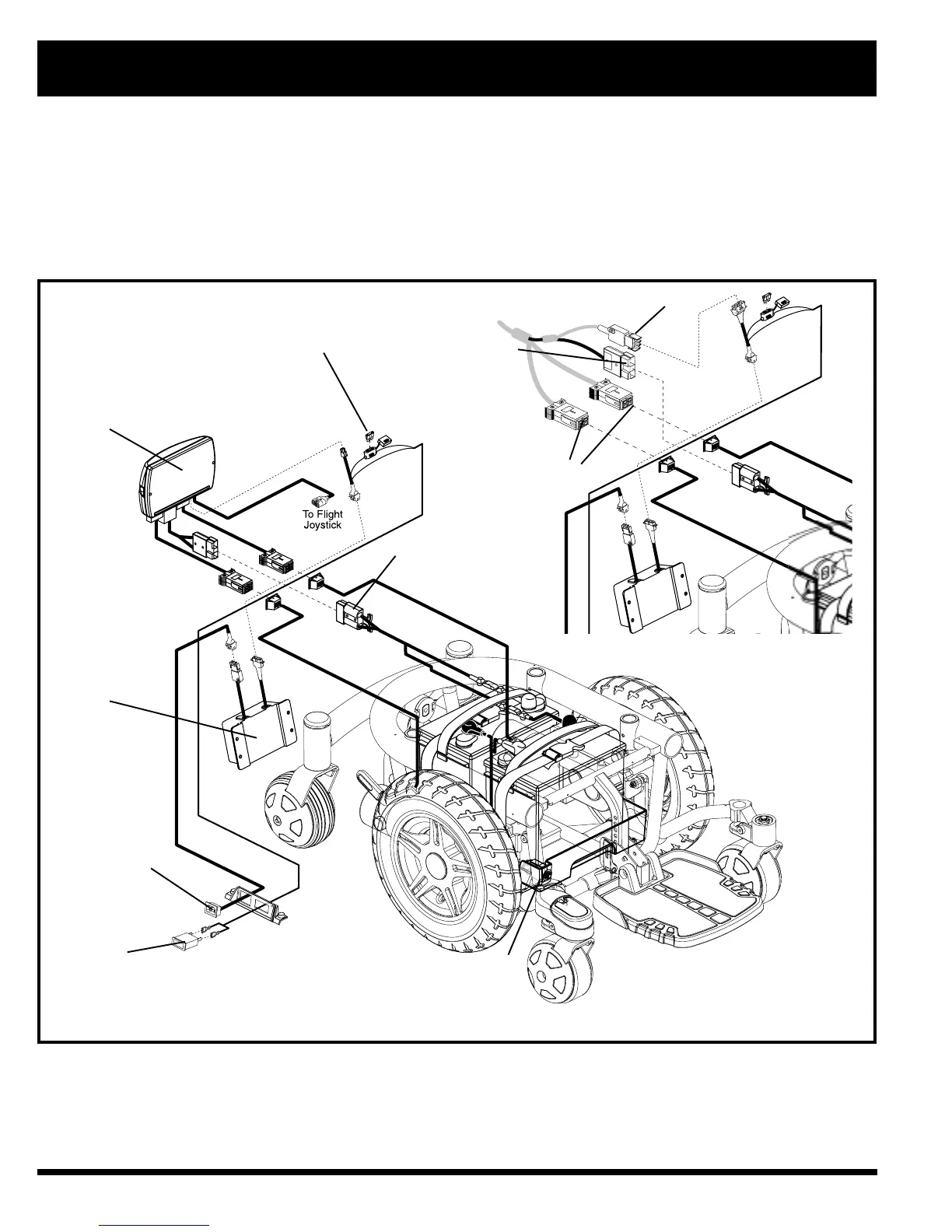

Figure 7. Jazzy 600 Electrical Components
BATTERY
CONNECTOR
CHARGER POWER
CORD RECEPTACLE
CHARGER CIRCUIT FUSE
ONBOARD BATTERY
CHARGER
MAIN CIRCUIT BREAKER
AMMETER
FLIGHT POWER MODULE
(REMOTE PLUS IS SIMILAR)
MOTOR
CONNECTORS
CHARGER INHIBIT CONNECTOR
BATTERY
CONNECTOR
VSI CONTROLLER
