26 www.pridemobility.com Jazzy 600
Armrest Width Adjustment
You can change each armrests width independently of the other.
NOTE: Changing the armrest width may increase the
overall width of your power chair.
To change the armrest width:
1. Locate the two armrest knobs on each side of the
armrest receiver bracket. See figure 14.
2. Loosen the knobs.
3. Slide the armrests in or out to the desired width.
4. Tighten the knobs.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to
the floor. See figure 14.
2. Loosen the jam nuts.
3. Turn the adjusting screw clockwise to lower the front
of the armrest, or turn the adjusting screw counterclock-
wise to raise the front of the armrest.
4. Tighten the jam nuts to lock the adjusting screw into place.
Foot Platform Height
The foot platform height is easily adjusted to different heights
in 1/2-in. increments.
To raise or lower the foot platform:
1. Remove the quick release fasteners from the foot
platform bracket. See figure 15.
2. Raise or lower the foot platform to the desired height.
3. Reinstall the quick release fasteners into the foot plat-
form bracket and tighten.
Foot Platform Depth
To adjust the foot platform depth:
1. Remove the quick release fasteners from the foot
platform bracket. See figure 15.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the quick release fasteners into the foot
platform bracket and tighten.
Quick Release Fasteners: The foot platform is attached to
the power base with two quick release fasteners. See figure
15. Each quick release fastener consists of a bolt, a lever, and
a nut. See figure 16. The lever has a cam on the end that
allows it to clamp into place. The quick release fastener has
VI. COMFORT ADJUSTMENTS

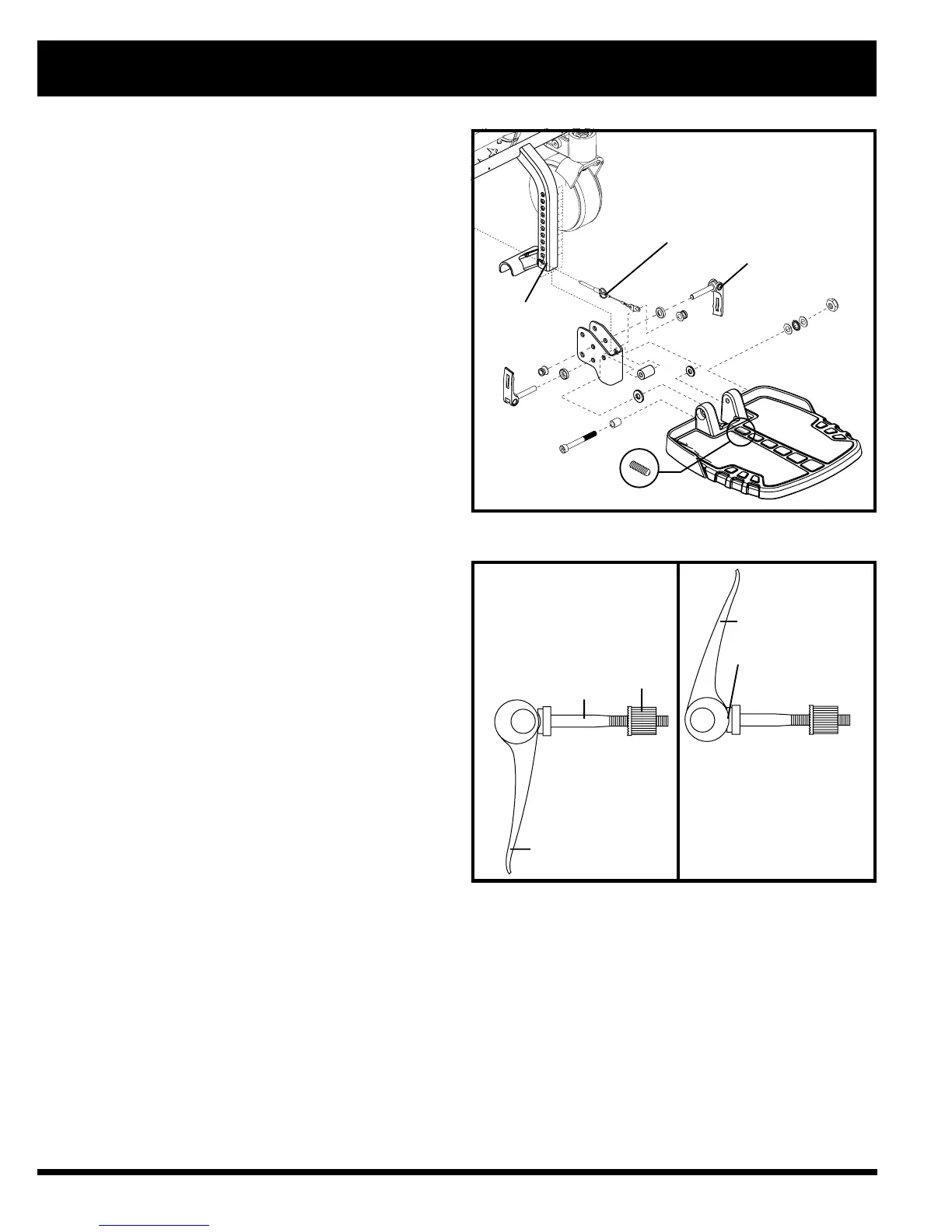

Figure 15. Foot Platform Adjustment
FOOT
PLATFORM
BRACKET
FOOT PLATFORM
RETAINING PIN
QUICK RELEASE
FASTENERS
Figure 16. Quick Release Fastener Operation
LEVER (OPEN)
BOLT
NUT
CAM
UNCLAMPED
CLAMPED
LEVER (FULLY CLOSED)
SETSCREW
