V. COMFORT ADJUSTMENTS
Foot Platform Height Adjustment
The foot platform height is easily adjusted to dierent
heights in 0.5-in. (1.27-cm) increments.
To raise or lower the foot platform:
1. Remove the hardware from the foot platform
bracket. See gure 10 or 11.
2. Raise or lower the foot platform to the desired
height.
3. Reinstall the hardware into the foot platform
bracket and tighten.
Foot Platform Depth Adjustment
To adjust the foot platform depth:
1. Remove the hardware from the foot platform
bracket. See gure 10.
2. Move the foot platform in or out to the desired
depth.
3. Reinstall the hardware into the foot platform
bracket and tighten.
Foot Platform Angle Adjustment
You can adjust the angle of the foot platform. See
gure 10.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the adjustment
screw.
2. Turn the adjustment screw to raise or lower the
front of the foot platform.
1. Foot Platform Bracket
2. Hardware
3. Adjustment Screw
Identification Key

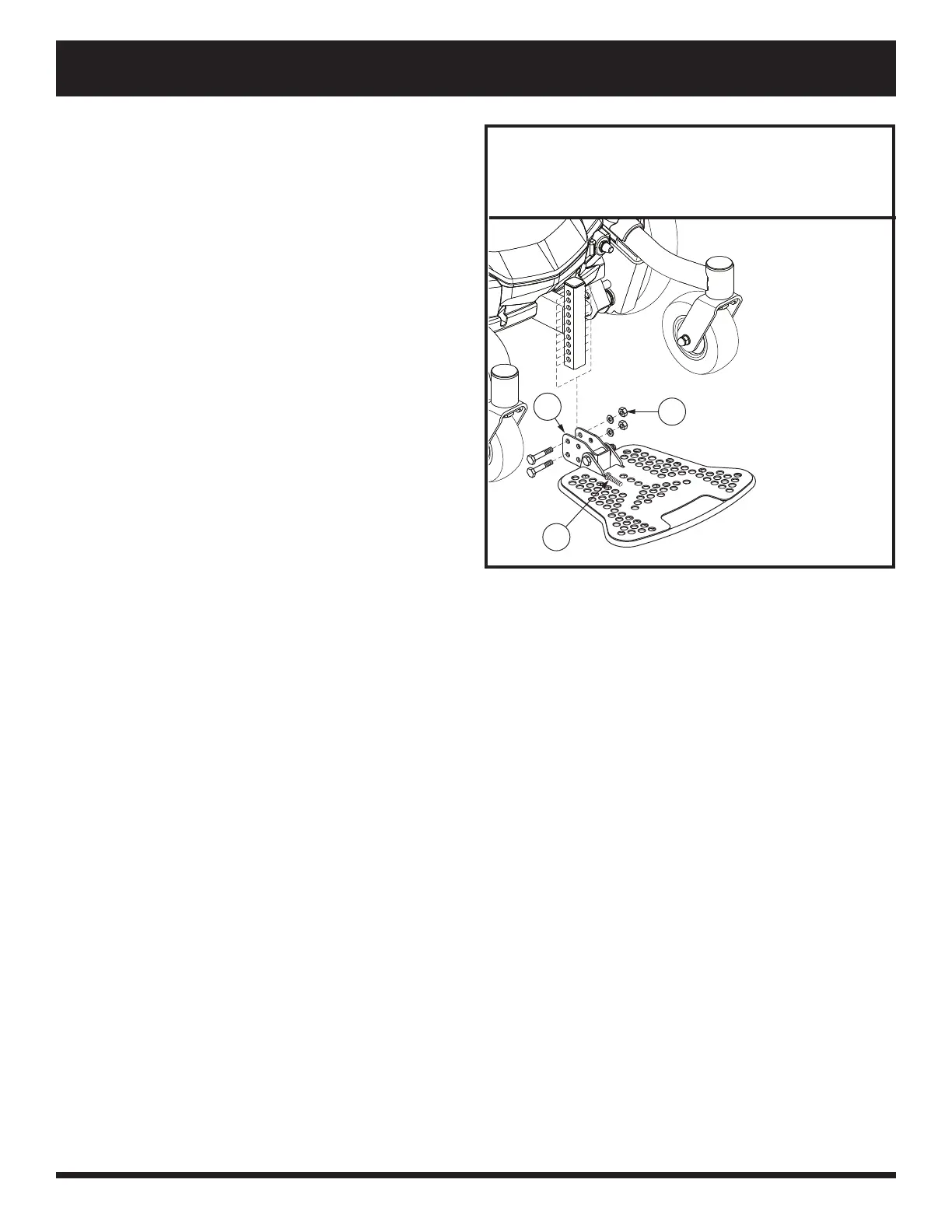

Figure 10. Foot Platform Adjustment
1
2
3
