III. YOUR POWER CHAIR
Main Circuit Breaker (located in front of the batteries on top of the main frame): The main circuit breaker
is a safety feature built into your power chair. When the batteries and the motors are heavily strained (e.g., from
excessive loads), the main circuit breaker trips to prevent damage to the motors and the electronics. If the circuit
trips, allow your power chair to “rest” for approximately one minute. The circuit breaker will reset itself. Turn on
the controller, and continue normal operation. If the main circuit breaker continues to trip repeatedly, contact your
Quantum Rehab Provider.

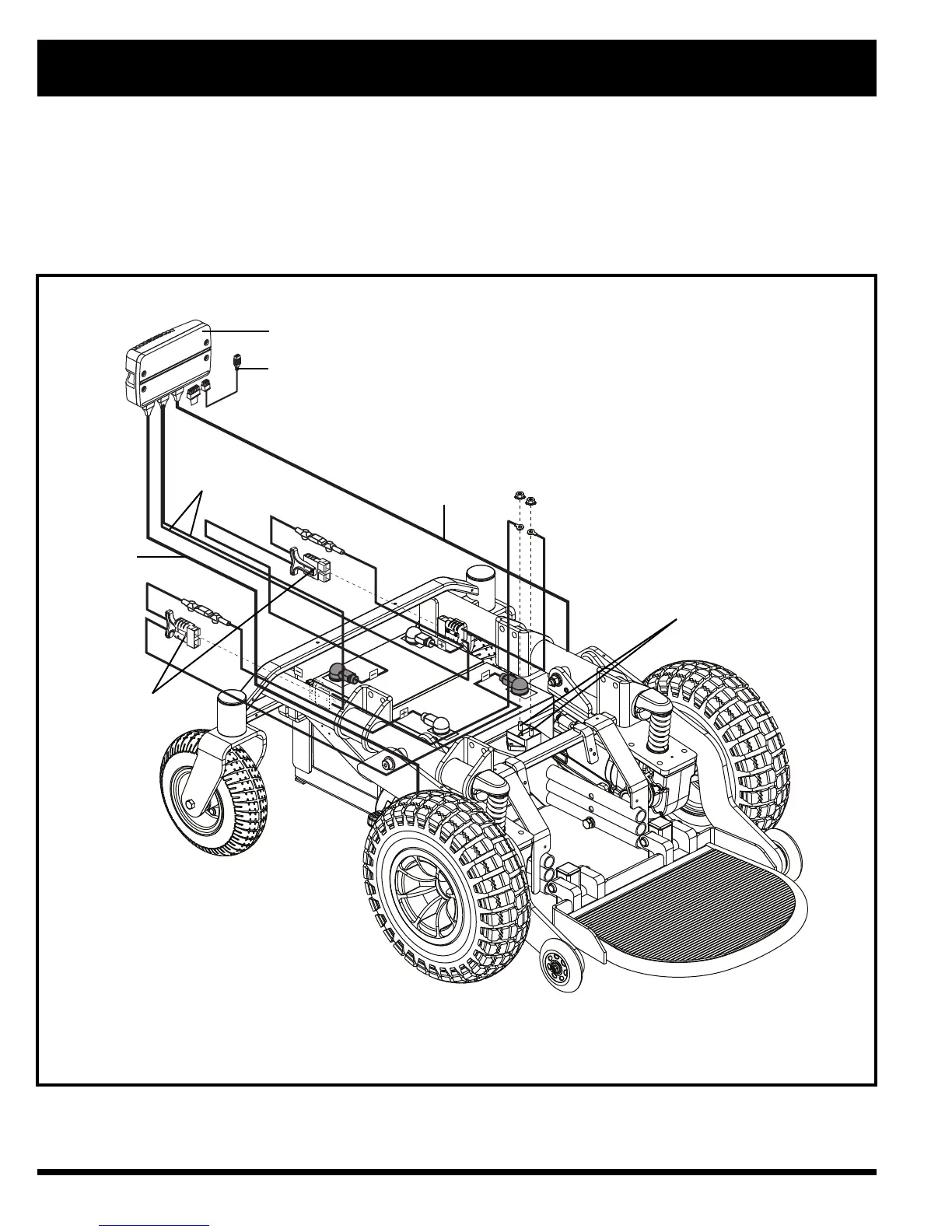

Figure 3. Quantum/Jazzy 1450 Series Electrical Components
QUICK RELEASE
BATTERY
CONNECTORS
MAIN CIRCUIT
BREAKERS
CONTROLLER POWER MODULE
TO MOTOR
CONNECTOR
CONTROLLER CONNECTOR
TO MOTOR
CONNECTOR
TO BATTERY
CONNECTORS
