8 www.pridemobility.com Quantum/Jazzy 1450 Series
III. YOUR POWER CHAIR
THE QUANTUM/JAZZY 1450 SERIES POWER CHAIR
Your power chair has two main assemblies: the seat assembly and the power base assembly.
See figure 1.
Typically,
the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake
assemblies, two drive wheels, two caster wheels, two anti-tip wheels, two batteries, and wiring harnesses.
See fig-
ures 1, 2, and 3.

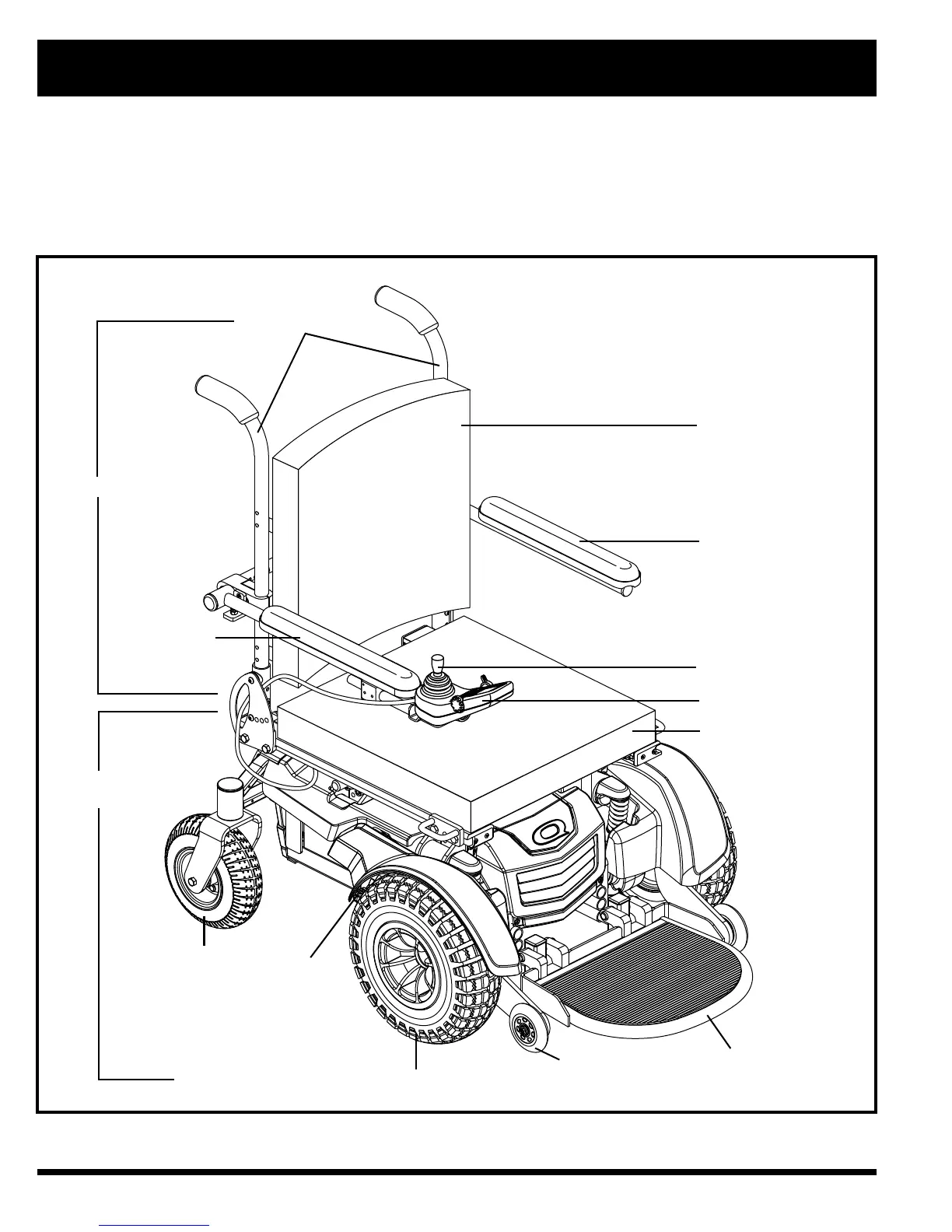

Figure 1. The Quantum/Jazzy 1450 Series Power Chair (Quantum 1450 Shown)
SEATBACK
DRIVE WHEEL
CASTER WHEEL
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FRONT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
CONTROLLER
ANTI-TIP WHEEL
MANUAL
FREEWHEEL
LEVER
ARMREST
ARMREST
BACK CANES
