Pride Mobility Olympian Autolift - Product Specification; Technical

Olympian Autolift www.pridemobility.com 8
I I I . T E C H N I C A L
PRODUCT SPECIFICATION
Model / SWL
440 lbs (200kg)
260 lbs (120kg)
Weight of the lifting arm:
30.8lbs (14kg)
24.2lbs (11kg)
Maximum lifting capacity, SWL:
440lbs (200kg)
260lbs (120kg)
Power supply:
12V dc
Maximum current draw:
22 Amps
Product Materials:
Aluminum and Mild/Stainless Steels
Material Finish:
Powder Coated – Black, Red or Blue

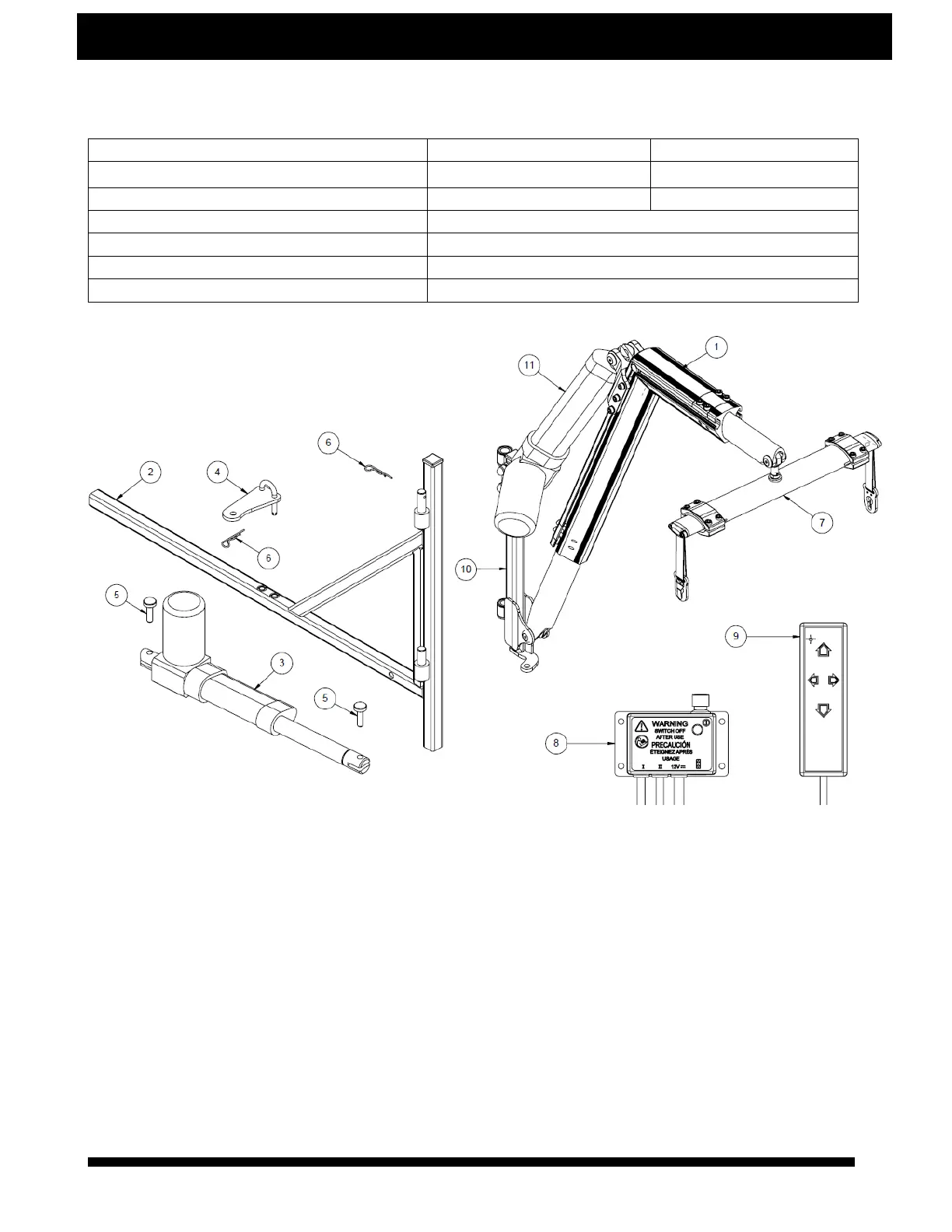

COMPONENT DESCRIPTION
1
2
3
4
5
6
BOOM
‘A’ FRAME
IN / OUT ACTUATOR
IN / OUT ACTUATOR FIXING PLATE
ACTUATOR PIN
RETAINING PIN
7
8
9
10
11
SPREADER BAR
CONTROL BOX
HANDSET
PIVOT POST
UP/DOWN ACTUATOR
