VII. COMFORT ADJUSTMENTS
TILLER ANGLE ADJUSTMENT
Your scooter is equipped with a pivoting tiller that allows
adjustment to several positions from the scooter deck to
the farthest forward stop.
1. Lift the tiller adjustment lever. See figure 11.
2. Move the tiller to a comfortable position.
3. Release the tiller adjustment lever to secure the tiller
in position.
SEAT ROTATION
The seat lock lever will lock the seat into several positions.
1. Push forward on the seat lock lever to unlock the
seat. See figure 12.
2. Rotate the seat to the desired position.
3. Release the lever to lock the seat into place.
FRONT-TO-BACK SEAT ADJUSTMENT
You can reposition the scooters seat forward or
rearward to adjust the distance between the seat
and the tiller. See figure 12.
1. Move the seat sliding lever outward.
2. While holding the lever out, slide the seat forward or
rearward.
3. Release the seat sliding lever once the seat is in the
desired position.
ARMREST ANGLE ADJUSTMENT
The armrest angle of your scooter can be adjusted up-
ward or downward by turning the adjustment dial. See
figure 12A.
NOTE: Pivot the armrests upward to make getting
onto and off of your scooter easier.
WARNING! Remove the key from the key switch before adjusting the tiller or the seat.
Never attempt to adjust the tiller or the seat while the scooter is in motion.

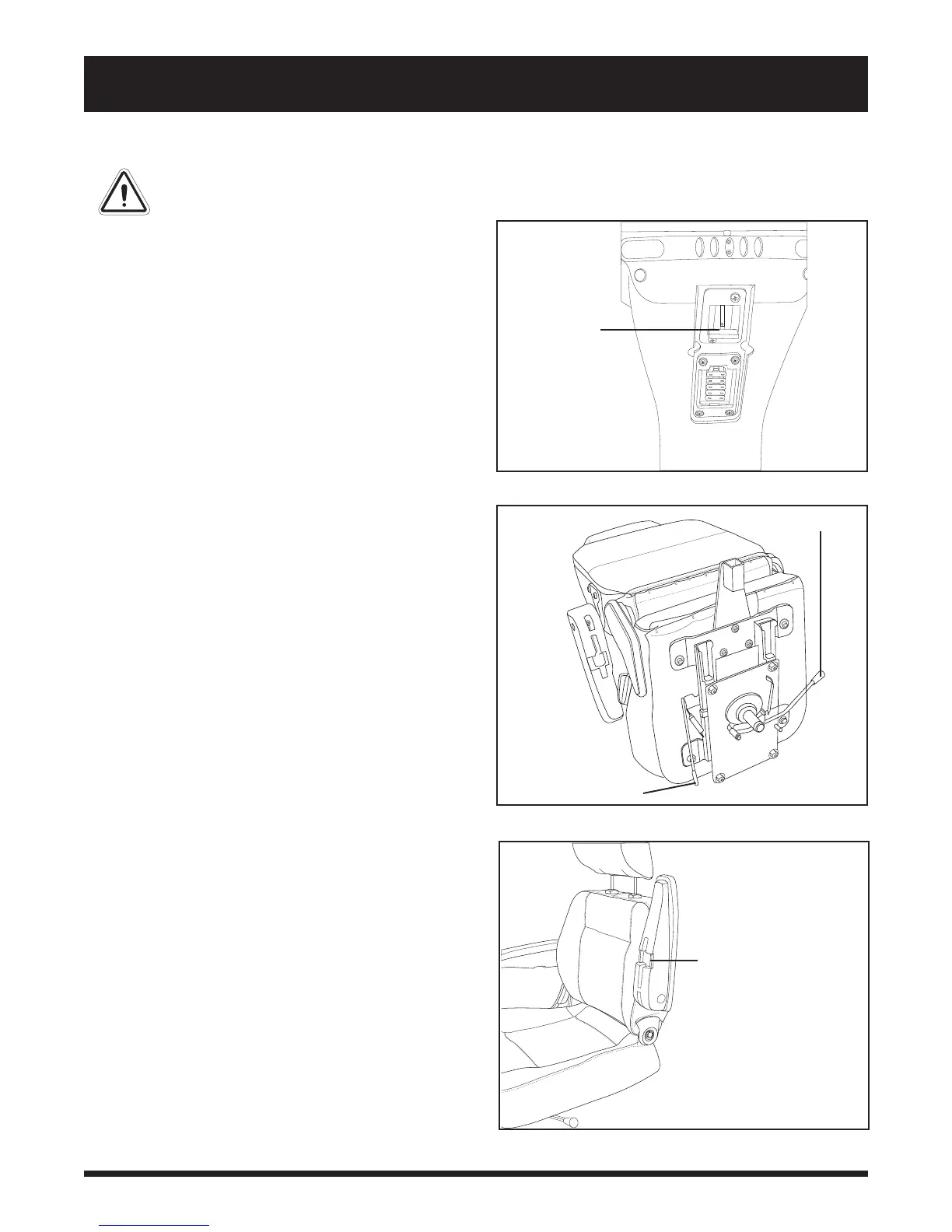

Figure 12A. Armrest Angle Adjustment
ADJUSTMENT
DIAL
TILLER
ADJUSTMENT
LEVER
Figure 11. Tiller Adjustment
1
1
1
1
REVERSE
F
5
Figure 12. Seat Adjustment
SEAT SLIDING LEVER
SEAT LOCK LEVER
