POWER HEADREST MOTOR CONNECTIONS
For initial use, troubleshooting or chair
reassembly, you may have to connect or
reconnect the power headrest motor wires.
1. Lay the seatback, face down, on the chair
base and route all cables through the wire
access point as shown.
Note: If you do not have a “Y” cable,
proceed to step 3.
2. For chairs equipped with a “Y” cable, plug
the seat base motor cable into the motor box
connector, and plug the hand control cable
and the seatback motor cable into the “Y”
cable connectors.
3. For chairs equipped with a control box, plug
the cable marked “A” into the control box’s
“A” port, and the cable marked “B” into the
control box’s “B” port. Plug the controller
cable into the center wire connector.

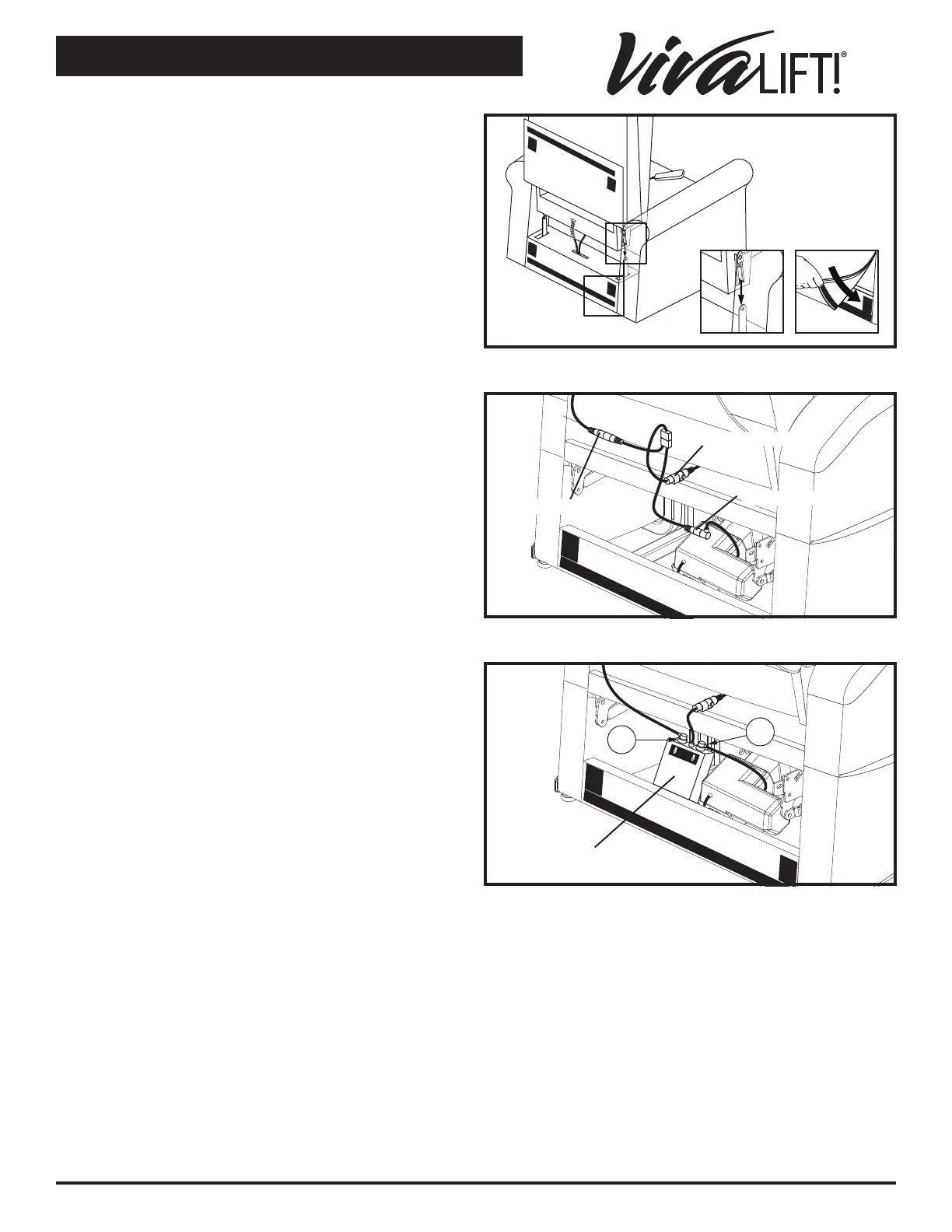

Figure 5. Power Headrest Cable Routing
Figure 6. Power Headrest Cable Connections
Figure 7. Power Headrest Control Box Connections
SEAT BASE MOTOR CABLE
HAND CONTROL CABLE
SEAT BACK MOTOR CABLE
A
B
CONTROL BOX
