III. YOUR POWER CHAIR
THE JAZZY SELECT SERIES POWER CHAIR
The Jazzy Select Series Power Chair has two main assemblies: the seat assembly and the power base assembly. See figure 5.
Typically, the seat assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/
brake assemblies, two drive wheels, two batteries, and wiring harnesses. The Select power base will also include two rear
caster wheels and two front anti-tip wheels, while the Select 6 will include four caster wheels. See figures 5, 6, 7, and 8.

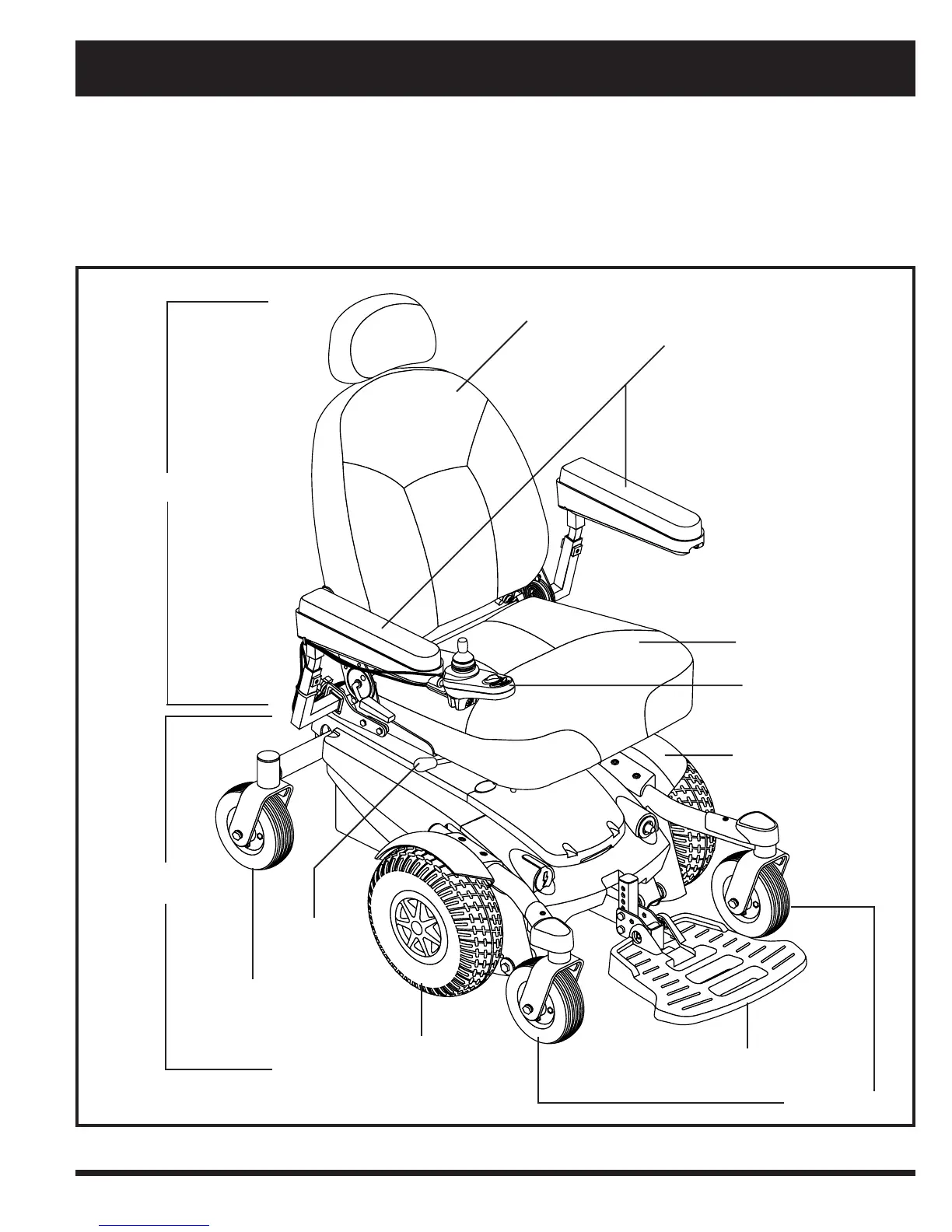

Figure 5. The Jazzy Select Series Power Chair (Jazzy Select 6 Shown)
SEAT ASSEMBLY
FOOT RIGGING
(FOOT PLATFORM SHOWN)
CASTER WHEEL
DRIVE WHEEL
CASTER WHEELS
SEATBACK
ARMRESTS
BODY SHROUD
CONTROLLER
SEAT BASE
SEAT
RELEASE
LEVER
POWER BASE
ASSEMBLY
