26 www.pridemobility.com Jazzy Select Series
V. COMFORT ADJUSTMENTS

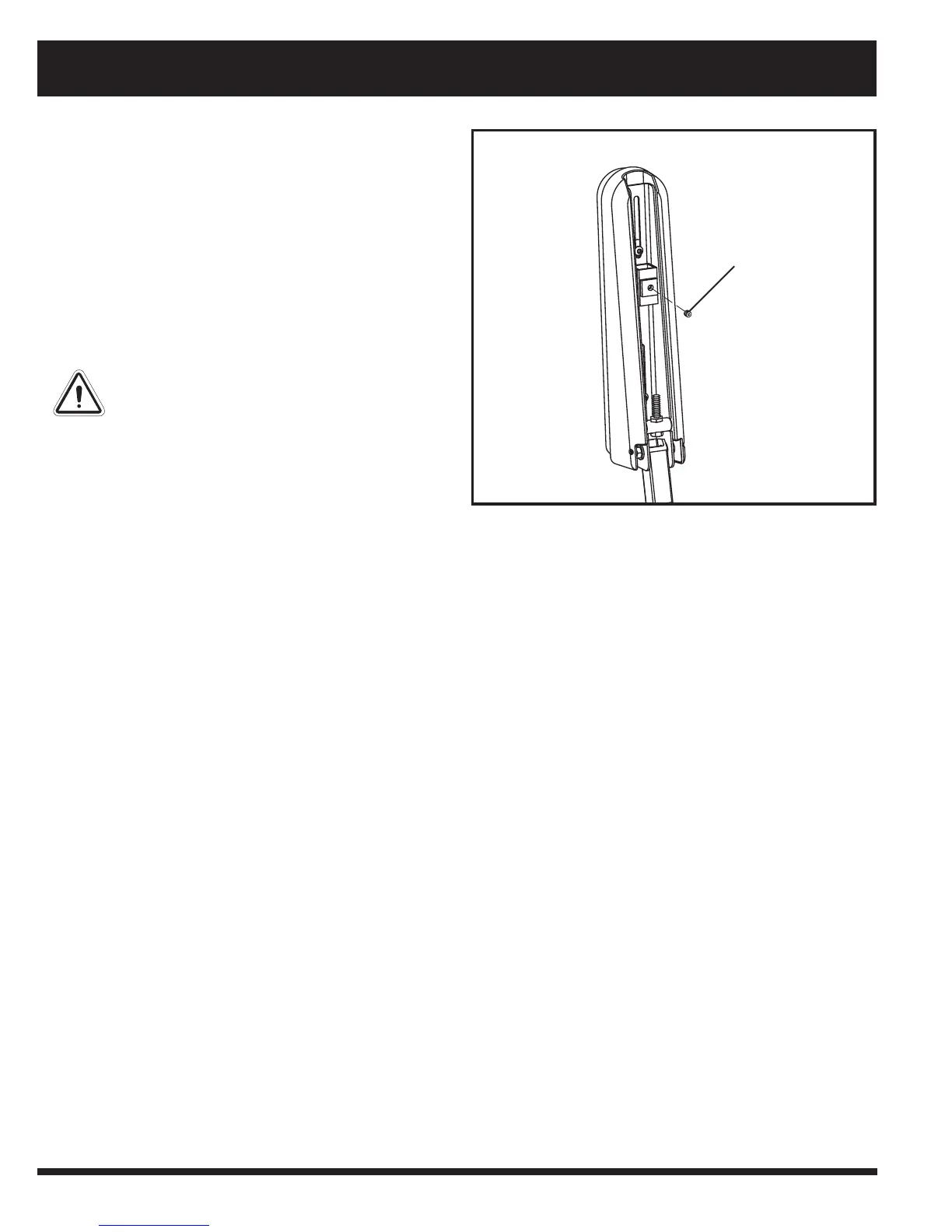

Figure 15. Underside of Armrest
SETSCREW
Armrest Height Adjustment
To change the armrest height:
1. Loosen the setscrews on the armrest. See figure 14.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrews to secure the armrest.
Controller Position
You can move the controller in toward or out away from the
armrest, or change the position of the controller for either left-
hand or right-hand use.
WARNING! Do not place the controller
cable so that it can be pinched in the
seat frame or the power base frame.
To extend the controller:
1. Flip up the armrest so it is perpendicular to the floor.
2. Loosen the setscrew on the controller bracket. See
figure 15.
3. Slide the controller into or out of the armrest to the de-
sired position.
To change the controller position:
1. Turn off the power to the controller.
2. Unplug the controller and the XLR off-board charger
port from the connector on the power base.
3. Cut the wire tie(s) that secure the controller and the
XLR off-board charger harness to the armrest and seat.
4. Flip up the armrest.
5. Loosen the setscrew. See figure 15.
6. Slide the controller out of the armrest.
7. Loosen the setscrew in the other armrest.
8. Place the controller into the other armrest.
9. Tighten the setscrew to secure the controller.
10. Route the controller and XLR off-board charger
harness along the seat frame and secure with wire ties.
See figure 11.
11. Plug the controller and XLR off-board charger
connectors into the power base. See figure 6 or 7.
