US Jet 3 Ultra/RevC/Jun03 www.pridemobility.com 17
IV. THE JET 3 ULTRA
THE JET 3 ULTRA
The Jet 3 Ultra has two main assemblies: the seat and the power base. See figures 4 and 5. Typically, the seat assembly
includes the armrests, seatback, and seat base. The seat may also have some optional accessories attached to it, such as
a rear basket, a cane and crutch holder, or a cup holder. See X. Optional Accessories.
The power base assembly includes two motor/brake assemblies, two drive wheels, two anti-tip wheels, two caster wheels,
two batteries, and the electrical components.
SEATBACK
CONTROLLER
(VSI SHOWN)
REAR
SHROUD
ANTI-TIP WHEEL
DRIVE WHEEL
CASTER WHEEL

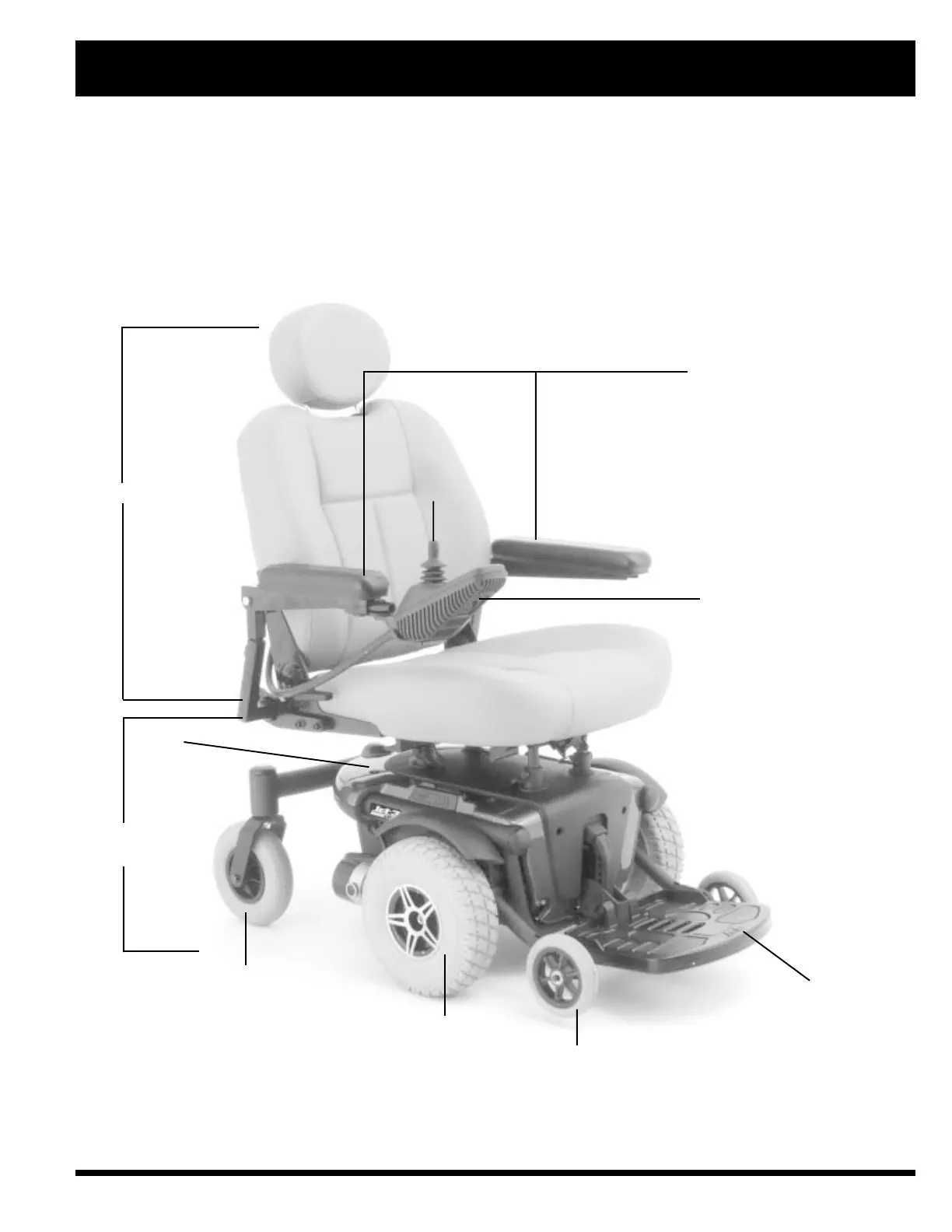

Figure 4. The Jet 3 Ultra
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
JOYSTICK
FRONT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
ARMRESTS
