II. YOUR SCOOTER
TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment dial, key
switch, battery condition meter, status LED, horn buttons, turn signal buttons, handbrake lever, tiller adjustment
lever, and the throttle control lever. Please note that some of the features listed in this section are optional items
and may not appear on your scooter. See fi gure 1.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your scooter until the tiller console
has dried thoroughly.
IDENTIFICATION KEY
1. HORN BUTTON
2. *LEFT TURN SIGNAL BUTTON
3. *HAZARD LIGHTS SWITCH
4. LIGHT SWITCH
5. *RIGHT TURN SIGNAL BUTTON
6. *HI-LOW SWITCH
7. THROTTLE CONTROL LEVER
8. SPEED ADJUSTMENT DIAL
9. BATTERY CONDITION METER
10. KEY SWITCH
11. MIRROR AND MIRROR PLUGS
12. *HANDBRAKE LEVER
13. *BRAKE LOCK
11
8 9 10
12
11
7
1
2 5
11
6
4
3
13
7

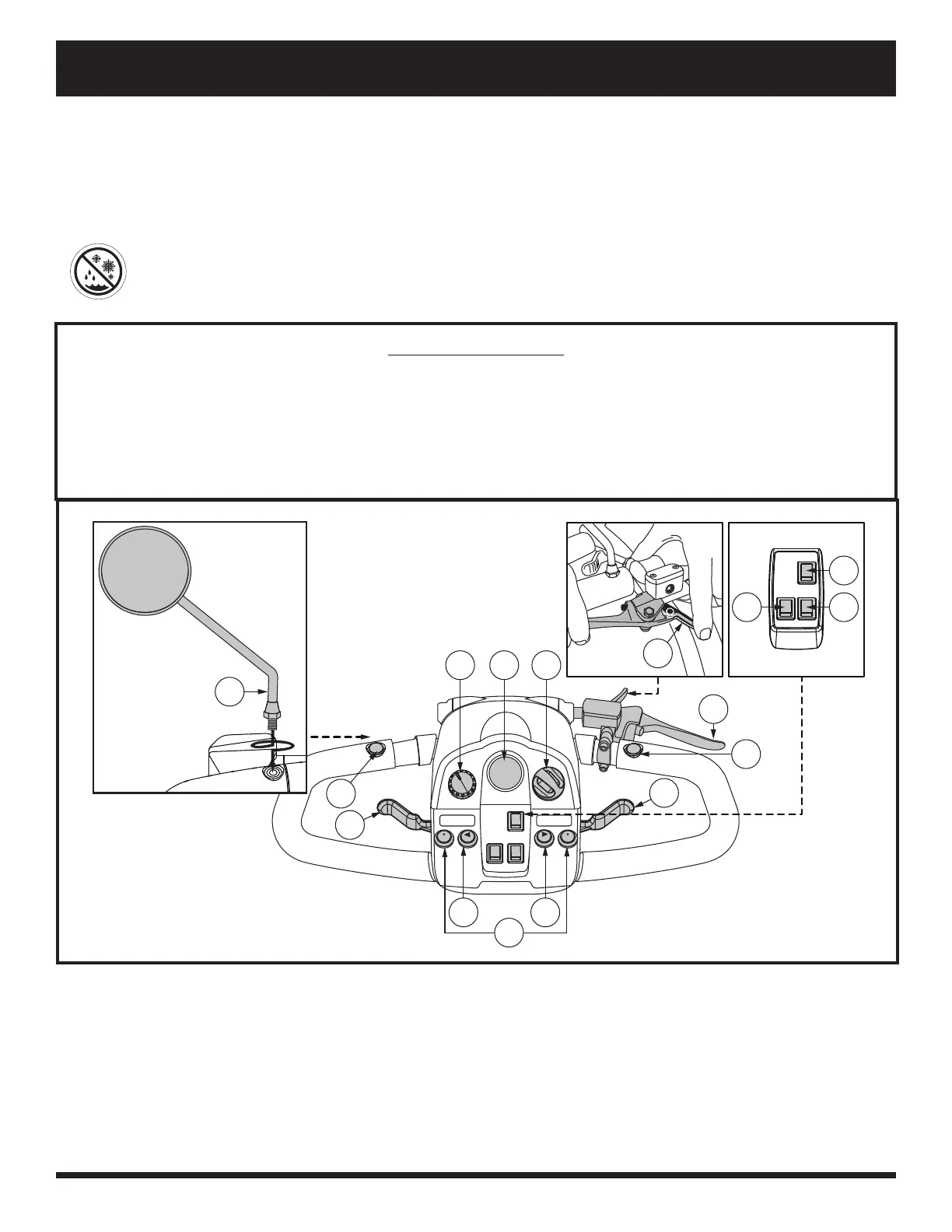

Figure 1. Tiller Console Components
