IV. ASSEMBLY
Seat Installation
It may be necessary to install the seat either prior to initial
operation or after transporting your power chair. Most
seats are attached to the power base with the Universal
Mounting System (UMS). The UMS consists of univer-
sal parts that may be attached to any medium-back or
high-back seat, regardless of seat width or seat depth.
The two main components are aluminum extrusions
mounted to the seat base. These extrusions attach to a
pair of trapeze bars that are mounted to the power base.
See figure 11.
NOTE: If your power chair is equipped with a Syn-
ergy Seating System or a Synergy TRU-Balance
Power Positioning System, refer to the information
provided in separate manuals.
WARNING! Do not pick up the seat
frame by the armrests. They are free
to pivot, and you may lose control of
the seat if they do so.
To install the seat:
1. Tilt the seat back and slide the rear extrusion onto the
rear trapeze bar. See figure 11.
2. Lower the front extrusion onto the front trapeze
bar until the seat locks into place.
3. Flip the seat latch safety down. See figure 11.
WARNING! Make sure the seat latch
safety is flipped down before using
your power chair.
4. Install the controller and route the cable to the back
of the power base. See figure 12.
5. Loosen the rear shroud fasteners and remove the rear
shroud. See figure 6.
6. Plug the controller connector into the power base.
See figure 7.
7. Reinstall the rear shroud and tighten the rear shroud
fasteners. See figure 6.
8. Route the controller cable so that it cannot be pinched
in the seat hinge.

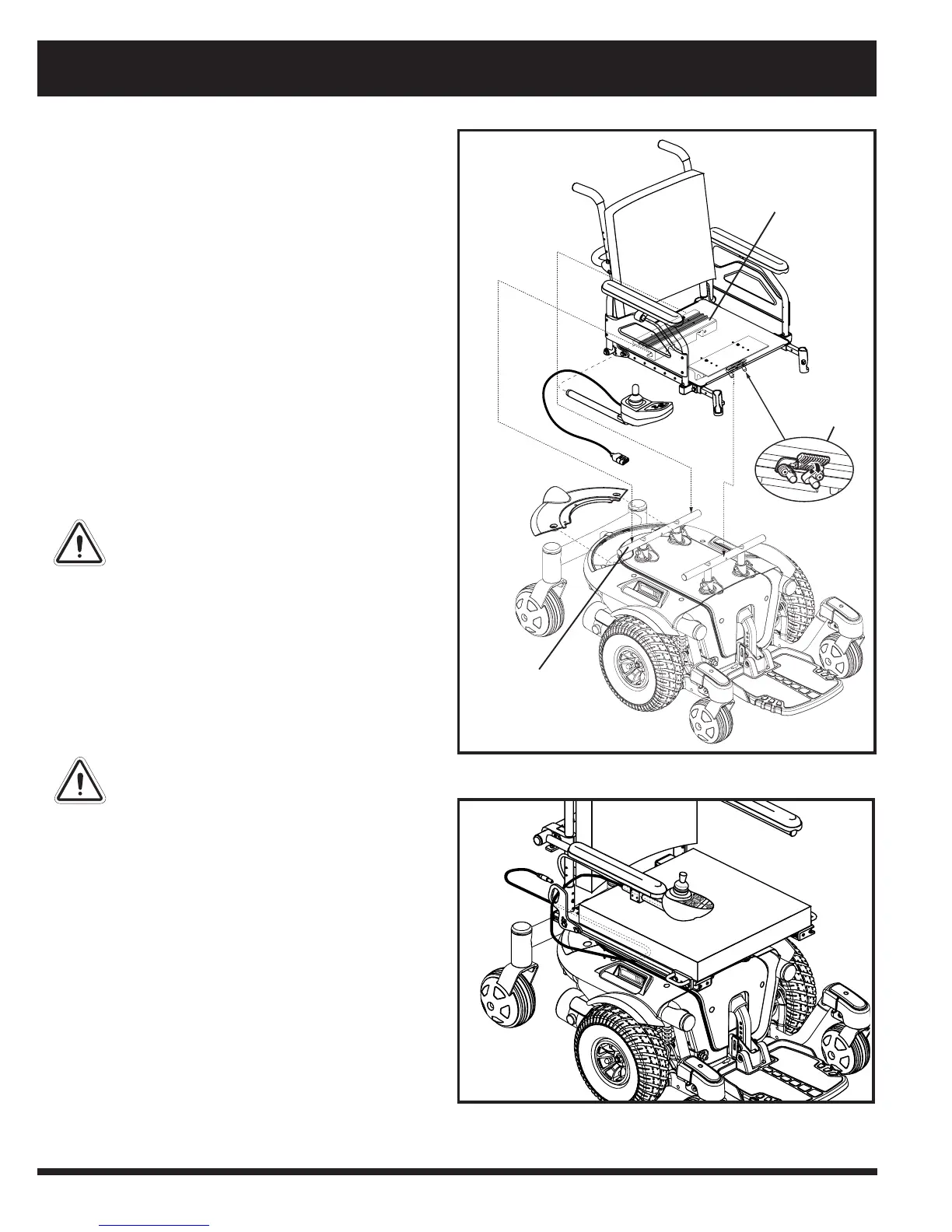

Figure 11. Universal Mounting System
SEAT
LATCH
SAFETY
Figure 12. Remote Plus Controller Routed on a Synergy
Seat
REAR
EXTRUSION
REAR TRAPEZE
BAR
