V. COMFORT ADJUSTMENTS
COMFORT ADJUSTMENTS
After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase
your comfort, such as seat height and angle, armrest angle, foot platform height and angle and controller position.
NOTE: If your power chair is equipped with a specialty seat, refer to the information provided in separate
manuals. If your power chair is equipped with a medium-back, a high-back or a reclining seat, refer to the
following information.
WARNING! If your power chair was configured by your Quantum Rehab Specialist, please consult your
healthcare professional before changing the seat position or making any other adjustment. Some
adjustments may degrade your power chair’s performance and safety by changing its centre of gravity.
WARNING! Some power chair components are heavy. You may need assistance to lift or carry
them. Please refer to the specifications table for specific component weights before you
disassemble the power chair.
TRAPEZE BARS
RETAINING
CLIPS
SEAT POSTS

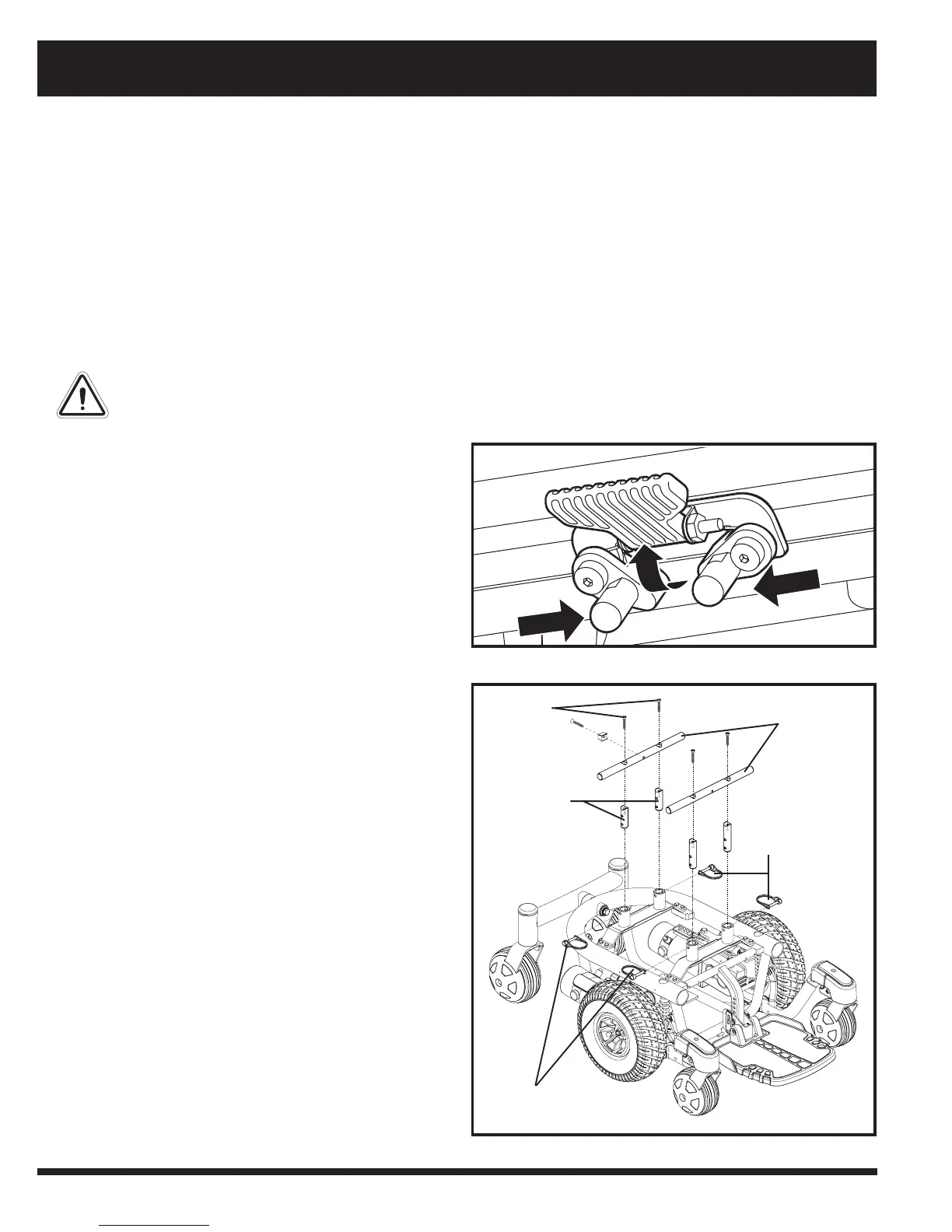

Figure 16. Seat Height Adjustment - Trapeze Bars
SCREWS
RETAINING
CLIPS
WARNING! Remove the occupant from
the power chair before making any
adjustments.
You may need the following to make comfort adjustments:
! metric/standard socket set and ratchet
! adjustable spanner
! thread lock
Seat Height and Seat Angle Adjustment
You can change the seat height to one of four positions by
raising the front and rear trapeze bars. If you raise or lower
only one trapeze bar (front or rear), you can also change
the seat base angle (dump).
To change the seat height:
1. Turn off the power to the controller.
2. Loosen the rear shroud fasteners and remove the rear
shroud. See figure 6.
3. Disconnect the controller connector(s) from the power
base. See figure 7.
4. Flip up the seat latch safety. See figure 15.
5. Squeeze the seat latch and release the seat from the
front trapeze bar. See figure 15.
6. Slide the seat forward and remove it from the power base.
7. Loosen the screws that attach the trapeze bars to the
seat posts. See figure 16.
8. Remove the retaining clips that secure the seat posts to
the power base. See figure 16.
9. Move the trapeze bars up or down to the desired height.
10. Reinstall the retaining clips from step 8.
11. Remove each screw from the trapeze bars and apply
thread lock.
Figure 15. Seat Height Adjustment - Seat Latch Safety
