V. COMFORT ADJUSTMENTS
Foot Platform Height Adjustment
The foot platform height is easily adjusted to different heights.
To raise or lower the foot platform:
1. Remove the quick release fasteners from the foot plat-
form bracket. See figure 21.
2. Loosen the foot platform securement nut one-half turn.
3. Raise or lower the foot platform to the desired height.
4. Reinstall the quick release fasteners into the foot plat-
form bracket and tighten.
5. Tighten the nut to secure.
Foot Platform Depth Adjustment
To adjust the foot platform depth:
1. Remove the quick release fasteners from the foot plat-
form bracket. See figure 21.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the quick release fasteners into the foot plat-
form bracket and tighten.
Quick Release Fasteners: The foot platform is attached
to the power base with two quick release fasteners. See fig-
ure 21. Each quick release fastener consists of a bolt, a lever
and a nut. See figure 22. The lever has a cam on the end that
allows it to clamp into place. The quick release fastener has
two states: clamped and unclamped. When the lever is open,
the quick release fastener is unclamped. When the lever is
closed, the quick release fastener is clamped.
To clamp the quick release fastener:
1. Make sure the lever is in the open position.
2. Turn the nut clockwise until it is snug.
3. Rotate the lever until it is in the fully closed position.
NOTE: If the lever will not rotate to the fully closed
position, then turn the nut anticlockwise one-quarter
or one-half turn.
Figure 22. Quick Release Fastener Operation
LEVER (OPEN)
BOLT
NUT
CAM
UNCLAMPED
CLAMPED
LEVER (FULLY CLOSED)

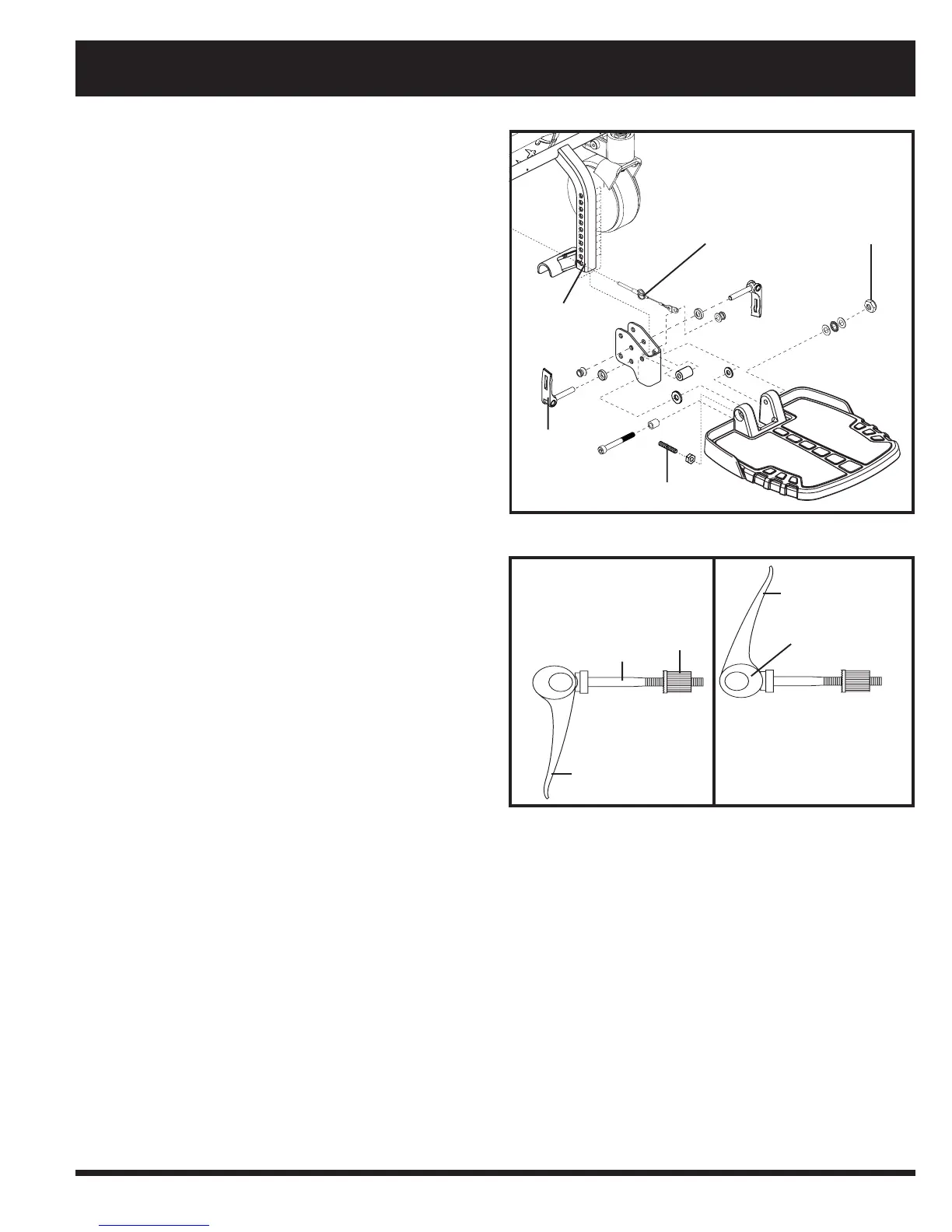

Figure 21. Foot Platform Adjustment
FOOT PLATFORM
RETAINING PIN
SETSCREW
SECUREMENT NUT
FOOT
PLATFORM
BRACKET
QUICK
RELEASE
FASTENERS
