12 AWG or larger speaker wire is recommended.
8. Mount remote level control in the car where it can be easily reached from the driver’s seat, if desired.
9. Using RCA interconnect cables, connect all line inputs per the wiring diagrams which follow.
If possible, keep RCA cables away from the 12 V power and ground wire.
10. Set the controls as described on following pages.

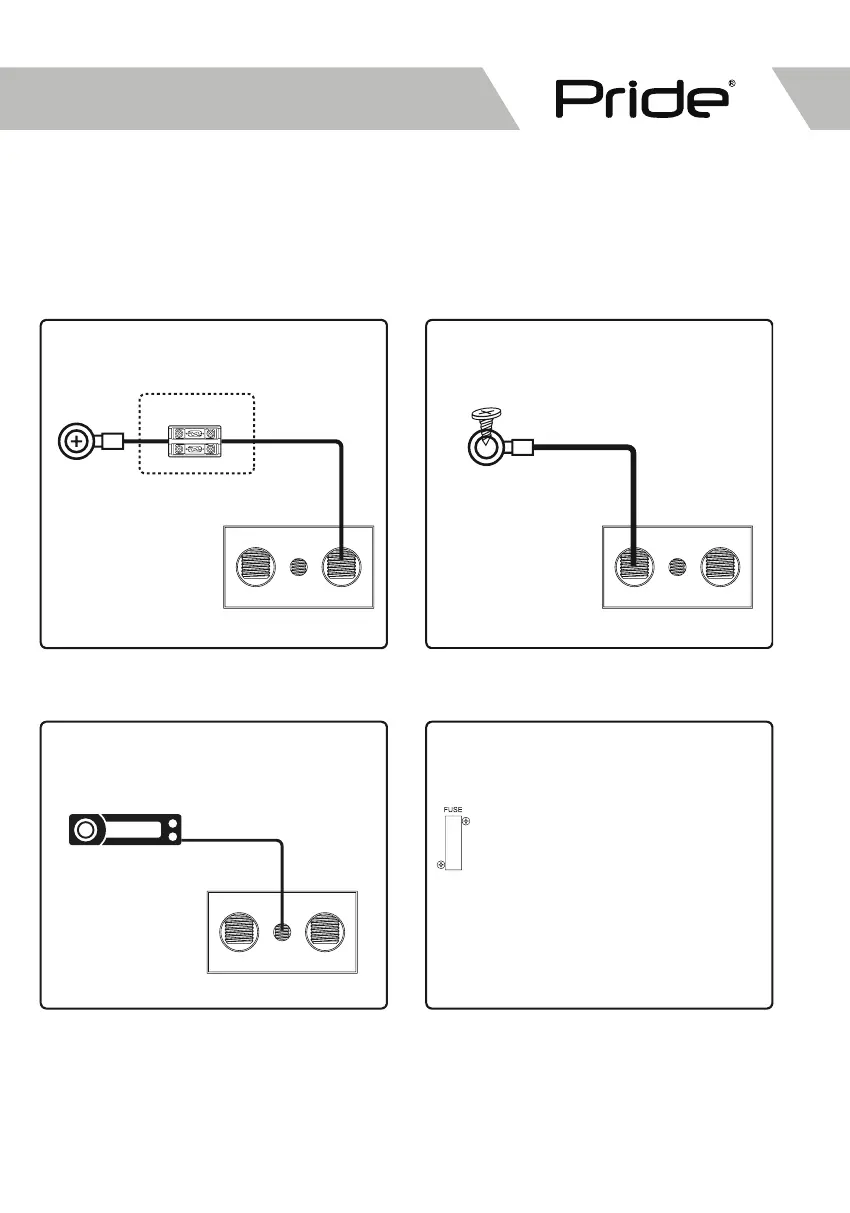

Power, Remote, G round C onnection
Power Terminal (+12 V) G round Terminal (G ND)
Remote / Turn on Terminal Fuses
Connect the source unit’s remote turn on lead
from the source unit to the amplifier’s remote
terminal. This turns on the amplifier whenever
the source unit is turned on.
POWER
REM +12 VGND
Connect to a good chassis ground. The ground
connection should be clean, unpainted metal
to provide a good electrical connection
Drill 1/8" hole in
Chassis sheet metal
Sheet Metal
screw
4~8 AWG wire
POWER
REM +12 VGND
Uno
2
, Uno plus
2
, Uno xl
2
, Due
2
, Quattro
2
built in fuse as below fuse rating.
Quattro plus
2
& Quattro xl
2
include ATC
Uno
2
: 40 A
Uno plus
2
: 30 A x 2
Uno xl
2
: 30 A x 4
Due
2
: 30 A
Quattro
2
: 30 A x 2
Quattro plus
2
: 40 A x 2
Quattro xl
2
: 40 A x 3
Connect directly to the vehicle battery
+ terminal with 4 or 8 AWG wire
4~8 AWG wire
Battery
Terminal
Adapter
Install as close as
to the battery as possible
External or
Built in Fuses
POWER
REM +12 VGND
To Next Page
