3
UNO
2
, UNO PLUS
2
& UNO XL
2

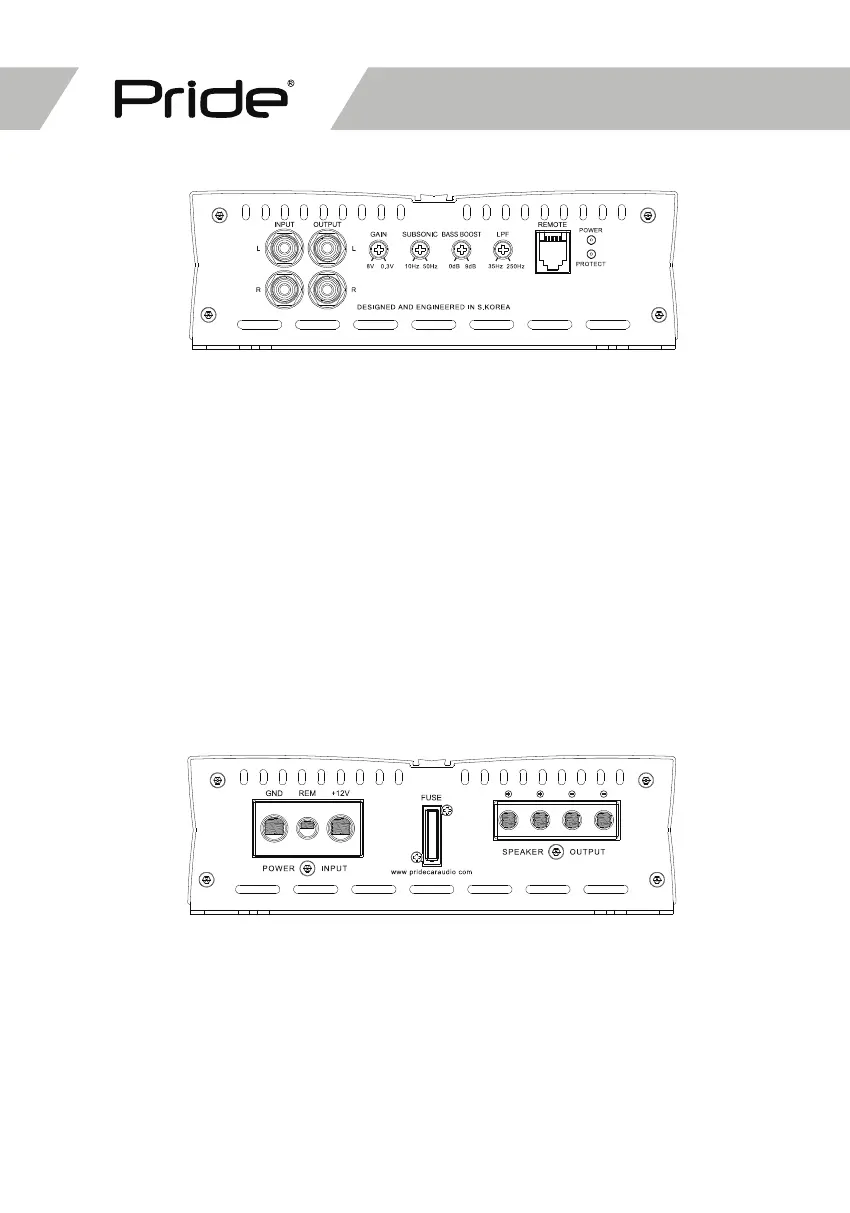

Digital Monoblock Input & Output Connection
GRO UND (G ND) & POWER (+12 V) -
The power and ground will accommodate 0 or 4 AWG
wire. Use high quality pure copper wire only.
REMOTE (REM) -
REM connector will accept wire sizes from 12 to 18 AWG.
This terminal is used to remotely turn-on and turn-off the
amplifier when +12 V DC is applied.
FUSE -
ATC fuse is built-in. If needed, use external fuses.
SPEAKER TERMINAL BLOC K -
Connect speaker cables from speaker terminal block to
subwoofers. Subwoofers impedance should be checked
carefully.
RCA INPU TS -
The RCA inputs ensure the highest quality contacts and
the lowest noise in your audio system.
RCA O UTPUTS -
The RCA outputs connect another amplifier for multi car
amplifiers system.
GAIN -
This adjusts the normal operating level of the amplifier by
matching the level from the headunit.
SUB SO NIC FILTER -
This allows you to tune the response of the amplifier at
very low frequencies.
BASS BO OST -
This allows you to tune amplifier response with up to 9 dB
of boost centered at 45 Hz
LO W PASS CR OSSO VER FREQ UENCY CO NTRO L -
This allows you to tune the response of the amplifier
at higher bass frequencies to roll off for a seamless
integration into your midbass.
REMOTE CO NTRO L -
Use this to control level of the amplifier from your driver’s
seat. Your driver’s seat.
Remote control includes clipping indicator.
POWER & PROTEC T IND ICATORS -
When the unit is powered on and operating correctly the
power LED illuminates. When the unit is malfunction or
faulty, the protect LED is on.
