IV. YOUR VICTORY
Your Victory is a motorized electric scooter designed to enhance your personal mobility. Your Victory is an indoor/
outdoor scooter designed to travel primarily on smooth surfaces such as pavement, roads, parking lots, floors, and
driveways. For easy transportation or storage, you can disassemble your Victory into seven components. See
figure 6.

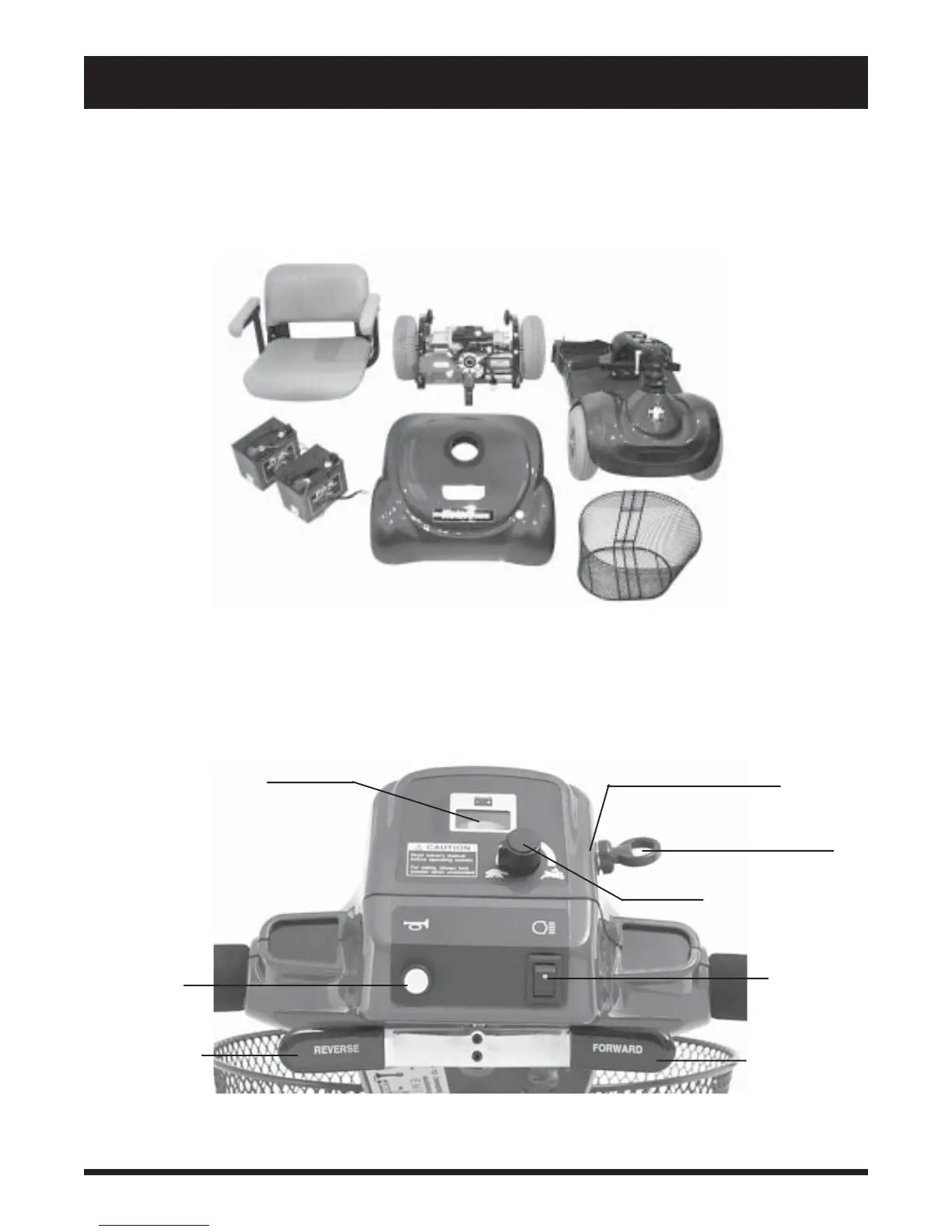

Figure 6. Seven Victory Components
FRONT SECTION
REAR SECTION
SEAT
BASKET
BATTERIES
REAR SHROUD
CONTROL CONSOLE ASSEMBLY
The control console assembly houses all the controls you need to drive your Victory, including the key switch, the
speed adjustment dial, the throttle control lever, the battery condition meter, the horn button, and the light switch.
See figure 7.
Figure 7. Control Console Assembly
HORN BUTTON
BATTERY CONDITION METER
THROTTLE CONTROL
LEVER (REVERSE)
LIGHT SWITCH
SPEED ADJUSTMENT DIAL
KEY SWITCH
KEY
THROTTLE CONTROL
LEVER (FORWARD)
