VIII. DISASSEMBLY AND ASSEMBLY
The Victory requires no tools for disassembly. Always disassemble or assemble your scooter on a level, dry
surface with sufficient room for you to work and move around your scooter. Keep in mind that the disassembled
sections of the scooter will take up more floor space than the assembled scooter.
DISASSEMBLY
1. Remove the key from the key switch. See IV. Your Victory.
2. Push down on the manual freewheel lever. See IV. Your Victory. Putting your scooter in drive mode may
make it easier for you to stabilise the rear section.
3. Make certain that the seat is locked into position. See VII.  Comfort Adjustments. Lift the seat up and off of
your scooter.
Toggle Latch Release
1. Push in the toggle latch release button while pulling back the toggle latch. See figure 17.
2. Position the toggle latch buckle over the top of the toggle latch. See figure 17A.
3. Lower the tiller to the scooter floorboard and fully tighten the tiller adjustment lever.
Figure 17A. Toggle Latch (Unlatched)
TOGGLE
LATCH
RELEASE
BUTTON
Figure 17. Toggle Latch (Latched)
TOGGLE
LATCH
BUCKLE

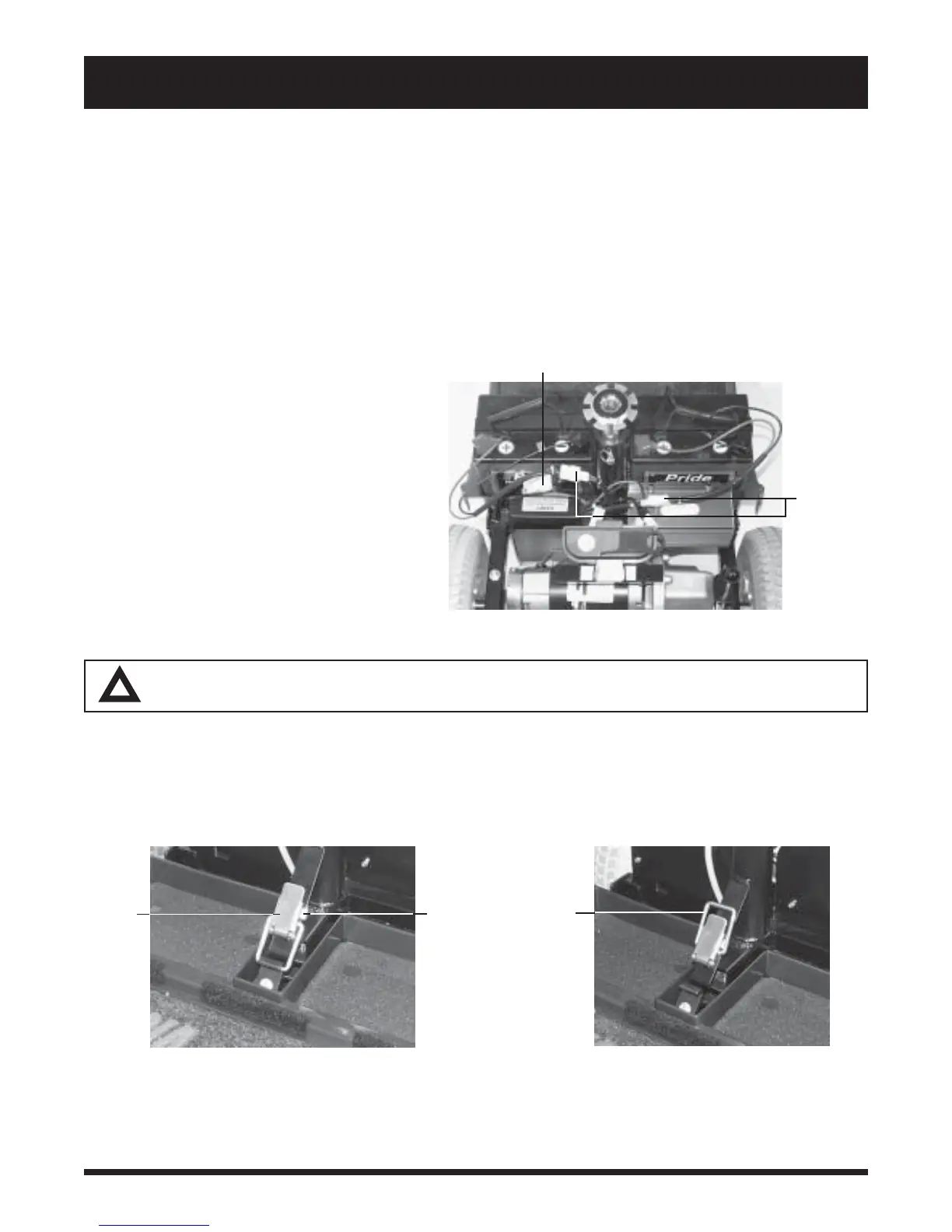

Figure 16. Disassemble Rear Connections
BATTERY
HARNESSES
UNPLUG FRONT-TO-REAR CONNECTOR
CAUTION! Failing to unplug both battery harnesses and the front-to-rear connector prior
to further disassembly could result in permanent damage to your scooter.
4. Gently lift the rear shroud off of your scooter.
The rear shroud is held in place with a reus-
able fastener.
5. Unplug both battery harnesses. See figure 16.
6. Loosen the battery straps, then lift both bat-
teries from the battery wells.
7. Unplug the large, white, 9-pin front-to-rear
connector that attaches the front control con-
sole assembly harness to the electronic con-
troller module harness. See figure 16.
