Pride Victory - Frame Separation and Assembly

30
Victory

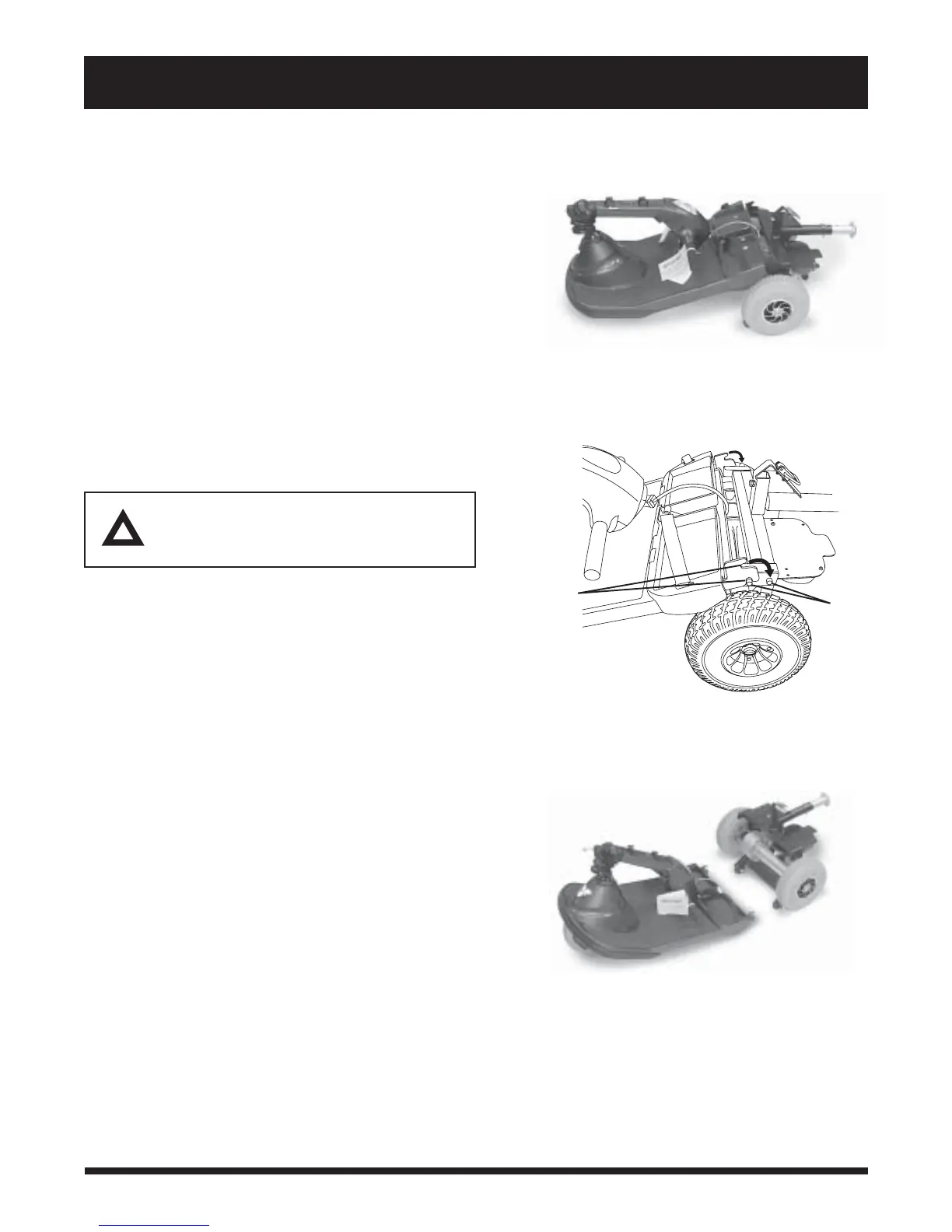

VIII. DISASSEMBLY AND ASSEMBLY
Frame Separation
1. Push back on the seat post to pivot the scooters rear
section rearwards until the rear section is standing ver-
tically on its rear bumper. See figure 18.
2. Lift the front section up until the lower pegs are no
longer in the curved locking brackets. See figure 19.
3. Carefully lift the front section away from the rear sec-
tion.
ASSEMBLY
1. Position the front and rear sections of your scooter as
shown in figure 20.
2. Align the curved locking brackets of the front section
with the corresponding pegs on the front of the rear
section. See figure 19.
3. Holding the seat post, slowly pivot the rear section
forward until the curved locking brackets are fully con-
nected onto the top rear pegs. See figure 19.
4. Raise the tiller.
5. Secure the toggle latch. See figure 17.
n Lower the toggle latch buckle.
n Push back on the toggle latch so it locks into place.
6. Connect the front-to-rear cable and both battery har-
nesses.
7. Replace the rear shroud.
8. Replace the seat and rotate it until it locks into place.
Figure 20. Frame Sections
CURVED
LOCKING
BRACKET
PEGS
Figure 18. Frame Positioning
Figure 19. Frame Lockup
CAUTION! Position the front-to-rear
cable so it wont become pinched
between the frame sections when
pivoting the rear section forward.
