Pride Victory - Rear Section Components and Functionality

19Victory
REAR SECTION
The onboard battery charger, the ammeter, the charger power lead receptacle, the battery charger fuse (not
shown), the batteries, the electronic controller module, the main circuit breaker (reset button), the manual manual
freewheel lever, the anti-tip wheels, and the motor/transaxle assembly are located on the rear section of your
Victory. See figure 8.
Onboard Battery Charger
The onboard battery charger converts household current (AC) to direct current (DC) and charges the batteries of
your Victory. See V. Batteries and Charging.
n The charger is located behind the batteries and at the forward right corner of the rear section.
n The charger power lead plugs into your Victorys battery charger by means of a receptacle located on the rear
section of your Victory, near the main circuit breaker reset button and ammeter.
Batteries
The batteries store the electrical energy that powers your Victory. See V. Batteries and Charging.
Electronic Controller Module
The electronic controller module is located behind the batteries and at the forward left corner of the Victorys rear
section. This assembly receives electrical signals from the console controls and sends power to the motor, brakes,
and headlight.
IV. YOUR VICTORY
ONBOARD BATTERY
CHARGER
CHARGER POWER
LEAD RECEPTACLE
MAIN CIRCUIT BREAKER
(RESET BUTTON)
MANUAL
FREEWHEEL
LEVER
MOTOR/TRANSAXLE
ASSEMBLY
ANTI-TIP WHEELS
ELECTRONIC CONTROLLER
MODULE
AMMETER
BATTERY HARNESSES
FRONT-TO-REAR HARNESS
BATTERIES

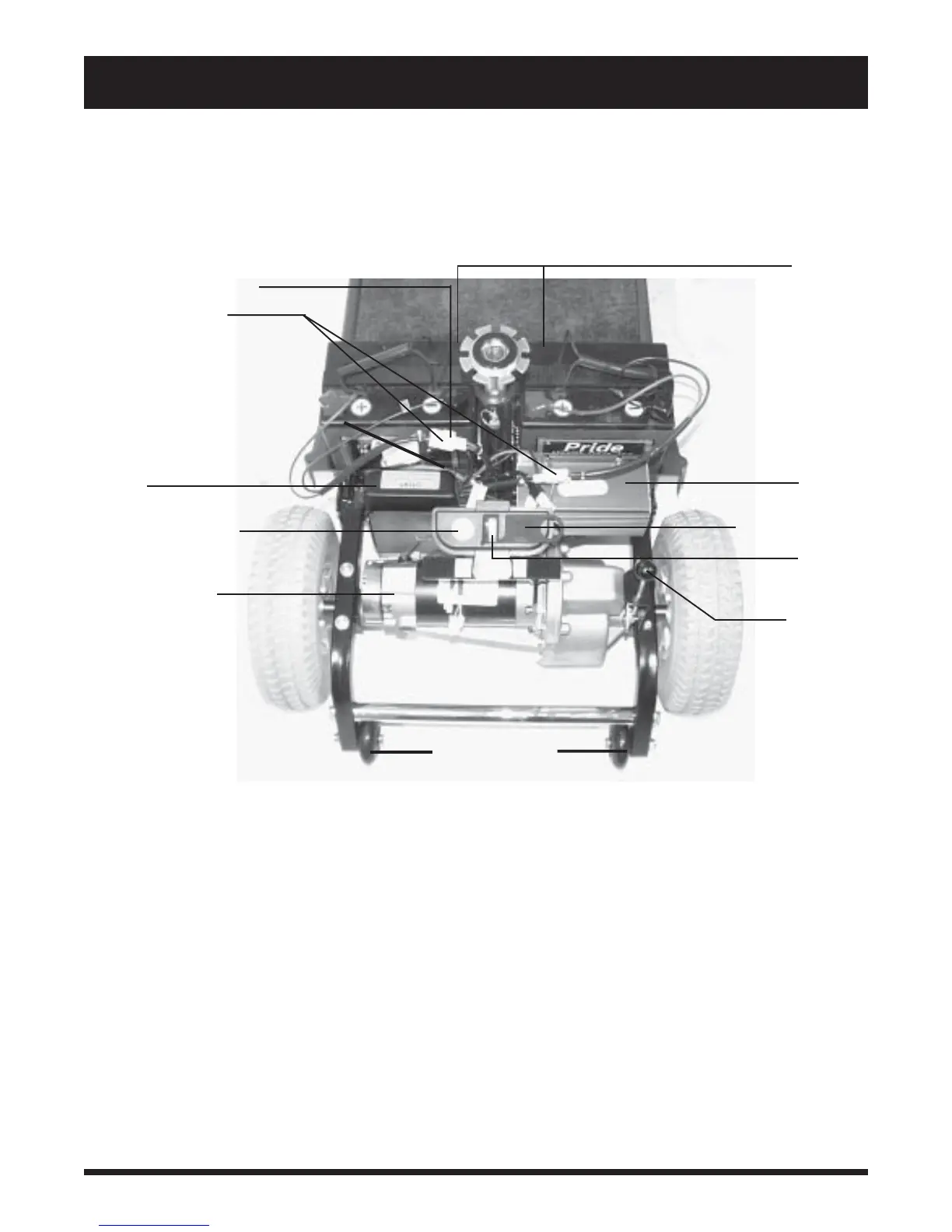

Figure 8. Rear Section
