VIII. CARE AND MAINTENANCE
Follow these easy steps for a quick and safe repair for pneumatic tires:
1. Remove the key from the key switch and ensure your vehicle is not in freewheel mode.
2. Elevate the side of the vehicle of which you are removing the tire. Place wooden blocks under the frame to elevate
the vehicle.
3. Remove the lug nuts and washers from the hub. See fi gure 26.
4. Remove the wheel from the hub.
5. Reassemble the rim halves.
6. Slide the wheel back onto the hub.
7. Reinstall the washers and then the lug nuts and tighten.
WARNING! Ensure that the axle key is properly installed into the axle slot when mounting the
wheel. If not installed securely, the braking system is disengaged which may cause personal
injury and/or product damage may result.
8. Infl ate pneumatic tires to the psi/bar/kPa air pressure rating indicated on each tire.
9. Remove the block from beneath the vehicle.
WHEEL REPLACEMENT
If your vehicle is equipped with pneumatic tires and
you have a fl at tire, you can have the tire replaced.
Contact your authorized dealer for information
regarding replacement wheels for your vehicle.
WARNING! Wheels on your vehicle
should only be serviced/replaced
by a qualifi ed technician.
WARNING! Completely defl ate
pneumatic tires before
dismantling the rim or attempting
repair.
WARNING! Be sure that the key is
removed from the key switch and
the vehicle is not in freewheel
mode before performing this
procedure.
WARNING! When changing a
pneumatic tire, remove only
the lug nuts, then remove the
wheel. If any further disassembly
is required, defl ate the tire
COMPLETELY or it may explode.
1. LUG NUTS
2. WASHERS
3. WHEEL
4. HUB

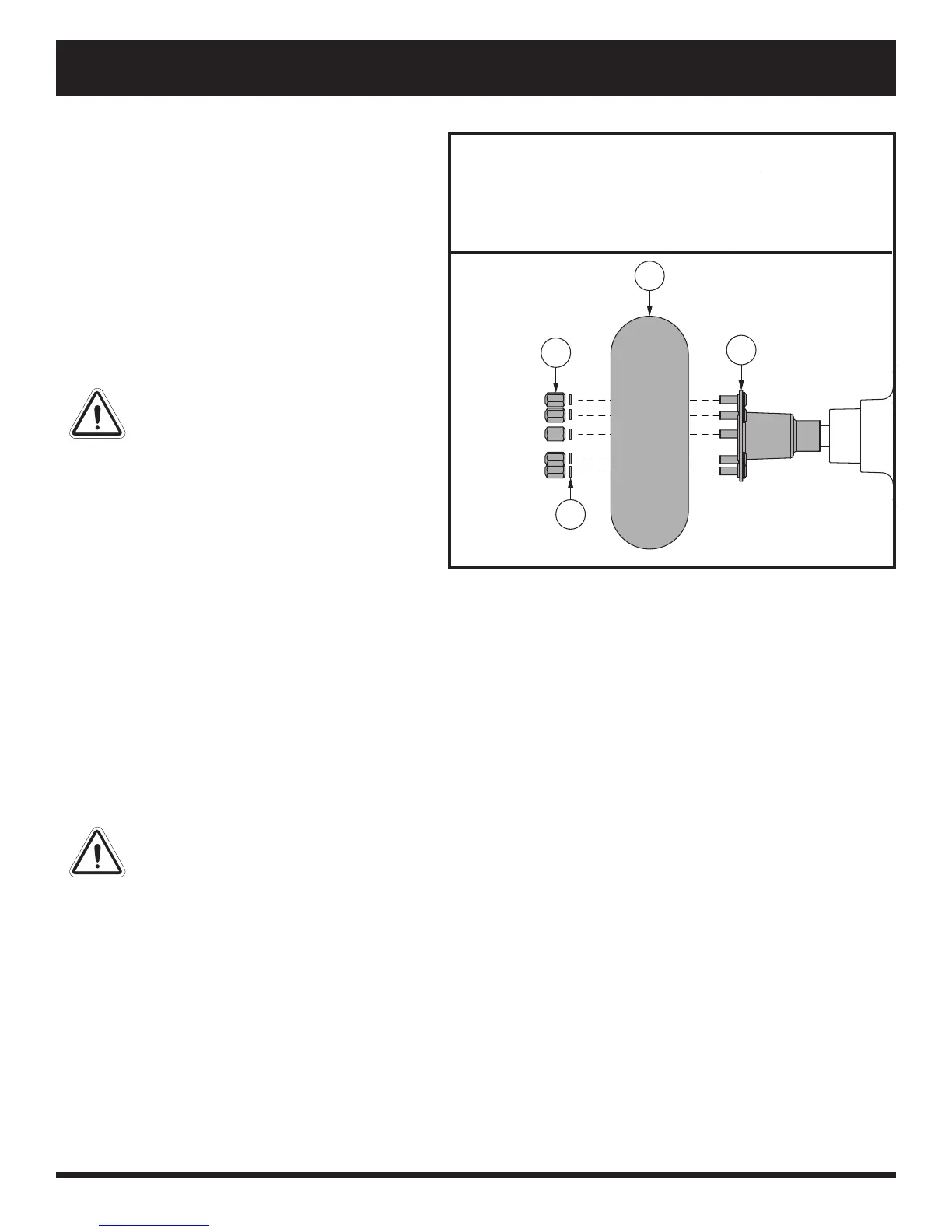

Figure 26. Wheel Removal
IDENTIFICATION KEY
3
1
2
4
