Primare I22/CD22 - Measured Performance and Specifications; Distortion and Clipping Analysis

Primare AB • Renvägen 1 • SE - 35245 Växjö • Sweden • Tel +46 470 729215 • www.primare.net
PRIMARE
REVIEW: I22 INTEGRATED AMPLIFIER AND CD22 CD PLAYER
Measured specifications
Effective power (8 ohms ) 2 x 105 W
Pulse power (8 ohms ) 2 x 105 W
Input sensitivity (nominal output power) 320 mV
S/N ratio at nominal power >103 dBA (produced)
S/N ratio for 1 W output > 83 dBA (produced)
Square signal distortion 1 kHz 0 %
No trace of distortion measured in our conditions
at 83 W.

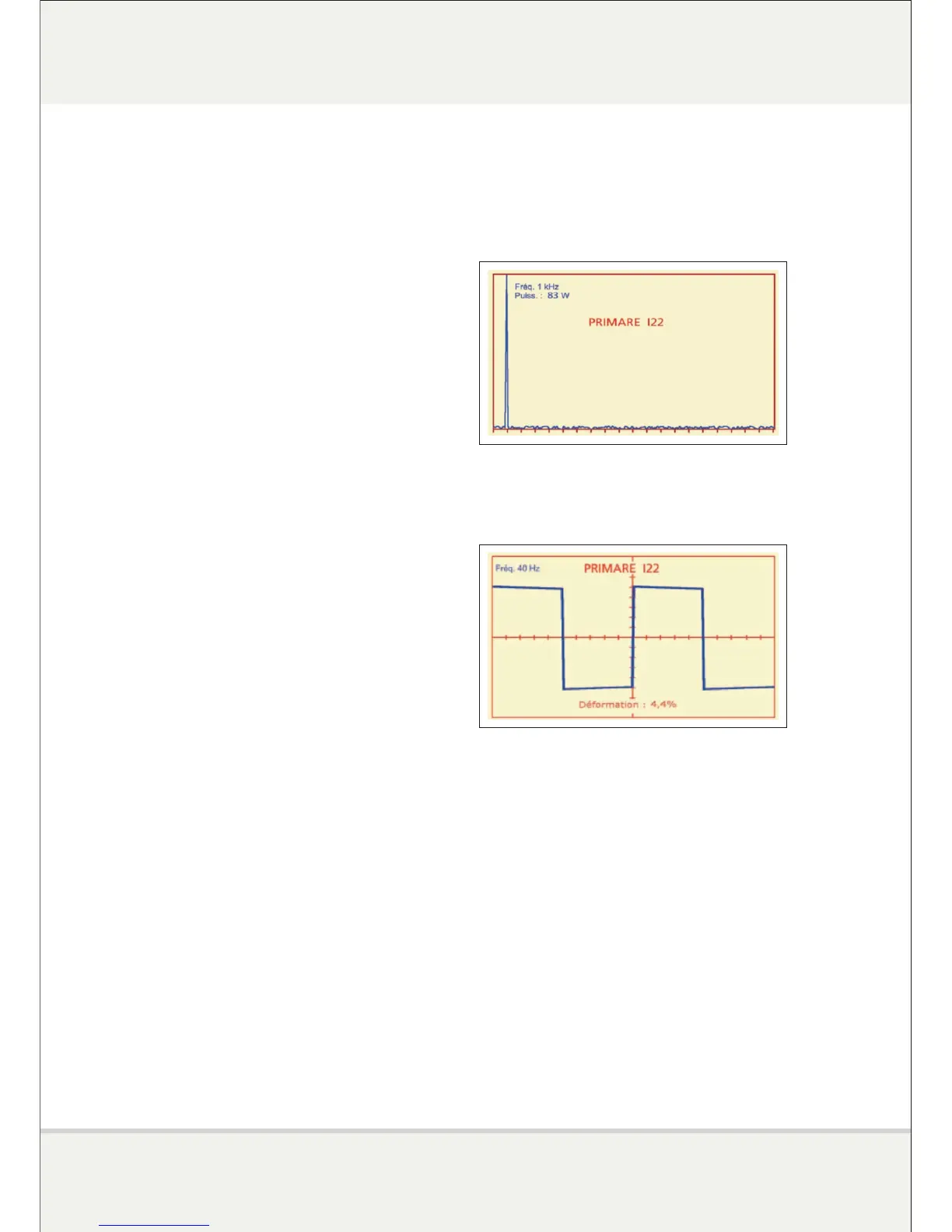

Spectrum of distortion at - 1 dB
Square signal at 40 Hz
Excellent result: Light filtering against the
continuous (very low distortion and non-existent
at 1 kHz).
No spectrum of distortion during clipping for class D amplifiers.
