18
8. Taking both ratchet springs and star ratchets apply a thin layer of ratchet grease across any contacting surfaces.
Once the ratchets and springs are lubricated up slide them of the axle in the correct order.
WARNING
It is vital that the star ratchets and springs are fitted with the correct orientation. If these are fitted incorrect it
may effect the performance of the hub and possible premature failure.
The springs must be orientated with the tapered end (smaller diameter) towards the star ratchets.
The star ratchets must be orientated with the engagement points facing one another.

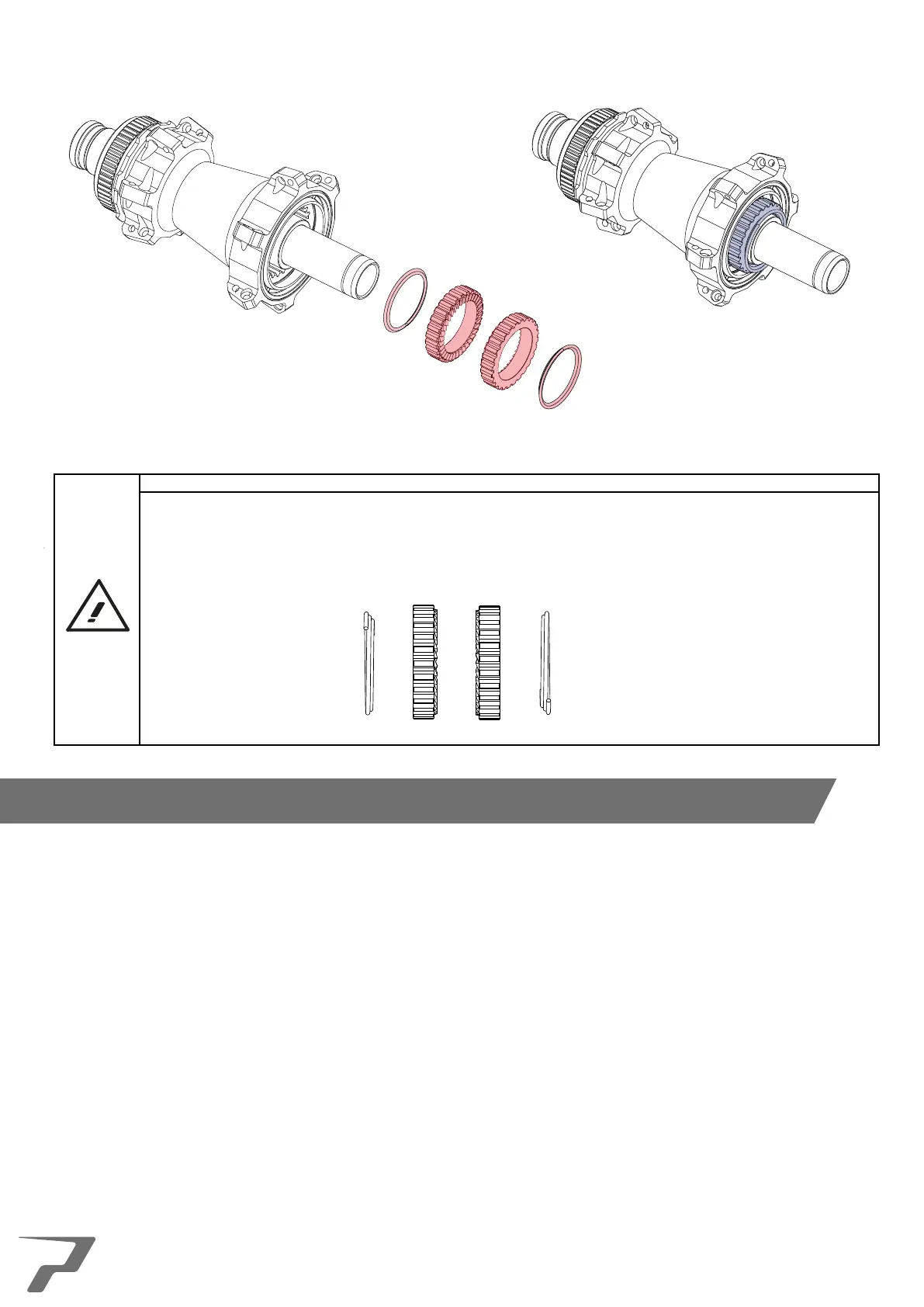

Image below illustrates the correct order and orientation.
This concludes the main assembly and bearing replacement of the hubshell. Place this to one side ready for the freehub to
be assembled to the hubshell later in the manual.
