Part # Description Quantity
1 Non Drive Side End Cap (Right) 1
2 O-Ring (Pre Fitted in End Caps) 1
3 Bearing Dust Cover 1
4 Non Drive Side Bearing 1
5 Hub Shell 1
6 Axle 1
7 Drive Side Bearing 1
8 Ratchet Washer 1
9 Ratchet Ring 1
10 Star Ratchet 2
11 Star Ratchet Bushing 1
12 Hubshell Seal 1
13 Star Ratchet Spring 2
14 C-Ring (Pre Fitted to Freehub) 1
15 Freehub 1
16 Freehub Bearing 2
17 Bearing Retaining Circlip 1
18 Freehub Bearing Spacer 1
19 Freehub Bearing Dust Cover 1
20 Dr
ive Side End Cap (Left) 1
21
Freehub Spacer (Only Required on HG
Freehubs for use with 10 Speed)
1

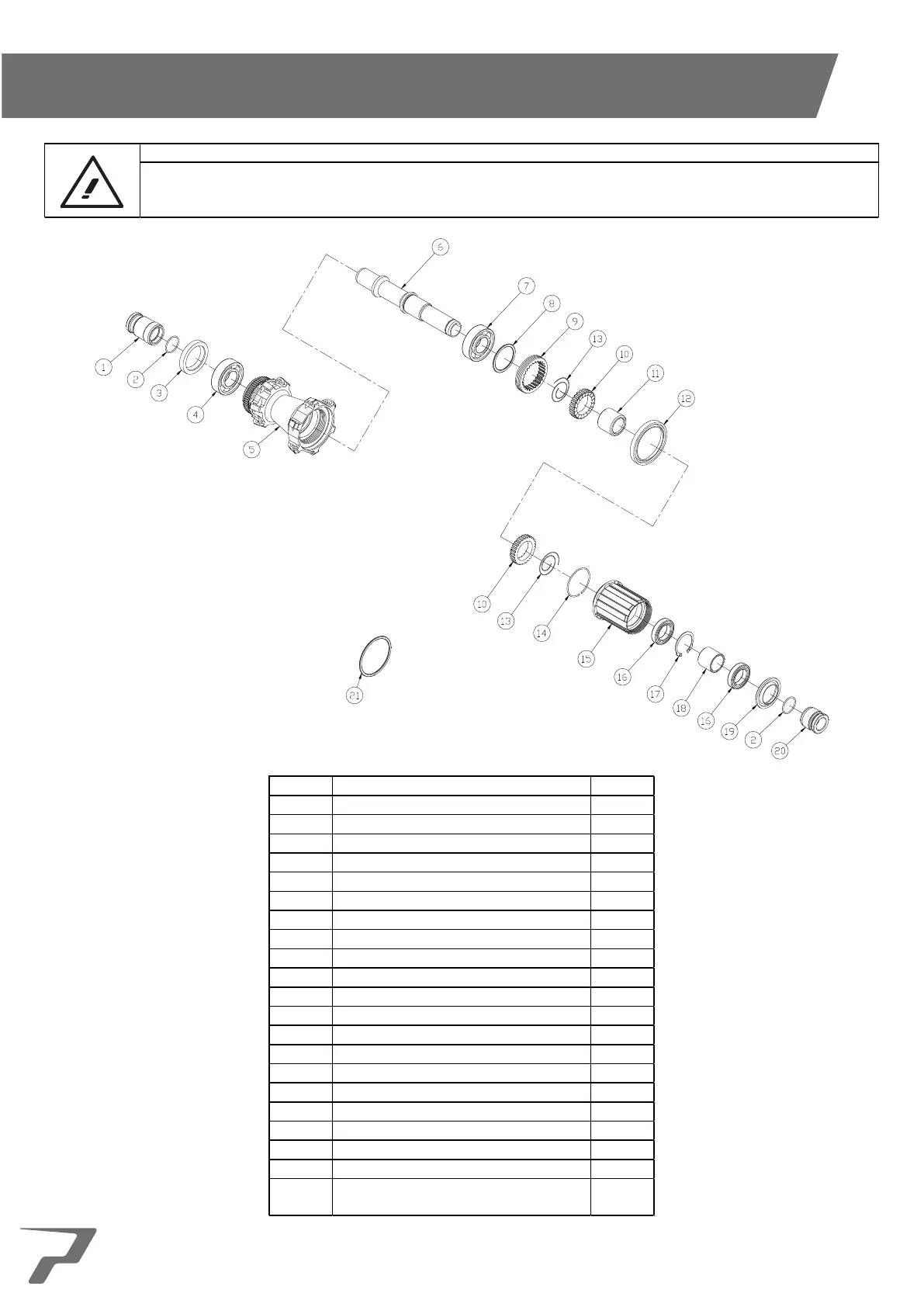

EXPLODED DIAGRAM
Please note that the below diagram is for illustration purposes only, The hubshell, endcaps and freehub design
may differ between models or spec. Diagram is used purely for aiding with showing part names and
descriptions that may be used throughout the guide.
