Replacing
Headlift & Ribbon Idler Gears
7
.1

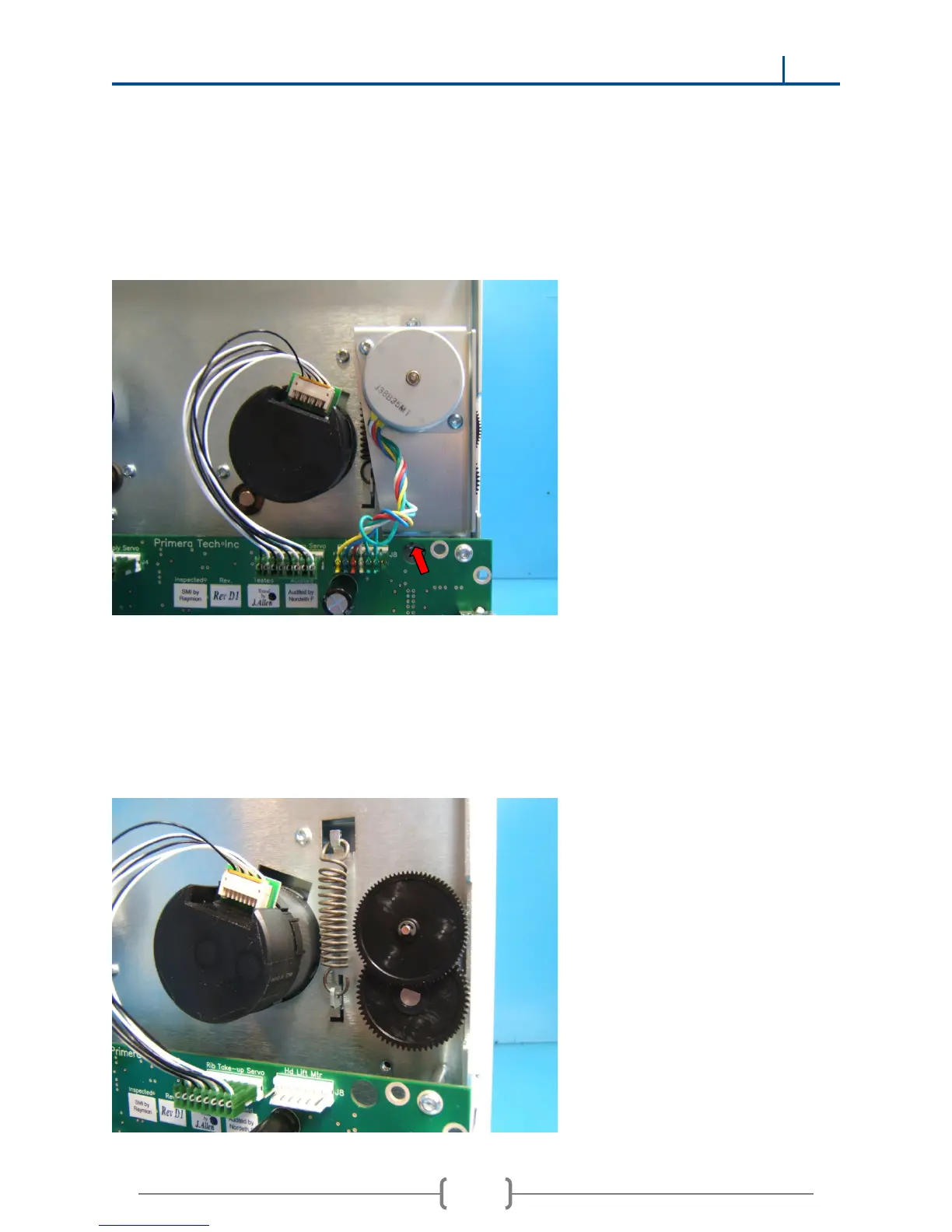

Remove right side cover. Remove two screws securing headlift motor bracket (use hole in
main board to access bottom screw).
7
.
2
Remove small retaining ring. Remove and replace one or both damaged gears. Replace
retaining ring. Reattach motor bracket. Be sure teeth on motor gear line up evenly with
plastic gear. Rotate with thumb to verify gears turn smoothly.
Signature Cassette Pri
nter
Service Manual
201
5
