Primera Signature Service Manual

11
8
▪

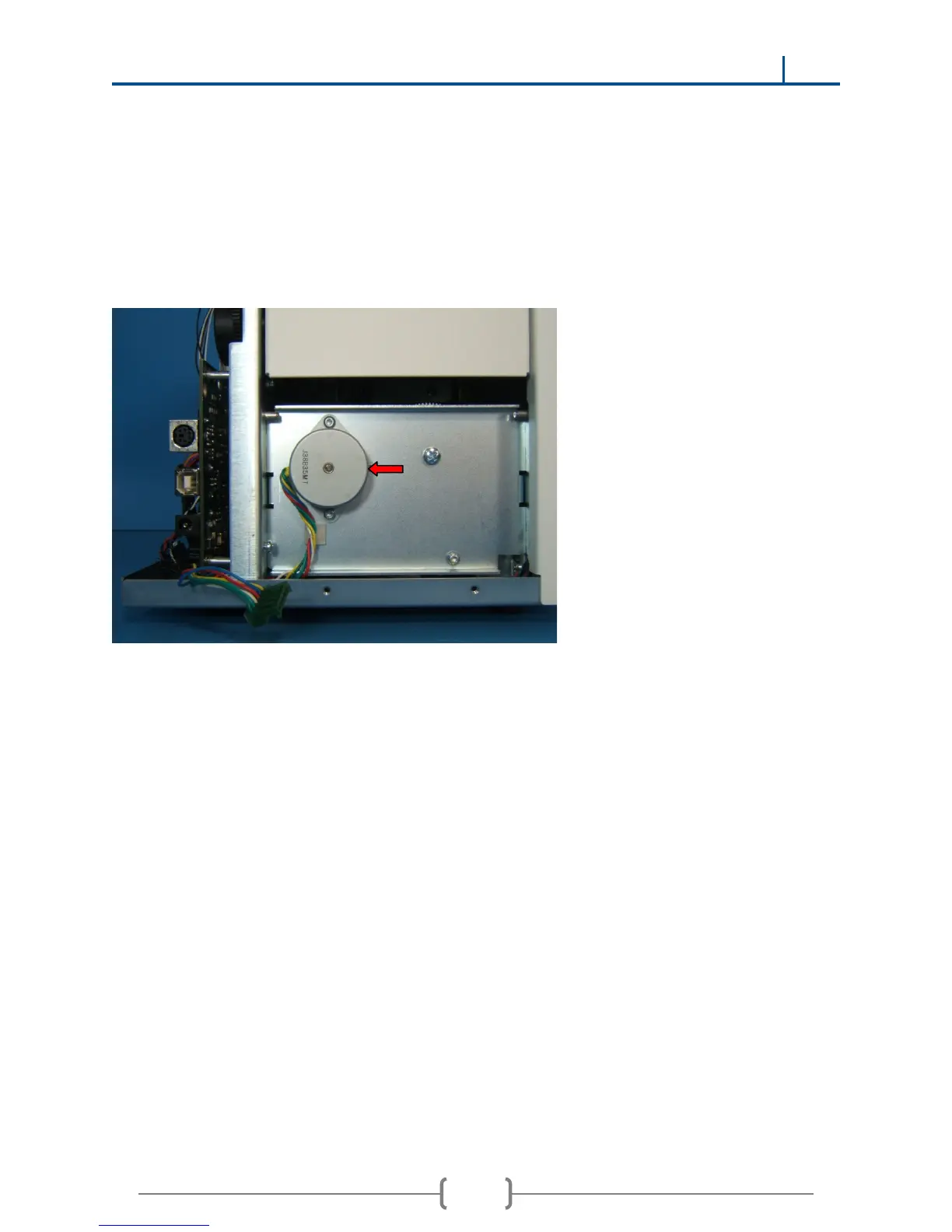

Replacing Carriage Rotation Motor
8
.1
Remove right side cover and rear panel. Remove 2 screws securing motor. Unplug motor
from main board and route cable through side plate. When attaching new motor, press to
the left while tightening screws to ensure gears do not bind.
Signature Cassette Printer
Service Manual
201
5
