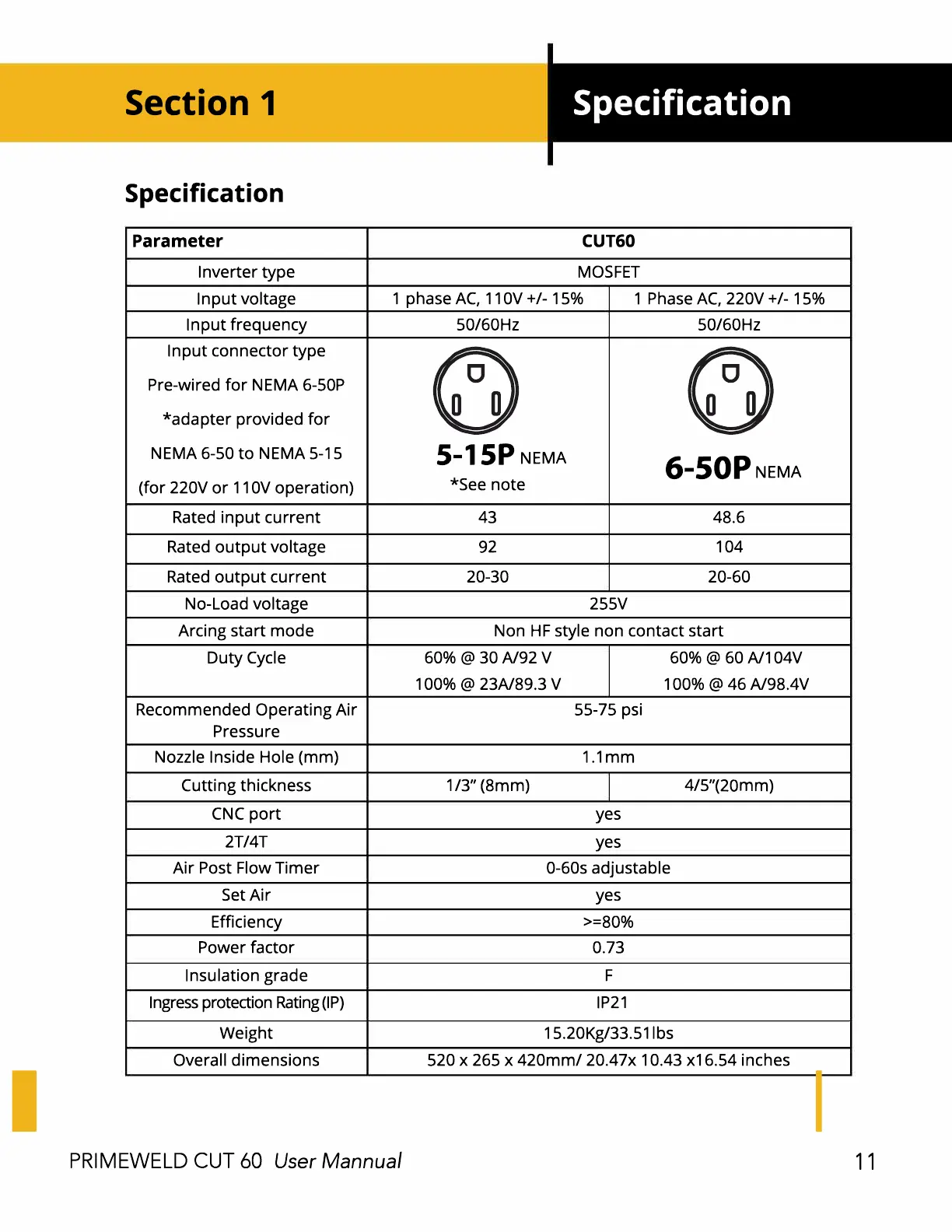

PrimeWeld CUT60 - Technical Specifications

Section 1
Specification
Parameter
Inverter type
Input voltage
Input frequency
Input connector type
Pre-wired for NE-MA 6-50P
*adapter provided for
NEMA 6-50 to NEMA 5-15
(for 220V or 1IOV operation)
Rated input current
Rated output voltage
Rated output current
No-Load voltage
Arcing start mode
Duty Cycle
Recommended Operating Air
Pressure
Nozzle Inside Hole (mm)
Cutting thickness
CNC port
2T/4T
Air Post Flow Timer
Set Air
Efficiency
Power factor
Insulation grade
Ingress protection Rating (IP)
Weight
Overall dimensions
1 phase AC, Ilov +/-
50/60Hz
00
5-15P NEMA
*See note
43
92
20-30
Specification
CUT60
MOSFET
1 Phase AC, 220V +/- 15%
50/60Hz
00
6-50PNEMA
48.6
104
20-60
255V
Non HF style non contact start
@ 30 A/92 V
100% @ 23A/89.3 V
(8mm)
@ 60 A/104V
100% @ 46 A/98.4V
55-75 psi
1.1 mm
yes
yes
0-60s adjustable
yes
0.73
IP21
15.20Kg/33.51 lbs
520 x 265 x 420mm/ 10.43 xl 6.54 inches
PRIMEWELD CUT 60 User Mannual
11
