PrimeWeld CUT60 - Section 2 Quick Setup and Use Guide; Front Panel Features and Controls

Section 2

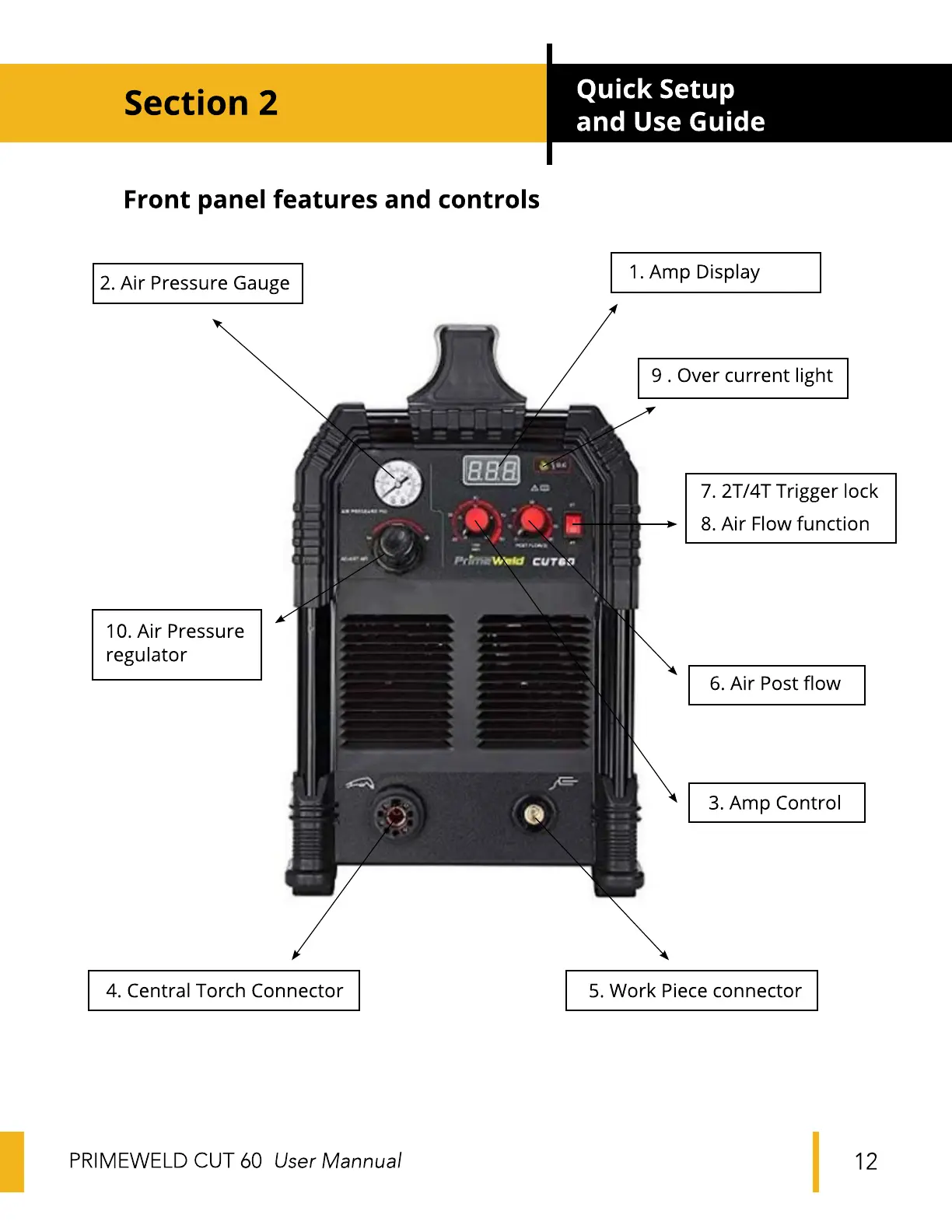

Front panel features and controls
2. Air Pressure Gauge
10. Air Pressure
regulator
4. Central Torch Connector
PRIME-WELD CUT 60 User Mannual
cur•o
Quick Setup
and Use Guide
1. Amp Display
9 . Over current light
7. 2T/4T Trigger lock
8. Air Flow function
6. Air Post flow
3. Amp Control
5. Work Piece connector
12
