SETUP

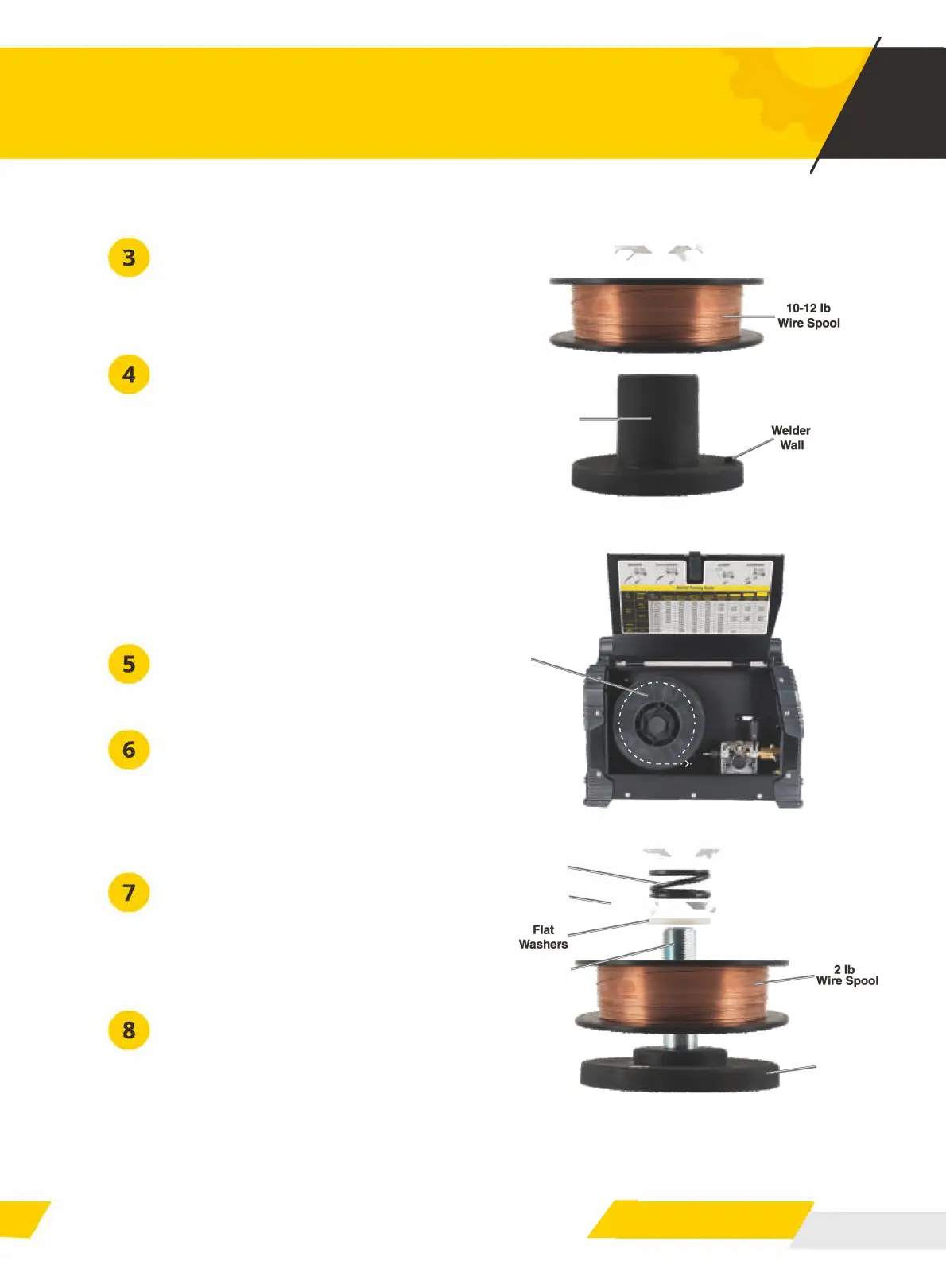

10-12 Pound Wire Spool
Installation:
Remove the Spool Knob.
Place the new Wire Spool over the
Adapter and line up pin on Adapter
with hole in Spool. To prevent wire
feed problems, set the Spool so that
it will unwind counterclockwise.
Notice: If wire Spool can spin freely,
Spool Knob is too loose. This will
cause the welding wire to unravel and
unspool which can cause tangling and
feeding problems.
Screw the Spool Knob into
the Spool Adapter.
2 Pound Wire Spool Installation:
Remove the Spool Knob, Fastening
Nut, Spring, Tab Washers and Flat
Washers and Spool Adapter.
Place the new Wire spool over the
Spool Spindle as illustrated in the
picture. prevent wire feed
problems, set the Spool so that
it will unwind counterclockwise.
Replace the Flat Washer, Tab
Washer and Spring over the Spool
Spindle and secure Spool in place
with the Fastening Nut.
b
Washers
Notice: If wire Spool can spin freely, Fastening Nut is too loose. This
will cause the welding wire to unravel and unspool which can cause
tangling and feeding problems.
