SETUP

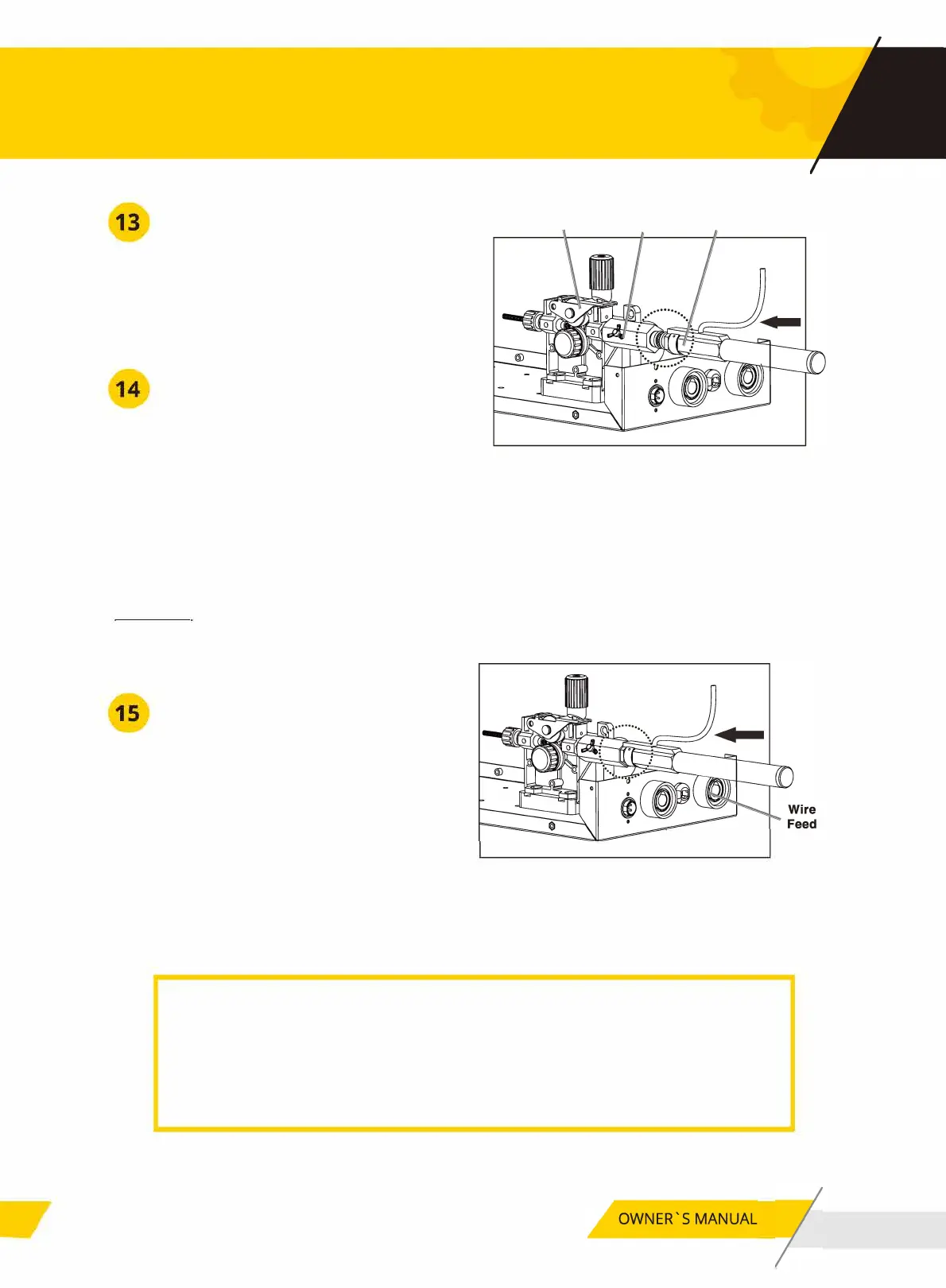

Loosen the Knob on the Wire
Feed mechanism, then insert the
Gun Cable Connector through
the hole on the Welder front and
into the socket on the Wire Feed.
Ensure that the Gun Cable
Connector is full inserted into
the socket on the Wire Feed
mechanism as shown. No O-ring
should be visible. Tighten the Knob
securely. If Connector is not fully
inserted, the gas connection will
leak, preventing shielding gas from
reaching the welding arc.
NOTICE:
prevent the damage, do
not overtighten the Knob.
Connect the Wire Feed Control
Cable to the Wire Feed Control
Socket located on the front of
the machine. Press it in until the
collar snaps into place. Note that
the plug on the Cable fits into
socket in one specific orientation
only.
To disconnect it, pull the collar
back first.
IMPORNT
Securely hold onto the end of the welding wire and keep
tension on it during the following steps. If this is not done,
the welding wire will unravel and unspool which can cause
tangling and feeding problems.
