14 INSTALLATION AND MAINTENANCE MANUAL PUBLICATION DATE Jan 06 516574

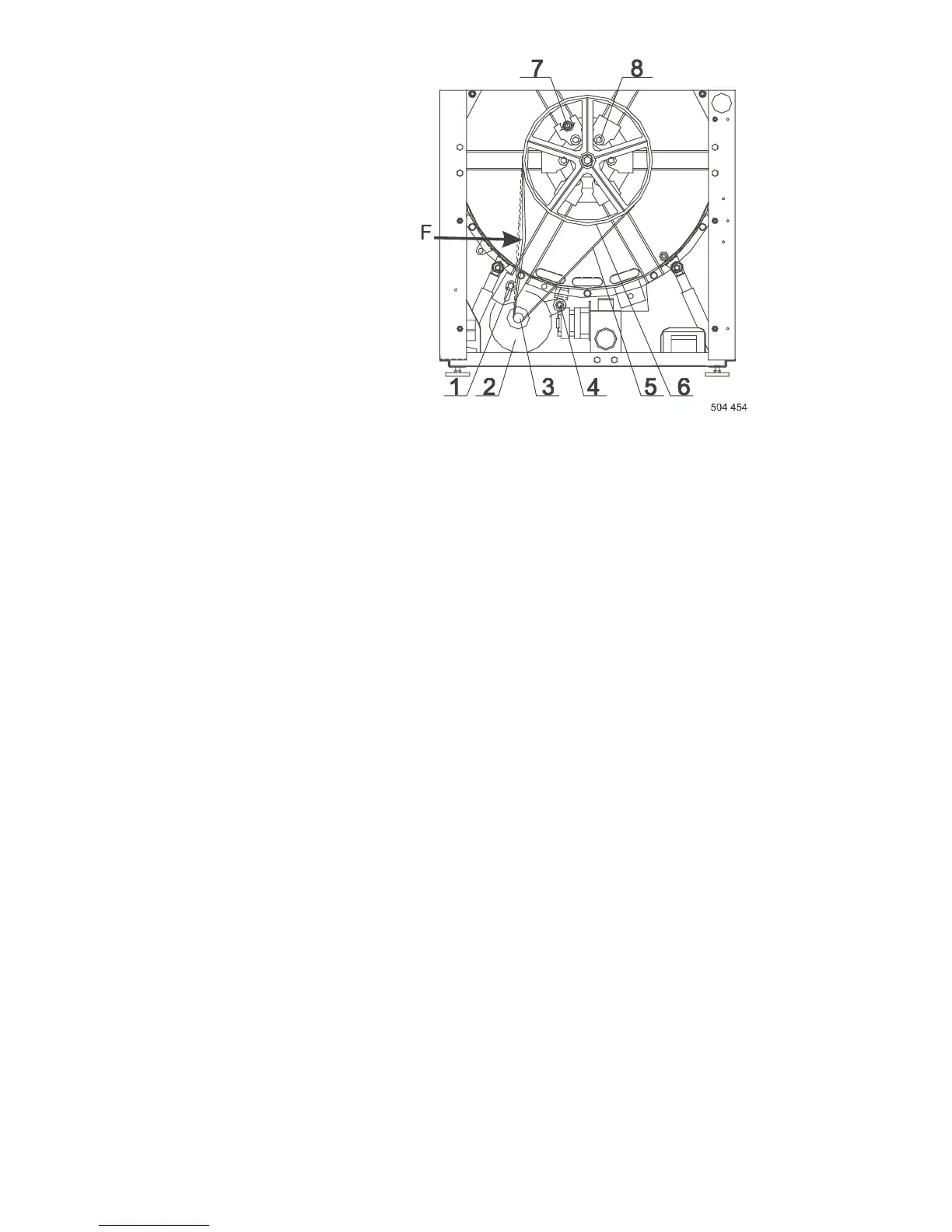

1. Securing bolt with nut
2. Motor
3. Motor pulley
4. Motor pivot
5. Belt
6. Drum pulley
7. M10 bolt joint of the hub
8. M8 bolt joint of the hub
Fig.5.2.C Machine drive
FUSES
Fuses FU1, FU2 for controlling circuits have value 6.3 A - 250 V. The fuses are accessible from the machine rear,
(fig.3.1., pos.15).
