Primus C 6 - Page 6

516574 PUBLICATION DATE Jan 06 INSTALLATION AND MAINTENANCE MANUAL 5
6 kg / 13 lb 7,5 kg / 16,5 lb
1. Door open push button
2. F push button
3. START push button
4. Card of wash programs
5. LED of cycle indicators
6. LED of program display
7. LED of remaining time display
8. LED of option temperature display
9. Tub ventilation
10. Connection of cold water
11. Connection of hot water
12. „Program/run“ mode push button
13. Serial plate
14. Fuses
15. Electrical connection of the machine
16. Plug
17. Hose orifice of the version with drain pump
18. Drain of the version with drain valve
19. Adjustable leg
20. Soap hopper

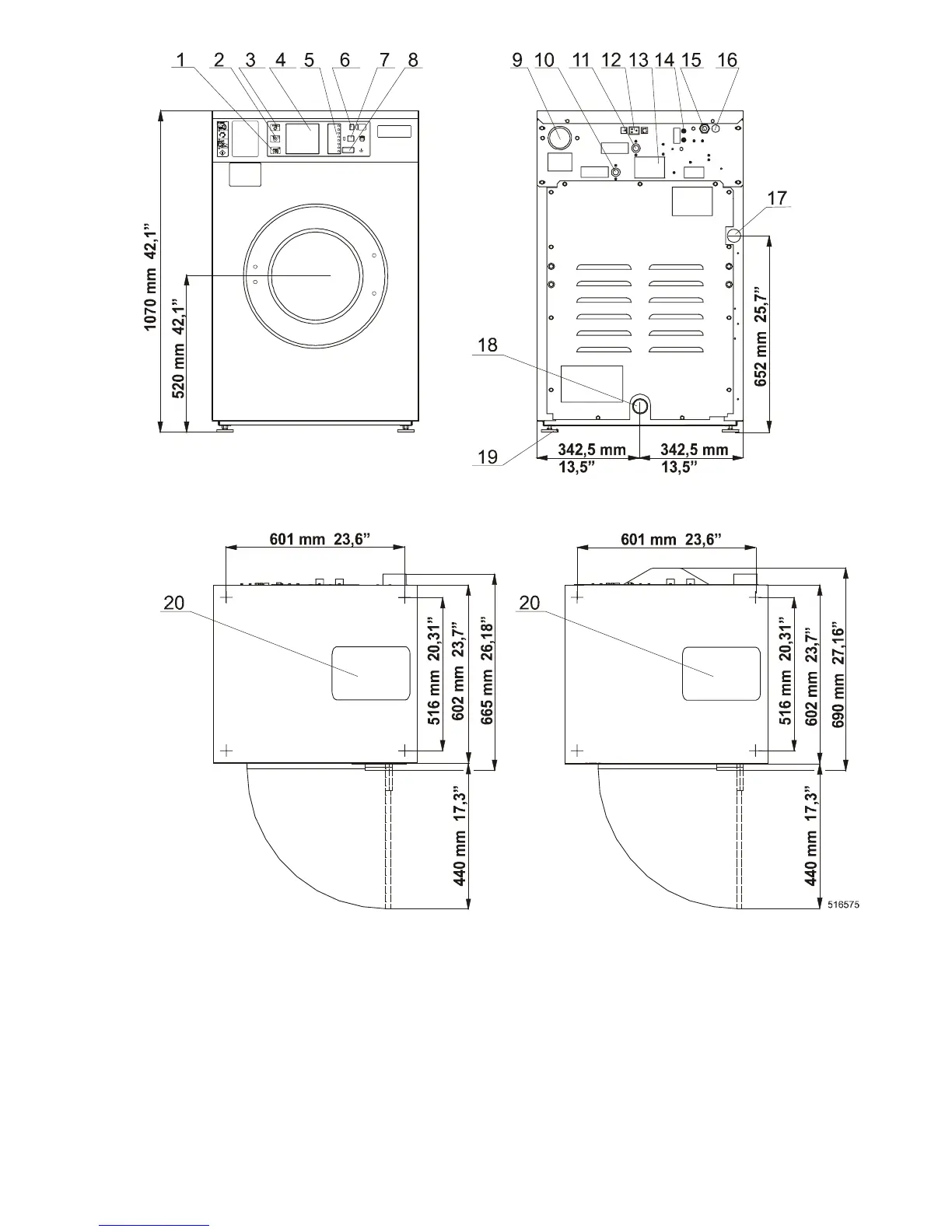

Fig. 3.1. Dimensions and components of the machine
