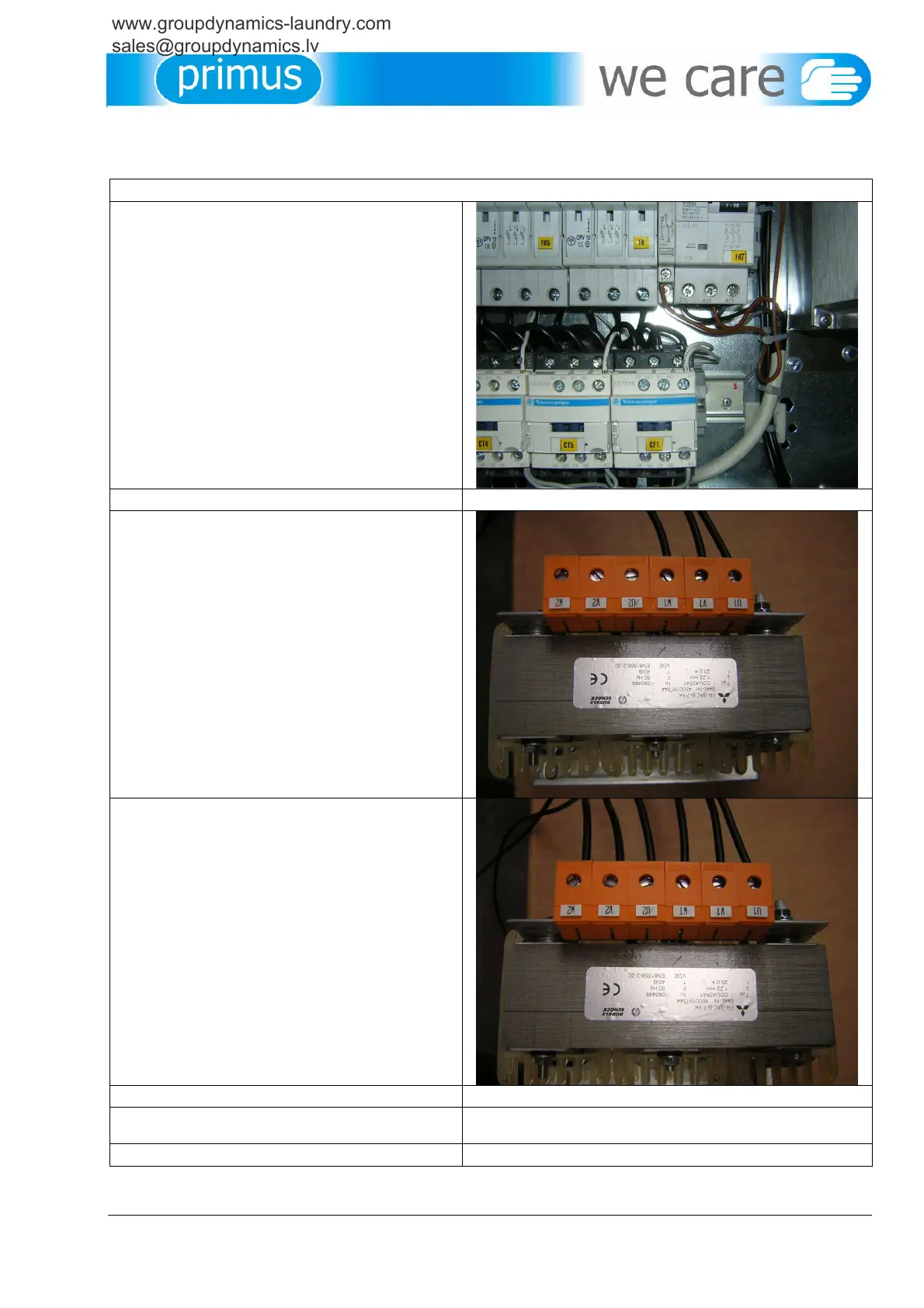

525928 Instruction AC-reactor FS16-55 RS27-35 P12/15
Disconnect the 3 wires (normally black) from the
input side of the inverter contactor (CFI).
Connect these 3 wires to terminals U1, V1 and
W1 of the AC-reactor. You migth have to replace
the original wires by longer ones.
Connect terminals U2,V2,W2 to the inverter
contactor (input side) by new wires, to the same
terminals where you have disconnected the 3
other wires
Make sure to attach and connect all wirings so
that they can not be damaged by vibrations.
